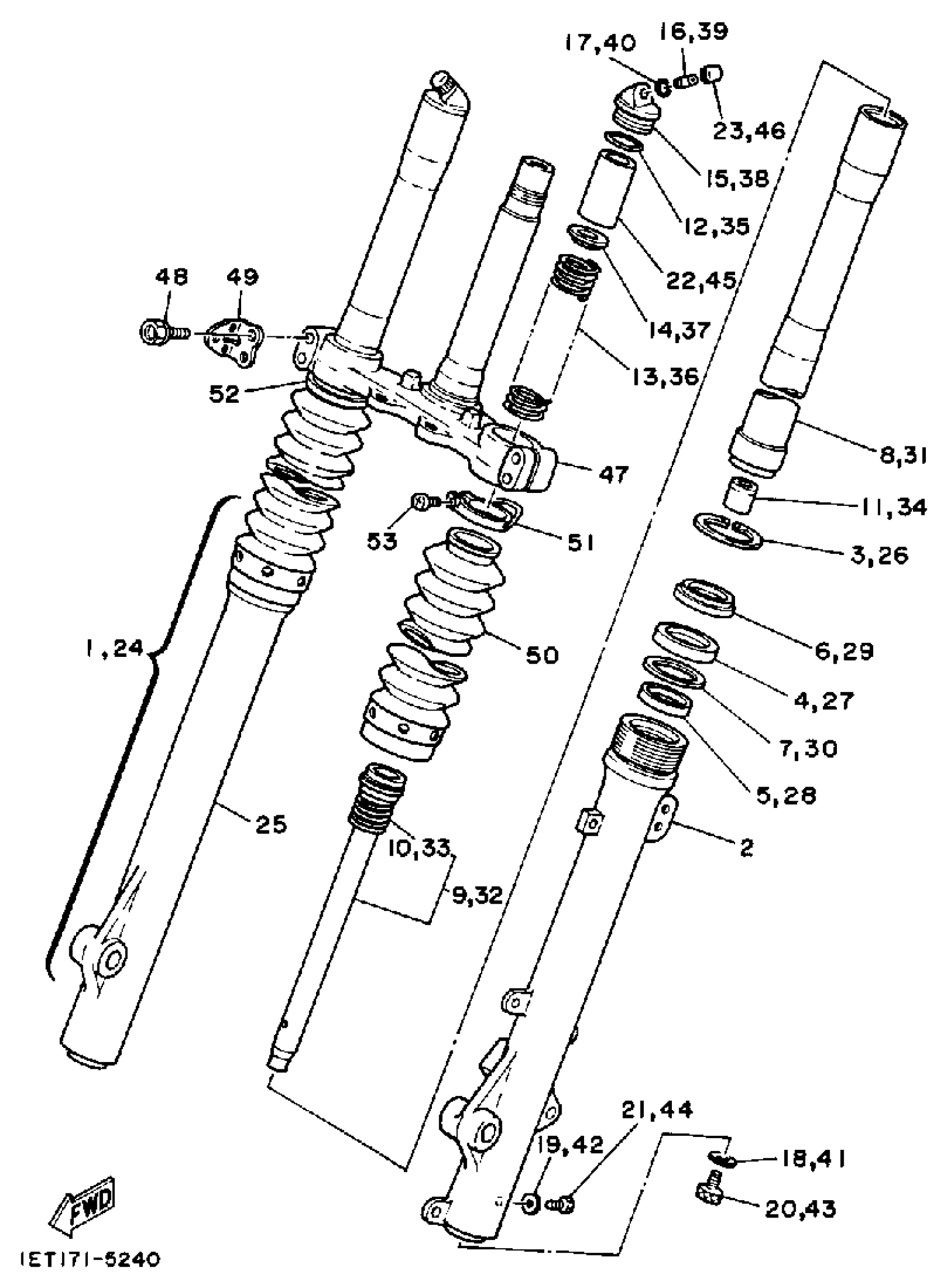

Yamaha XT350SC (XT350 CA) 1986 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L.H)

55V-23102-00-00

Unavailable

2

. TUBE, OUTER (LEFT)

48Y-23126-00-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

OIL SEAL

48Y-23145-00-00

$30.99

5

METAL, SLIDE 1

30X-23125-00-00

$29.99

6

SEAL, DUST

48Y-23144-00-00

$25.99

7

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

8

. INNER TUBE COMP1

30X-23110-00-00

Unavailable

9

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

Unavailable

10

.. SPRING, REBOUND

2X7-23151-00-00

Unavailable

11

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

12

O-RING

1W1-23114-L0-00

$9.99

13

. SPRING, FRONT FORK

30X-23141-00-00

Unavailable

14

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

15

. BOLT, CAP

33M-23111-00-00

Unavailable

16

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

17

O-RING

3J2-23147-00-00

Unavailable

18

GASKET

509-23158-L0-00

Unavailable

19

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

21

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

22

SPACER

4V5-23118-L1-00

Unavailable

23

CAP, AIR VALVE

509-23184-L0-00

Unavailable

24

FRONT FORK ASSEMBLY (RH)

55V-23103-00-00

Unavailable

25

. TUBE, OUTER (RIGHT)

48Y-23136-00-00

Unavailable

26

RING, SNAP

4A1-23156-00-00

$5.49

27

OIL SEAL

48Y-23145-00-00

$30.99

28

METAL, SLIDE 1

30X-23125-00-00

$29.99

29

SEAL, DUST

48Y-23144-00-00

$25.99

30

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

31

. INNER TUBE COMP1

30X-23110-00-00

Unavailable

32

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

Unavailable

33

.. SPRING, REBOUND

2X7-23151-00-00

Unavailable

34

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

35

O-RING

1W1-23114-L0-00

$9.99

36

. SPRING, FRONT FORK

30X-23141-00-00

Unavailable

37

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

38

. BOLT, CAP

33M-23111-00-00

Unavailable

39

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

40

O-RING

3J2-23147-00-00

Unavailable

41

GASKET

509-23158-L0-00

Unavailable

42

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

43

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

44

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

45

SPACER

4V5-23118-L1-00

Unavailable

46

CAP, AIR VALVE

509-23184-L0-00

Unavailable

47

UNDER BRACKET COMP.

55V-23340-00-00

Unavailable

48

BOLT, AXLE HOLDER

5X6-23128-L0-00

Unavailable

49

BRACKET, REFLECTOR 1

49R-85112-00-00

Unavailable

50

BOOT, FRONT FORK

30X-23191-00-00

Unavailable

51

. BAND

48Y-23192-00-00

Unavailable

52

BAND, BOOT

341-92090-60-00

Unavailable

53

SCREW, BOOT BAND

1W4-23194-L0-00

Unavailable
