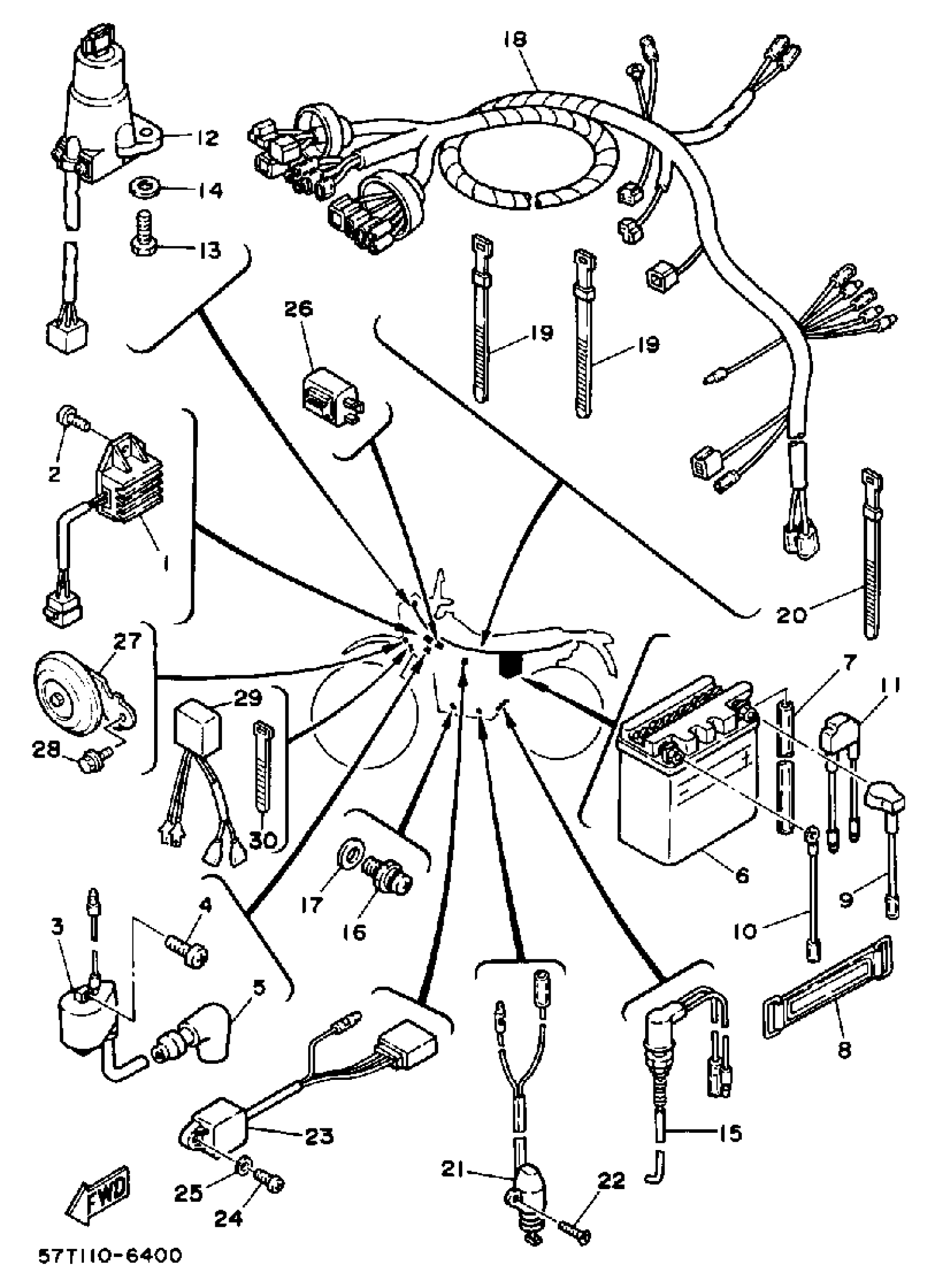

Yamaha XT350SC (XT350 CA) 1986 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSEMBLY

33G-81960-60-00

Unavailable

2

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

3

IGNITION COIL ASSY

3SR-82310-10-00

Unavailable

4

SCREW PAN HEAD

98580-06020-00

$8.49

5

PLUG CAP ASSY

4VW-82370-00-00

$69.99

6

YB3LB YUASA BATTERY

YB3-LB000-00-00

Unavailable

7

HOSE (L1500)

90445-084J0-00

$18.99

8

BAND,BATTERY

7H3-82131-00-00

$17.49

9

WIRE, PLUS LEAD

1M1-82115-00-00

Unavailable

10

WIRE, LEAD

558-82116-00-00

Unavailable

11

CIRCUIT BREAKER

3J0-82180-00-00

Unavailable

12

MAIN SWCH STRGLCK

5R2-82501-01-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

STOP SWITCH ASSEMBLY

30X-82530-02-00

Unavailable

16

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

18

WIRE HARNESS ASSEMBLY

42U-82590-51-00

Unavailable

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

20

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

21

SWICH, SIDE STAND

5Y1-82566-00-00

Unavailable

22

SCREW, FLAT

98707-05020-00

Unavailable

23

CONTROL UNIT ASSEMBLY

4Y3-85590-M0-00

Unavailable

24

SCREW, PAN

98507-06014-00

Unavailable

25

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

26

FLASHER RELAY ASSY

30X-83350-20-00

Unavailable

27

HORN

30X-83371-20-00

Unavailable

28

BOLT, FLANGE

95817-06010-00

Unavailable

29

. CONDENSER 1

57T-81325-00-00

Unavailable

30

BAND

1UA-82591-00-00

Unavailable
