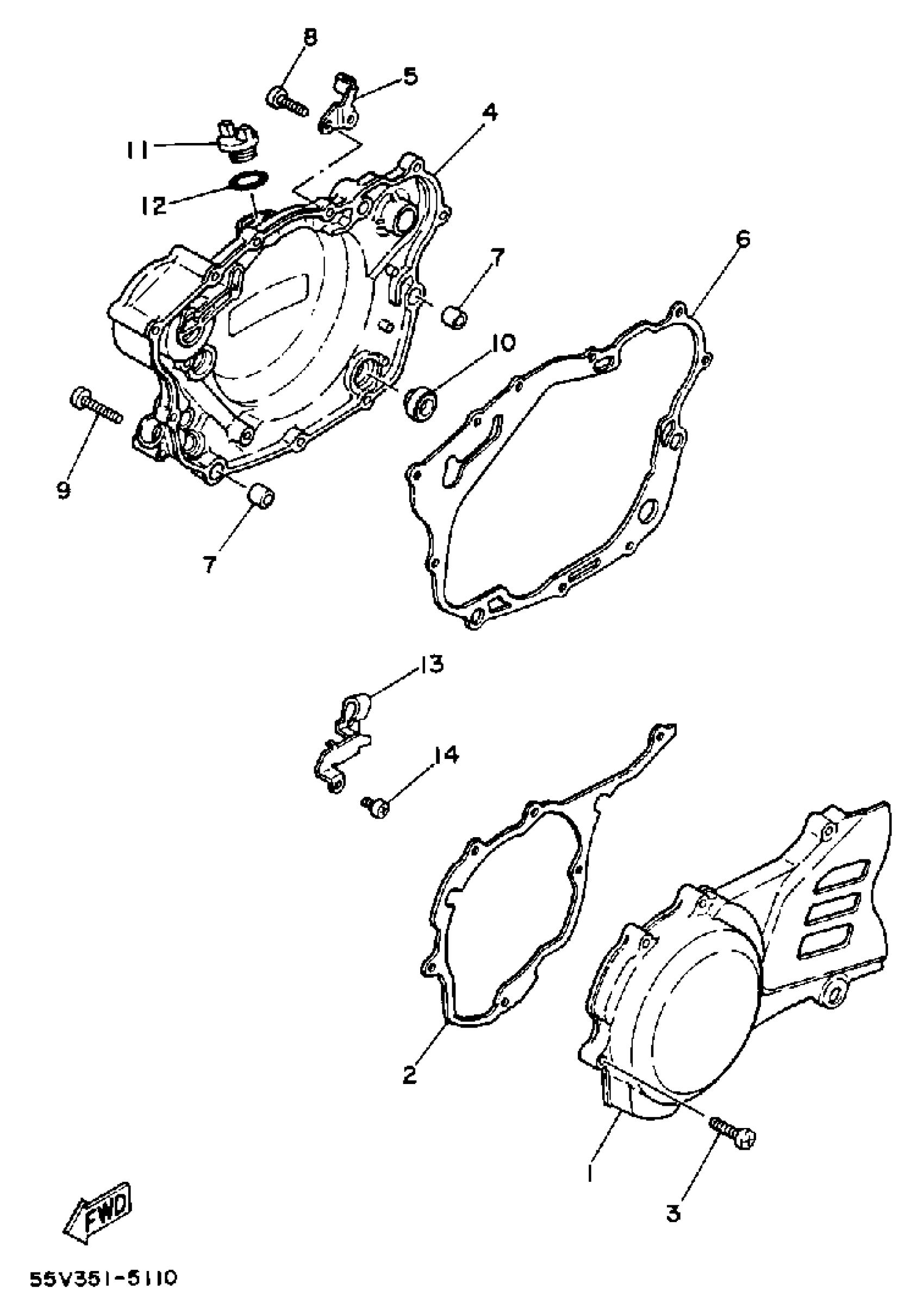

Yamaha XT350SC (XT350 CA) 1986 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE LH

30X-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4EL-15451-00-00

$25.99

3

SCREW, PAN

98517-06030-00

Unavailable

4

COVER, CRANKCASE 2

55V-15421-01-00

Unavailable

5

HOLDER

30X-15378-00-00

Unavailable

6

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

$24.99

7

PIN, DOWEL

99530-12016-00

$4.89

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

SCREW, PAN

98507-06035-00

$8.49

10

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

11

PLUG, OIL

3Y1-15363-10-00

$18.49

12

O-RING (646)

93210-19123-00

Unavailable

13

CLAMP

90462-08062-00

Unavailable

14

SCREW, PAN

98517-06012-00

$3.78
