Description

Price

1

CRANKCASE ASSY

55V-15100-03-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

STOPPER

55V-15668-00-00

$4.68

4

COLLAR

90387-17009-00

$15.99

5

COLLAR (30X)

90387-172J0-00

Unavailable

6

SCREW, PAN

98517-06030-00

Unavailable

7

SCREW, PAN

98507-06060-00

$7.99

8

SCREW, PAN HEAD

98507-06070-00

$9.99

9

OIL SEAL (30X)

93102-25305-00

$14.99

10

CLAMP(51Y)

90465-08277-00

Unavailable

11

COVER, CRANKCASE LH

30X-15411-01-00

Unavailable

12

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

13

PIPE, BREATHER 1

30X-11166-00-00

Unavailable

13

PIPE, BREATHER 1

56R-11166-00-00

Unavailable

14

CLIP (371)

90467-14015-00

$8.49

15

PLATE, BEARING COVER

30X-15383-00-00

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable

17

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

18

SCREW, BIND(2TV)

98980-06008-00

Unavailable

19

GASKET

214-11198-01-00

Unavailable

20

PIN, DOWEL

99530-14016-00

Unavailable

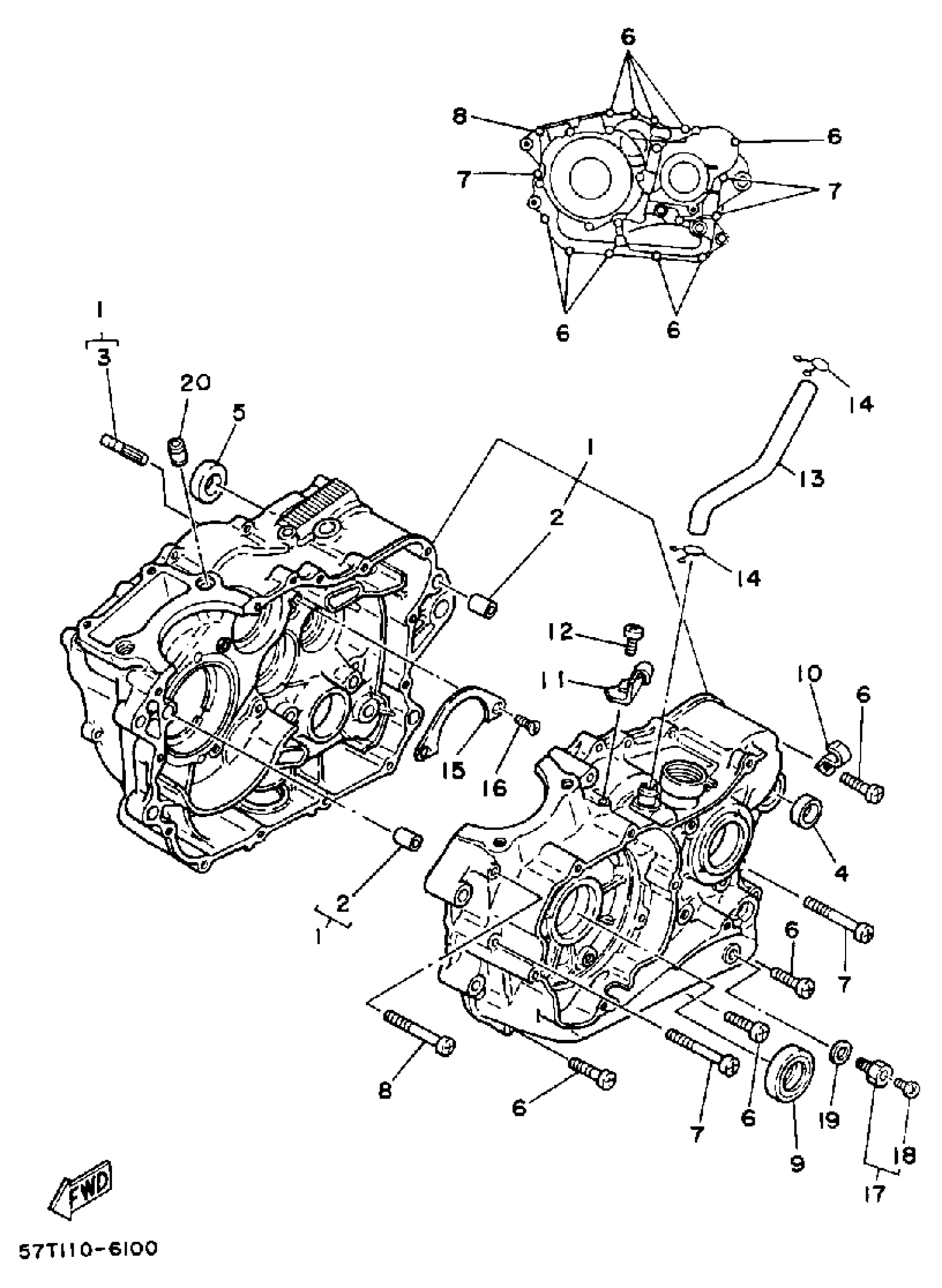

Yamaha XT350SC (XT350 CA) 1986 CRANKCASE Diagram

CRANKCASE ASSY

PIN, DOWEL

STOPPER

COLLAR

COLLAR (30X)

SCREW, PAN

SCREW, PAN

SCREW, PAN HEAD

OIL SEAL (30X)

CLAMP(51Y)

COVER, CRANKCASE LH

SCREW, PAN HEAD(3TJ)

PIPE, BREATHER 1

PIPE, BREATHER 1

CLIP (371)

PLATE, BEARING COVER

SCREW, FLAT

PLUG, STRAIGHT SCREW(3FA)

SCREW, BIND(2TV)

GASKET

PIN, DOWEL
