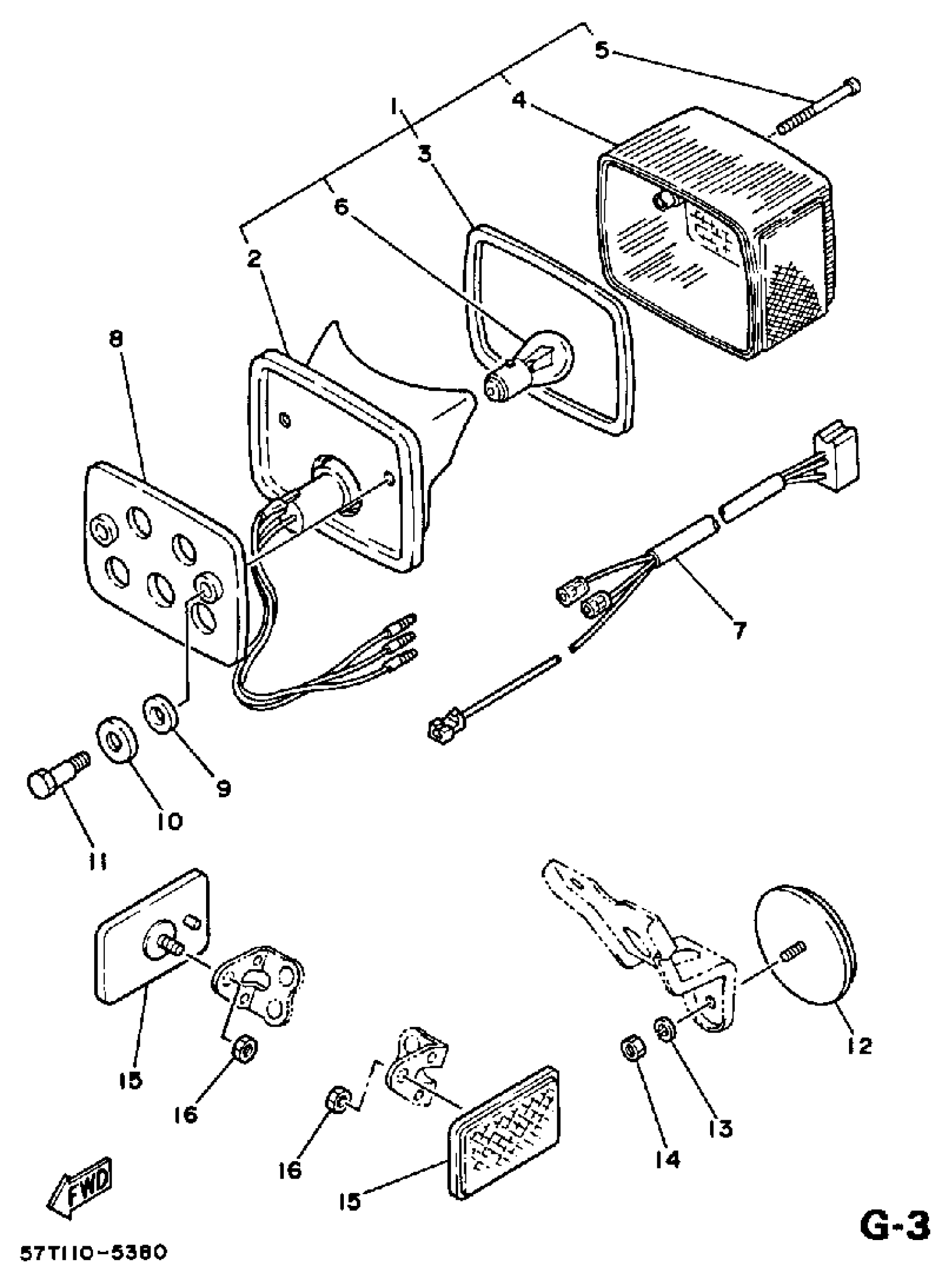

Yamaha XT350NC (XT350 CA) 1985 TAILLIGHT Diagram

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$110.99

. BASE, TAILLIGHT

1M1-84511-60-00

Unavailable

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

CORD, TAILLIGHT

42U-84517-00-00

Unavailable

DAMPER

4L0-84753-00-00

Unavailable

WASHER, PLATE (4L0)

90201-083A0-00

$9.49

WASHER, SPECIAL (498)

90209-08125-00

$11.49

BOLT 337847520000

90109-06005-00

$7.49

REFLECTOR, REAR 1

449-85131-02-00

$30.99

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

NUT, HEXAGON (663)

95380-05600-00

$8.49

FRONT REFLECTOR ASSY

23V-85110-00-00

$27.99

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
