2000 Yamaha XT350 CA (XT350MC) Starter Diagram

← All diagrams

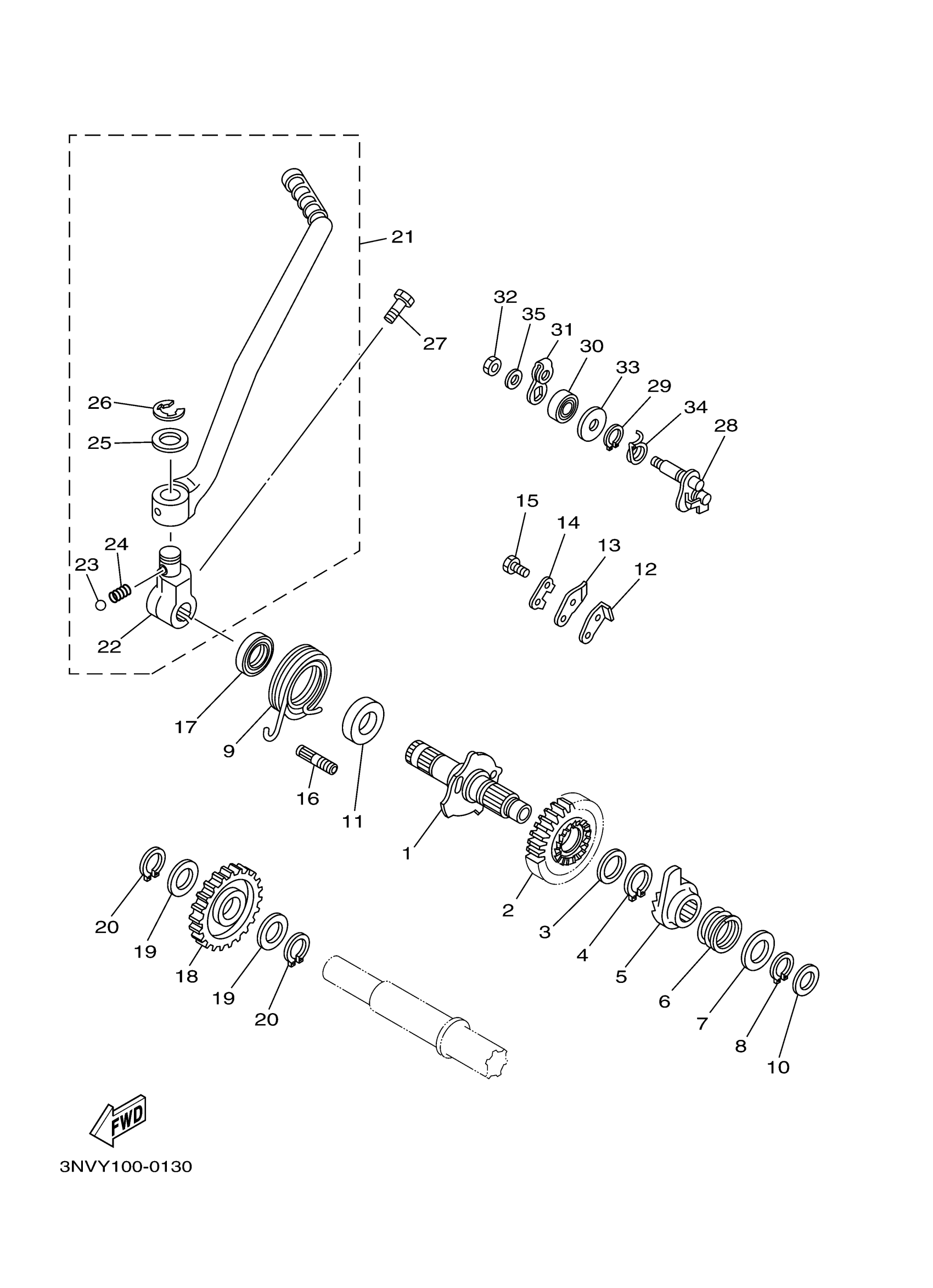

Find the part on the Starter diagram for your 2000 Yamaha XT350 CA (XT350MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha XT350 CA (XT350MC) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

30X-15660-01-00

1
Out of stock

2

GEAR, KICK

30X-15641-01-00

1
Out of stock

3

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

WHEEL, RATCHET

3Y1-15671-00-00

—
Out of stock

6

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

7

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

8

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

9

SPRING, TORSION

90508-324B5-00

—
Out of stock

10

WASHER (566)

90201-15701-00

1

$6.17

In stock

11

SPACER

90560-17239-00

1
Out of stock

12

STOPPER

2NX-15668-00-00

1
Out of stock

13

GUIDE, RATCHET WHEEL

2NX-15674-00-00

1

$8.71

In stock

14

WASHER, LOCK

214-15686-00-00

1

$6.38

In stock

15

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

16

STOPPER

55V-15668-00-00

—
Out of stock

17

OIL SEAL (15A)

93102-17263-00

—

$8.91

In stock

18

GEAR, KICK IDLE (27T)

30X-15651-01-00

1
Out of stock

19

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

20

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

21

KICK CRANK ASSY

30X-15620-01-00

—
Out of stock

22

. BOSS, KICK CRANK

30X-15621-01-00

1
Out of stock

23

BALL (12R)

93507-32031-00

—
Out of stock

24

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

25

WASHER (3XVC)

90201-153A1-00

—

$6.71

In stock

26

CIRCLIP

99006-10600-00

—

$6.91

In stock

27

BOLT, HEXAGON

97017-08030-00

—

$6.85

In stock

28

DECOMP. LEVER ASSEMBLY

30X-1561A-00-00

1
Out of stock

29

CIRCLIP(10W)

99009-10400-00

—

$3.91

In stock

30

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

—
Out of stock

31

LEVER, CABLE

30X-1561G-00-00

1
Out of stock

32

NUT(4MY)

95307-06800-00

—

$2.86

In stock

33

WASHER, PLATE (2W5)

90201-10614-00

—
Out of stock

34

SPRING, TORSION

90508-14630-00

1
Out of stock

35

WASHER(6TA)

92907-06600-00

—

$0.78

In stock
