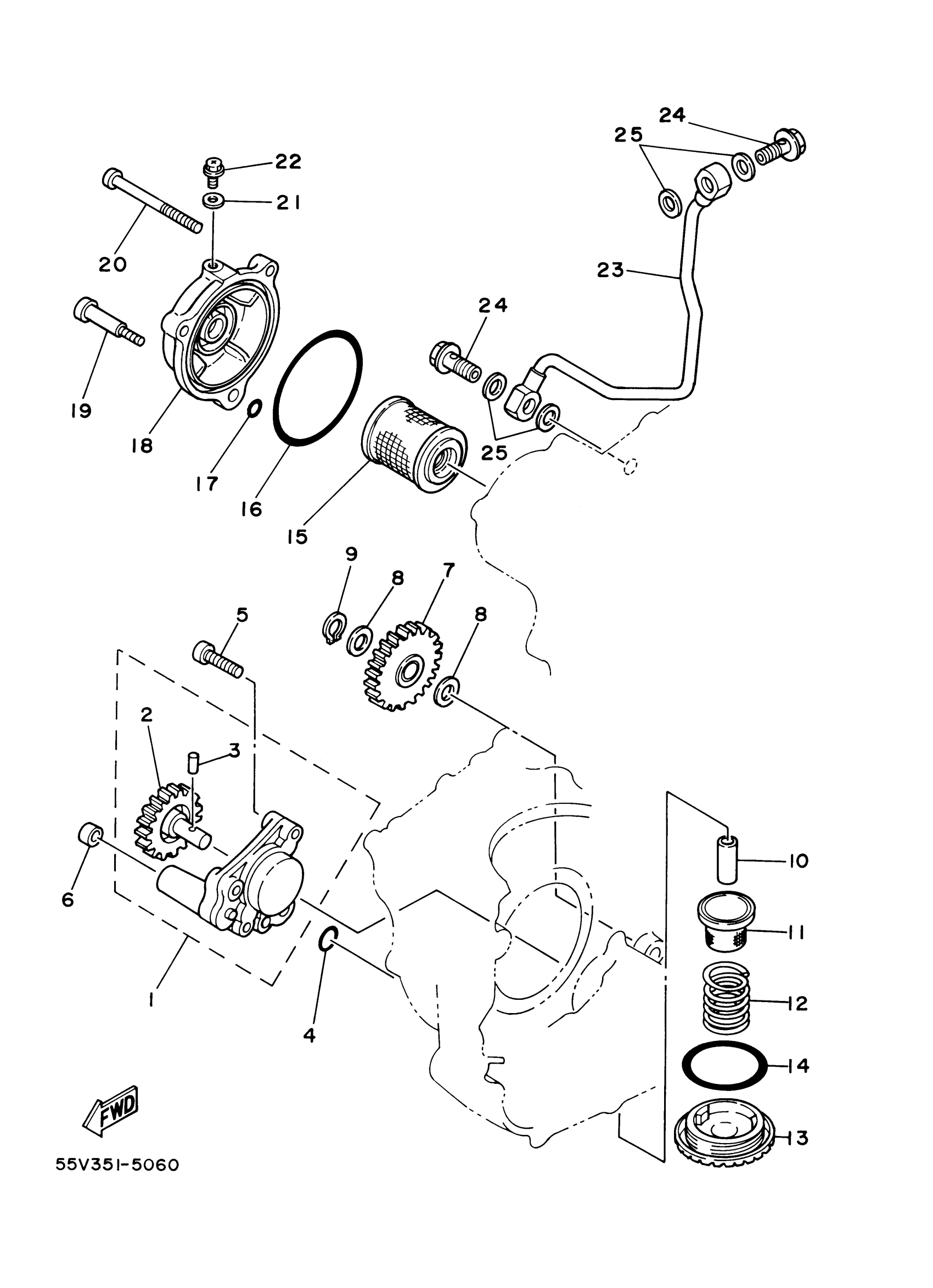

Yamaha XT350MC (XT350 CA) 5LJ1 2000 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

30X-13300-10-00

Unavailable

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

$11.99

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

O-RING (611)

93210-10096-00

$3.76

5

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

6

GASKET (3Y1)

90430-06156-00

$4.29

7

GEAR, OIL PUMP IDLE

30X-13341-00-00

Unavailable

8

WASHER, PLAIN(735)

90201-10119-00

Unavailable

9

CIRCLIP(10W)

99009-10400-00

$4.73

10

PIPE, OIL 1

2XK-13416-00-00

$7.99

11

STRAINER, OIL

51Y-13411-00-00

$37.99

12

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

13

PLUG, DRAIN

4HC-15351-00-00

$18.49

14

O-RING

93210-347A1-00

$7.49

15

OIL CLEANER ASSY

5H0-13440-09-00

$10.99

16

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

18

COVER, OIL ELEMENT

3DC-13447-00-00

Unavailable

19

BOLT (583 OIL DRAIN)

90109-06419-00

Unavailable

20

BOLT, SOCKET

91317-06065-00

Unavailable

21

GASKET

90430-05126-00

Unavailable

22

SCREW (583)

90149-05110-00

Unavailable

23

PIPE, DELIVERY 1

55V-13161-01-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

Unavailable

25

GASKET

90430-10188-00

Unavailable
