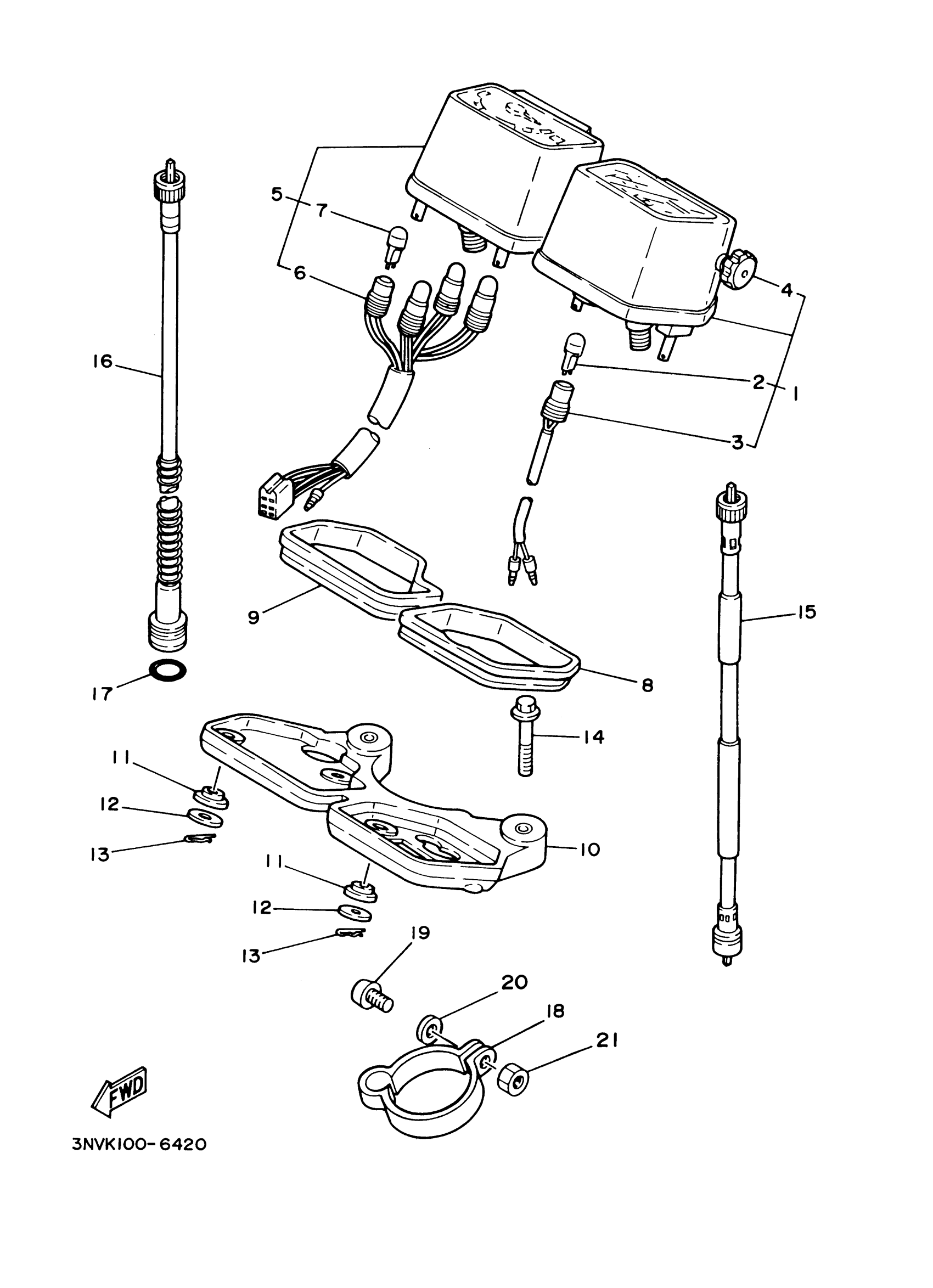

Yamaha XT350MC (XT350 CA) 5LJ1 2000 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSEMBLY
55V-83570-10-00
Unavailable
2
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
5
TACHOMETER ASSEMBLY
55V-83540-40-00
Unavailable
6
. SOCKET CORD ASSEMBLY (30X-83520-00-00)
5Y1-83520-00-00
Unavailable
7
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
8
DAMPER
5Y1-83513-00-00
Unavailable
16
TACHOMETER CABLE ASSY
30X-83560-01-00
Unavailable
17
O-RING (26H)
93210-14579-00
Unavailable
18
BAND
3Y1-26397-00-00
Unavailable
19
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
20
WASHER(1RW)
92907-05600-00
Unavailable
21
NUT, HEXAGON
95317-05600-00
Unavailable
