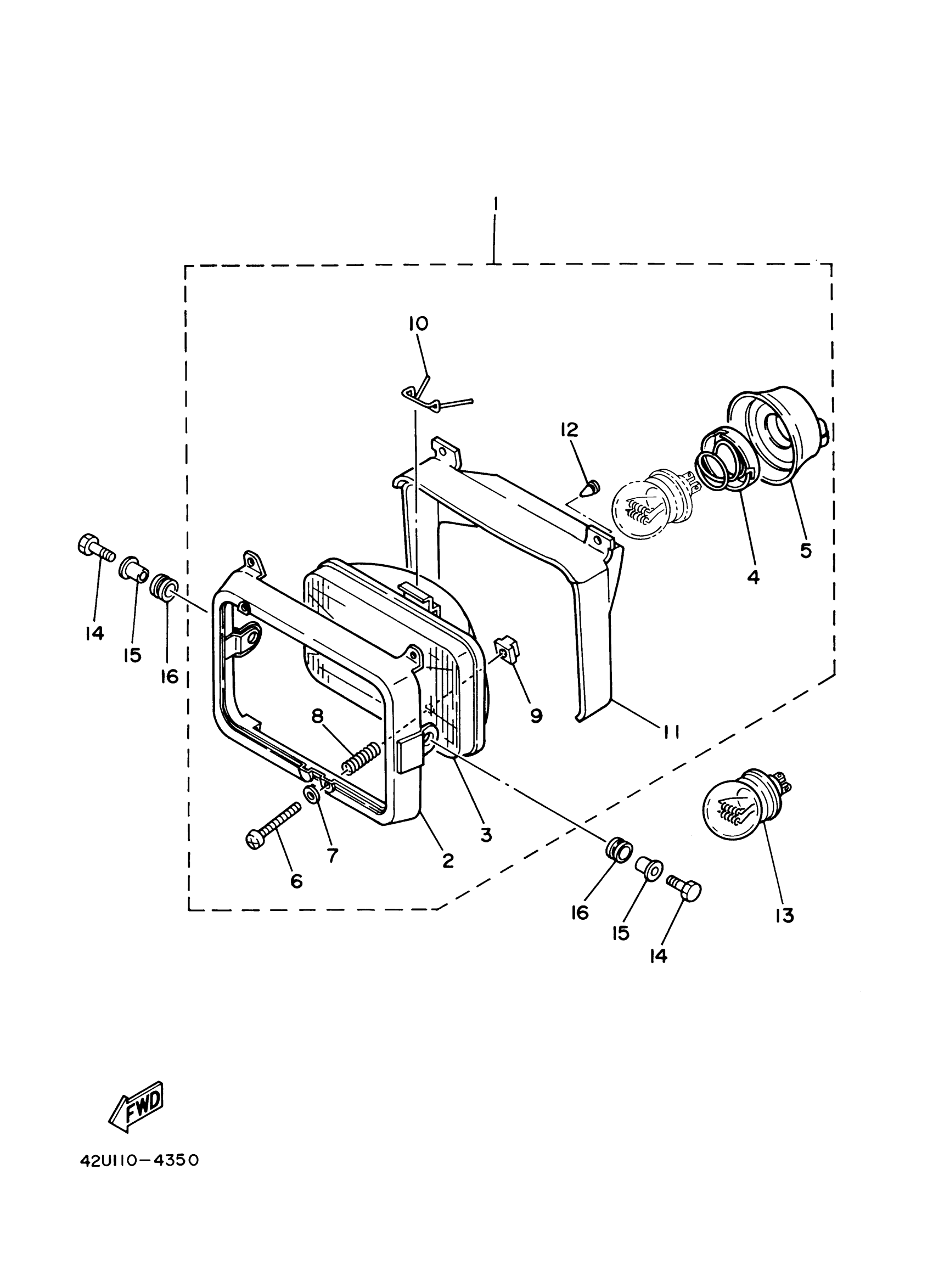

Yamaha XT350MC (XT350 CA) 5LJ1 2000 HEADLIGHT Diagram

HEADLIGHT UNIT ASSEMBLY

42U-84303-60-00

Unavailable

RIM, HEADLIGHT

47J-84115-00-00

$148.99

. LENS ASSEMBLY

42U-84321-60-00

Unavailable

. HOLDER, BULB

341-84393-40-00

Unavailable

. COVER

46X-84396-00-00

Unavailable

SCREW, RIM ADJUSTER

43F-84131-00-00

$9.99

WASHER,SPECIAL

233-84127-60-00

$3.69

SPRING, ADJUST

341-84332-60-00

$9.99

NUT, ADJUST

198-84334-60-00

$7.99

SET SPRING

55X-84124-00-00

$11.99

COVER, SOCKET

30X-84196-00-00

$28.99

CLIP COVER FITTING

10V-84198-00-00

Unavailable

BULB, HEAD LIGHT (12V45/40W

1U4-84314-40-XX

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

COLLAR

90387-06158-00

$8.49

GROMMET 839774310000

90480-14023-00

Unavailable
