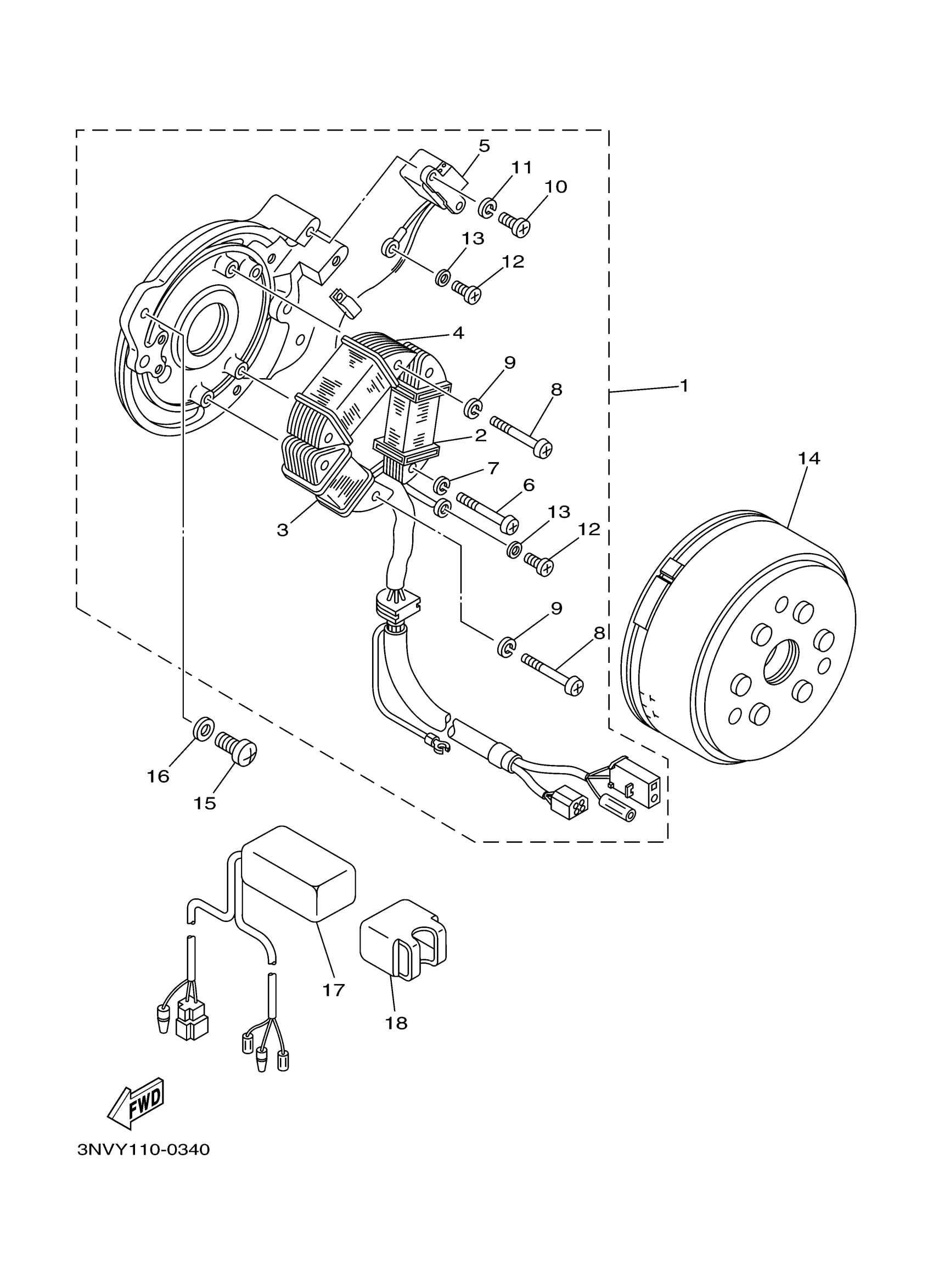

Yamaha XT350MC (XT350 CA) 5LJ1 2000 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

2GK-85510-21-00

Unavailable

2

. COIL, SOURCE

55V-85512-00-00

Unavailable

3

. COIL, LIGHTING 1

56R-85513-00-00

Unavailable

4

. COIL, LIGHTING 2

56R-85514-00-00

Unavailable

5

. COIL, PULSER

30X-85580-00-00

Unavailable

6

SCREW, PAN HEAD

98517-05020-00

$4.25

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

SCREW, PAN

98507-05035-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW, PAN

98517-05012-00

$4.73

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

ROTOR ASSEMBLY

55V-85550-21-00

Unavailable

15

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

16

WASHER(6TA)

92907-06600-00

Unavailable

17

C.D.I. UNIT ASSEMBLY

2GK-85540-20-00

Unavailable

18

BAND

3M5-85546-00-00

Unavailable
