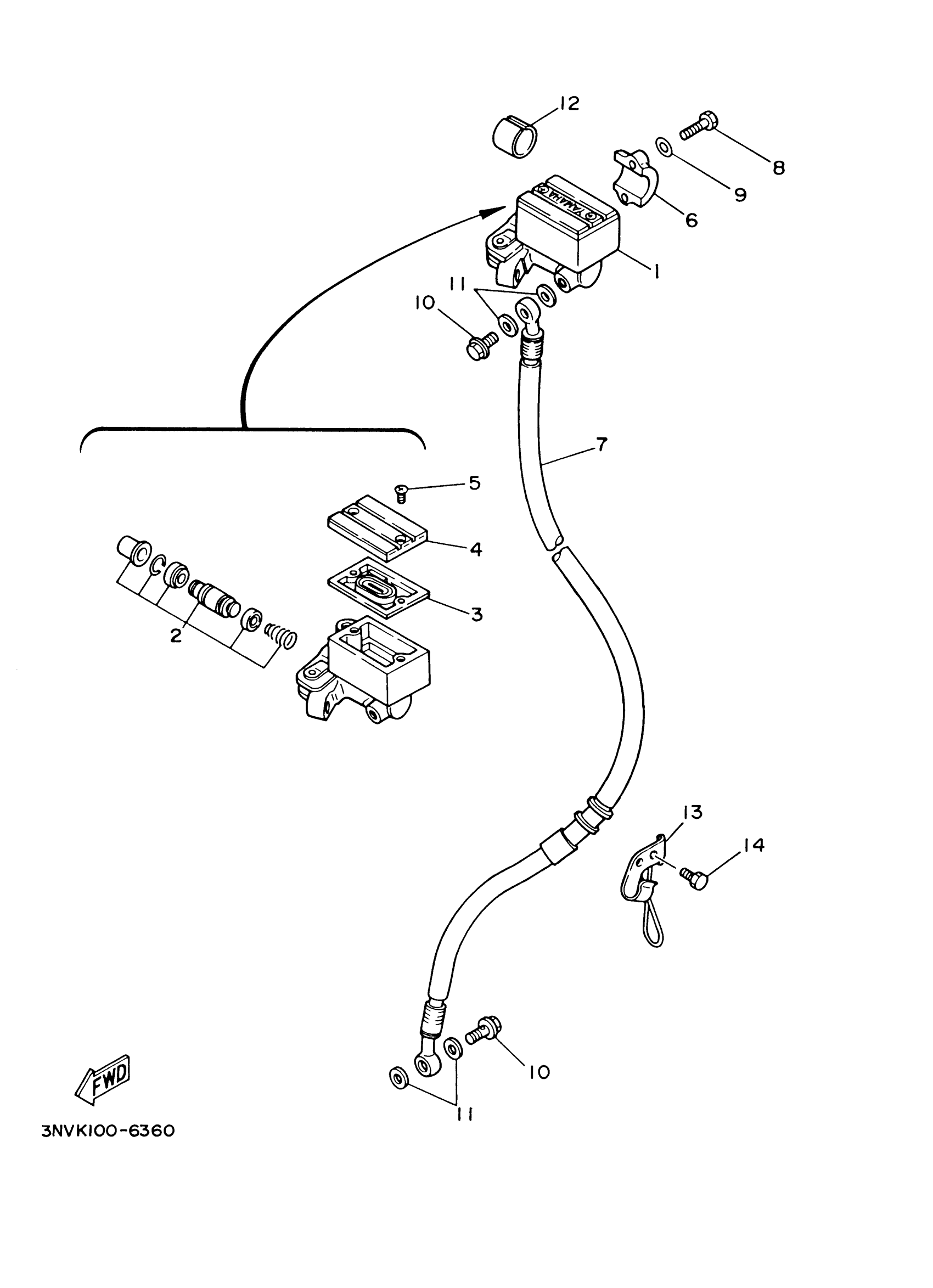

Yamaha XT350MC (XT350 CA) 5LJ1 2000 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

39F-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$69.99

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

4H7-25852-00-00

$39.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

HOSE, BRAKE 1

48Y-25872-03-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER(6TA)

92907-06600-00

$2.72

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

COLLAR(34X)

90387-227H7-00

$8.49

HOLDER, BRAKE HOSE 2

34X-25876-00-00

Unavailable

BOLT,SOCKET

91317-06010-00

$9.49
