Description

Price

1

PEDAL, BRAKE

55V-27211-00-00

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

WASHER, PLATE (525)

90201-12541-00

$7.49

7

CIRCLIP (4V2)

93430-09038-00

$9.49

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

NUT(JN5)

95317-06700-00

$8.49

10

ROD, BRAKE

30X-27231-00-00

Unavailable

11

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

12

WASHER(6TA)

92907-06200-00

$8.49

13

PIN, COTTER (648)

91490-20015-00

$2.20

14

SPRING, TENSION

90506-18289-00

$14.99

15

COVER, SPRING

1M1-27244-00-00

$6.99

16

SPRING, (180-27236-00)

90501-10245-00

Unavailable

17

PIN 1562723700

90249-12008-00

Unavailable

18

NUT, WING (1K5)

90175-06013-00

Unavailable

19

STAND SIDE

55V-27311-02-00

Unavailable

20

SPRING, MAIN STAND

4KN-27116-00-00

Unavailable

21

LINK, SIDE STAND

42U-27315-01-00

Unavailable

22

BOLT

90109-10635-00

Unavailable

23

NUT, U

90185-10037-00

Unavailable

24

FRONT FOOTREST ASSEMBLY (LEFT)

30X-27410-00-90

Unavailable

25

FOOTREST 1

22W-27411-01-90

Unavailable

26

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

27

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

30

FRONT FOOTREST ASSEMBLY (RIGHT)

55V-27420-00-90

Unavailable

31

FOOTREST 2

22W-27421-01-90

Unavailable

32

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

33

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

34

PIN, COTTER

91490-25020-00

Unavailable

35

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

36

BRACKET 2

55V-27442-10-00

Unavailable

37

BRACKET 1

26F-27432-10-00

Unavailable

38

BOLT, BUTTON

92017-08016-00

Unavailable

39

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

40

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

41

WASHER, PLATE (888)

90201-20279-00

Unavailable

42

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

43

PIN, COTTER (648)

91490-20015-00

$2.20

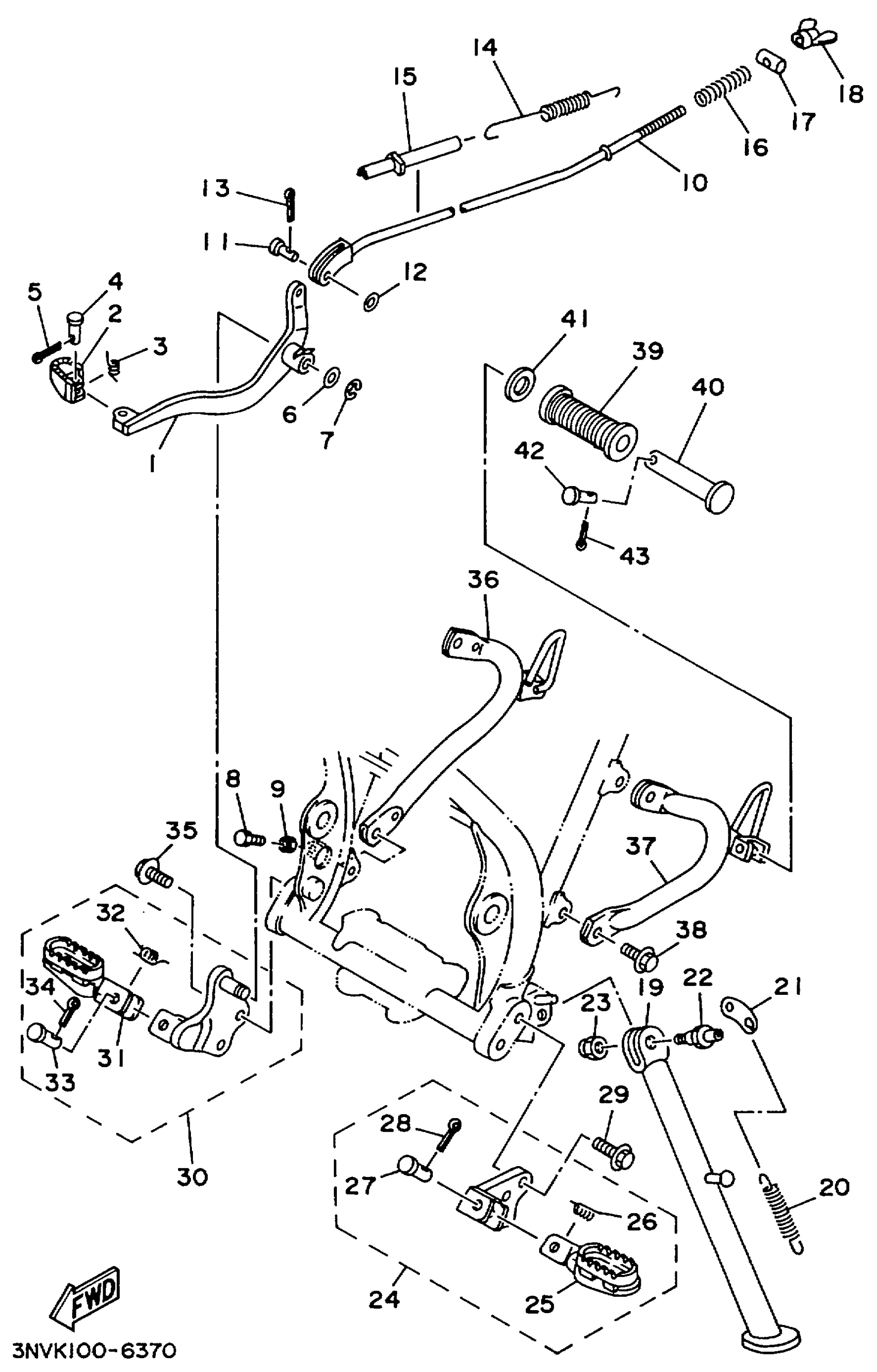

Yamaha XT350LC (XT350 CA) 3NVVC 1999 STAND FOOTREST Diagram

PEDAL, BRAKE

PEDAL, BRAKE

SPRING, TORSION (1W2)

PIN, COTTER (1W2)

PIN, COTTER (648)

WASHER, PLATE (525)

CIRCLIP (4V2)

BOLT, HEXAGON

NUT(JN5)

ROD, BRAKE

PIN, CLEVIS (3X3)

WASHER(6TA)

PIN, COTTER (648)

SPRING, TENSION

COVER, SPRING

SPRING, (180-27236-00)

PIN 1562723700

NUT, WING (1K5)

STAND SIDE

SPRING, MAIN STAND

LINK, SIDE STAND

BOLT

NUT, U

FRONT FOOTREST ASSEMBLY (LEFT)

FOOTREST 1

SPRING, TORSION (214-27426-00)

PIN, CLEVIS (2A6)

PIN, COTTER

BOLT, FLANGE(8AB)

FRONT FOOTREST ASSEMBLY (RIGHT)

FOOTREST 2

SPRING, TORSION (214-27426-00)

PIN, CLEVIS (2A6)

PIN, COTTER

BOLT, FLANGE(8AB)

BRACKET 2

BRACKET 1

BOLT, BUTTON

COVER, REAR FOOTREST

FOOTREST, REAR 1

WASHER, PLATE (888)

PIN, CLEVIS (1Y8)

PIN, COTTER (648)
