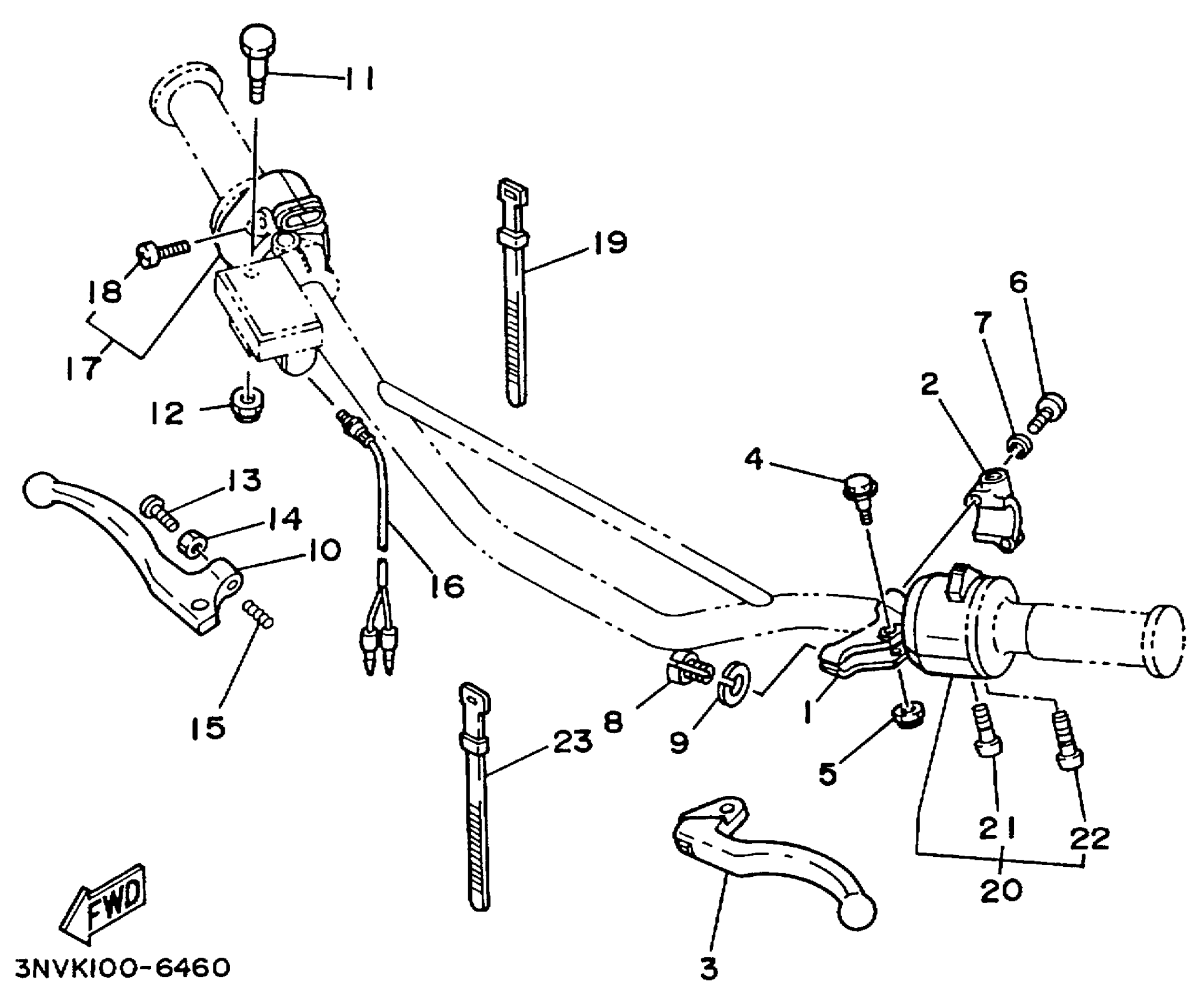

Yamaha XT350LC (XT350 CA) 3NVVC 1999 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1LN-82911-00-00

$33.04

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

$15.51

3

LEVER 1

3FY-83912-02-00

$21.27

4

BOLT (2YK1)

90109-06799-00

$4.23

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

SCREW, PAN HEAD

98517-05020-00

$1.26

7

WASHER(3SX)

92907-05100-00

$5.76

8

BOLT

90123-08002-00

$8.57

9

NUT

90179-08030-00

$3.63

10

LEVER R

3FY-83922-01-00

$26.24

11

BOLT (4L0)

90109-06577-00

$5.03

12

NUT, SELF-LOCKING

95617-06100-00

$2.17

13

SCREW (2L0)

90149-06131-00

$5.75

14

NUT HEXAGON 306839270000

90170-06010-00

$5.75

15

SPRING COMPRESSION306839240000

90501-10312-00

$5.75

16

FRONT STOP SWITCH ASSY

3YF-83980-00-00

Unavailable

17

SWITCH, HANDLE 1

43F-83976-00-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

$1.26

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

20

SWITCH, HANDLE 3

21T-83973-01-00

Unavailable

21

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

22

SCREW, PAN HEAD

98517-05030-00

Unavailable

23

BAND, SWITCH CORD

437-83936-01-00

Unavailable
