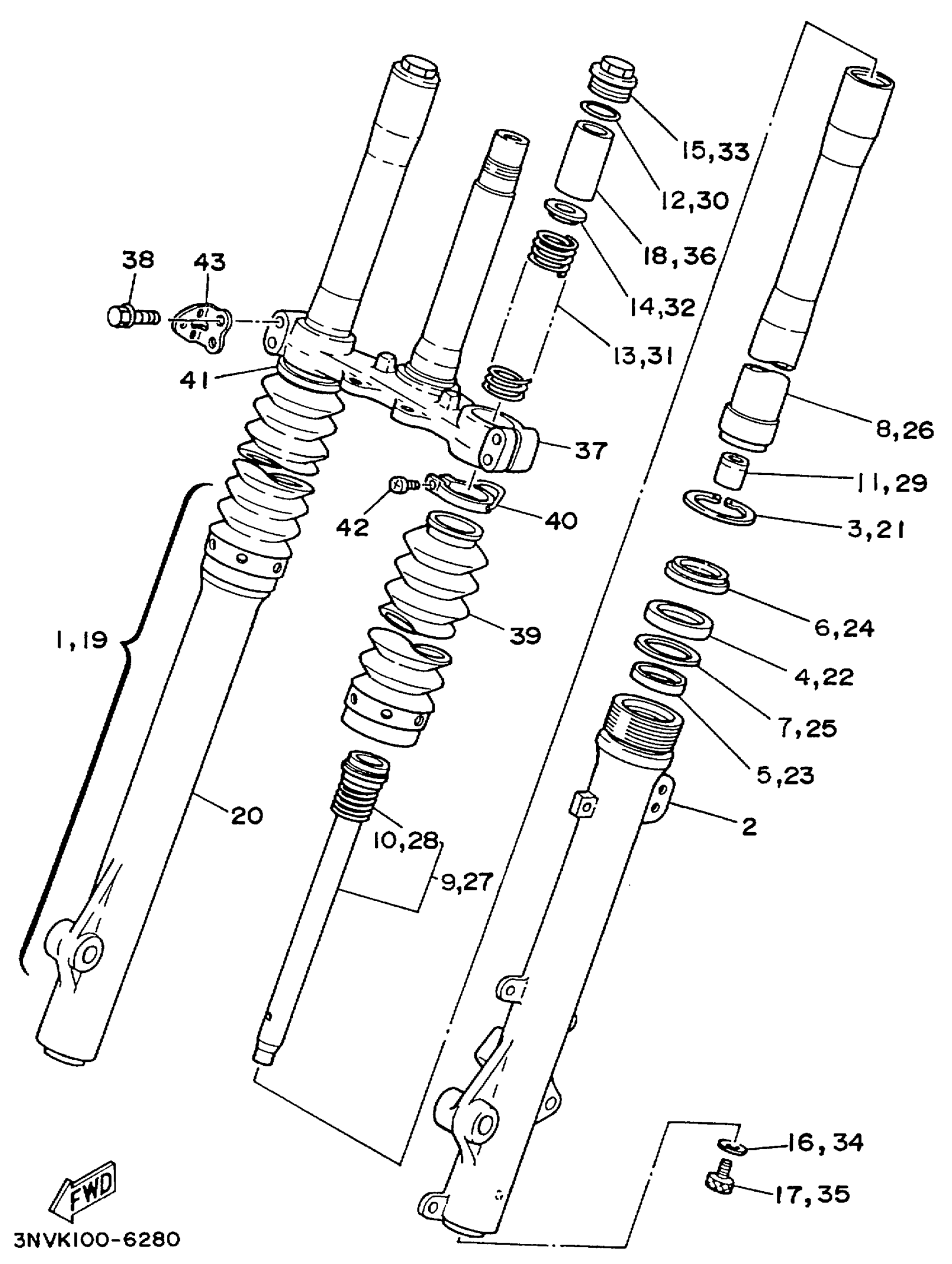

Yamaha XT350LC (XT350 CA) 3NVVC 1999 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY (L.H)
55V-23102-A1-00
Unavailable
2
. TUBE, OUTER (LEFT)
48Y-23126-01-00
Unavailable
8
. INNER TUBE COMP1
30X-23110-00-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
55V-23170-00-00
Unavailable
10
.. SPRING, REBOUND
2X7-23151-00-00
Unavailable
13
. SPRING, FRONT FORK
30X-23141-00-00
Unavailable
14
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
15
. BOLT, CAP
53Y-23111-00-00
Unavailable
16
GASKET
509-23158-L0-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
18
SPACER
4V5-23118-L1-00
Unavailable
19
FRONT FORK ASSY (R.H)
55V-23103-A1-00
Unavailable
20
. TUBE, OUTER (RIGHT)
48Y-23136-01-00
Unavailable
26
. INNER TUBE COMP1
30X-23110-00-00
Unavailable
27
. CYLINDER COMP, FRONT FORK
55V-23170-00-00
Unavailable
28
.. SPRING, REBOUND
2X7-23151-00-00
Unavailable
31
. SPRING, FRONT FORK
30X-23141-00-00
Unavailable
32
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
33
. BOLT, CAP
53Y-23111-00-00
Unavailable
34
GASKET
509-23158-L0-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
36
SPACER
4V5-23118-L1-00
Unavailable
37
UNDER BRACKET COMP.
55V-23340-00-00
Unavailable
38
BOLT, FLANGE(4KG)
95024-08040-00
Unavailable
39
BOOT
3YT-23191-30-00
Unavailable
40
. BAND
48Y-23192-00-00
Unavailable
41
BAND, BOOT
341-92090-60-00
Unavailable
42
SCREW, BOOT BAND
1W4-23194-L0-00
Unavailable
43
BRACKET, REFLECTOR 1
49R-85112-00-00
Unavailable
