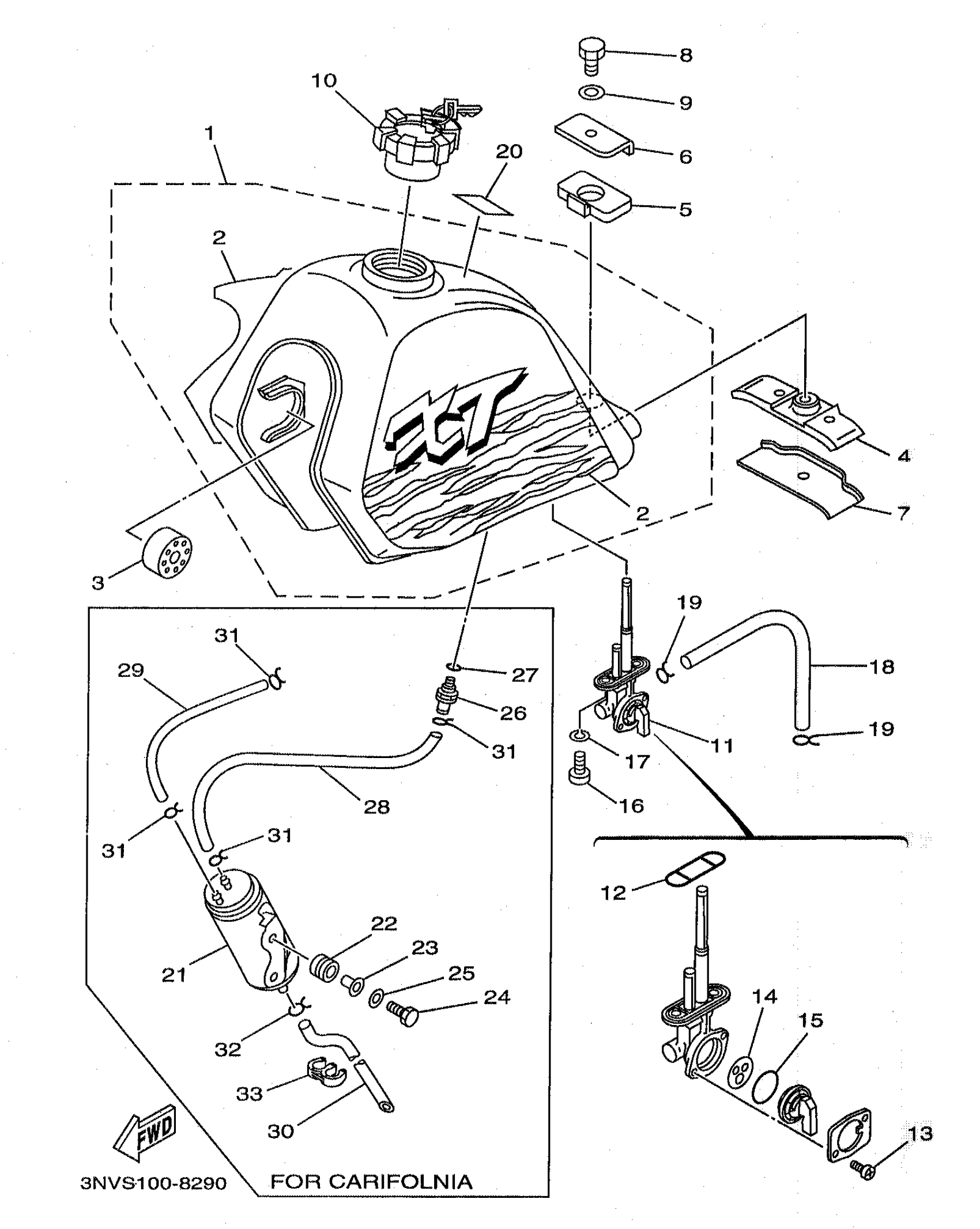

Yamaha XT350KC (XT350 CA) 1998 FUEL TANK Diagram

FUEL TANK COMP. (PURPLISH WHITE SOLID 1)

30X-24110-G0-X2

Unavailable

FUEL TANK COMP. (PURPLISH WHITE SOLID 1)

43E-24110-10-02

Unavailable

. GRAPHIC SET

3NV-24240-50-00

Unavailable

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

DAMPER, LOCATING 2

30X-24182-01-00

$20.99

DAMPER, LOCATING 3

30X-24183-01-00

$7.99

WASHER, SPECIAL

30X-24186-01-00

$7.99

WASHER, SPECIAL

30X-24187-00-00

$24.99

BOLT, HEXAGON

97017-06012-00

$3.76

WASHER(6TA)

92907-06600-00

$2.72

CAP ASSY

48Y-24602-00-00

Unavailable

CAP ASSY

56R-24602-00-00

Unavailable

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

O-RING

4X8-24512-00-00

$8.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

VALVE PACKING

3AC-24523-00-00

Unavailable

SEAL, COCK

3AJ-24534-01-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

HOSE (L200)

90445-10752-00

Unavailable

CLIP

90467-090A2-00

Unavailable

LABEL, CAUTION

3MX-2118K-00-00

Unavailable

CANISTER ASSEMBLY

56R-24170-00-00

Unavailable

GROMMET(56R)

90480-15342-00

Unavailable

COLLAR(52E)

90387-063G3-00

Unavailable

BOLT, HEXAGON

97017-06025-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

O-RING (4G0)

93210-11453-00

Unavailable

PIPE 4

56R-24314-00-00

Unavailable

PIPE, FUEL 1

4KN-24311-01-00

Unavailable

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable

CLIP

90467-090A2-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

CLAMP(56R)

90464-60067-00

Unavailable
