Description

Price

1

PIPE, EXHAUST 1

57R-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

55V-14628-00-00

Unavailable

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

4

SCREW, TAPPING (30X)

90164-06017-00

$8.49

5

WASHER, WAVE(3RW)

90206-06090-00

$8.49

6

WASHER(6TA)

92907-06600-00

$2.72

7

MUFFLER 1

2GK-14711-01-00

Unavailable

8

. PROTECTOR, MUFFLER 2

55V-14728-00-00

Unavailable

9

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

10

SCREW, BINDING

98907-06010-00

$1.65

11

WASHER, WAVE(3RW)

90206-06090-00

$8.49

12

GASKET, MUFFLER

4EL-14714-00-00

$27.99

13

BAND, MUFFLER

30X-14715-00-00

Unavailable

14

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

15

PIPE, OUTLET

42U-14752-00-00

Unavailable

16

SCREW, PAN

98507-06010-00

Unavailable

17

WASHER(6TA)

92907-06600-00

$2.72

18

BOLT, FLANGE

95817-06008-00

Unavailable

19

WASHER(6TA)

92907-06600-00

$2.72

20

GASKET, EXHAUST PIPE

4BR-14613-00-00

Unavailable

21

BOLT,SOCKET

91317-06025-00

Unavailable

22

BOLT, FLANGE

95817-08014-00

Unavailable

23

WASHER (853)

90201-08326-00

Unavailable

24

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

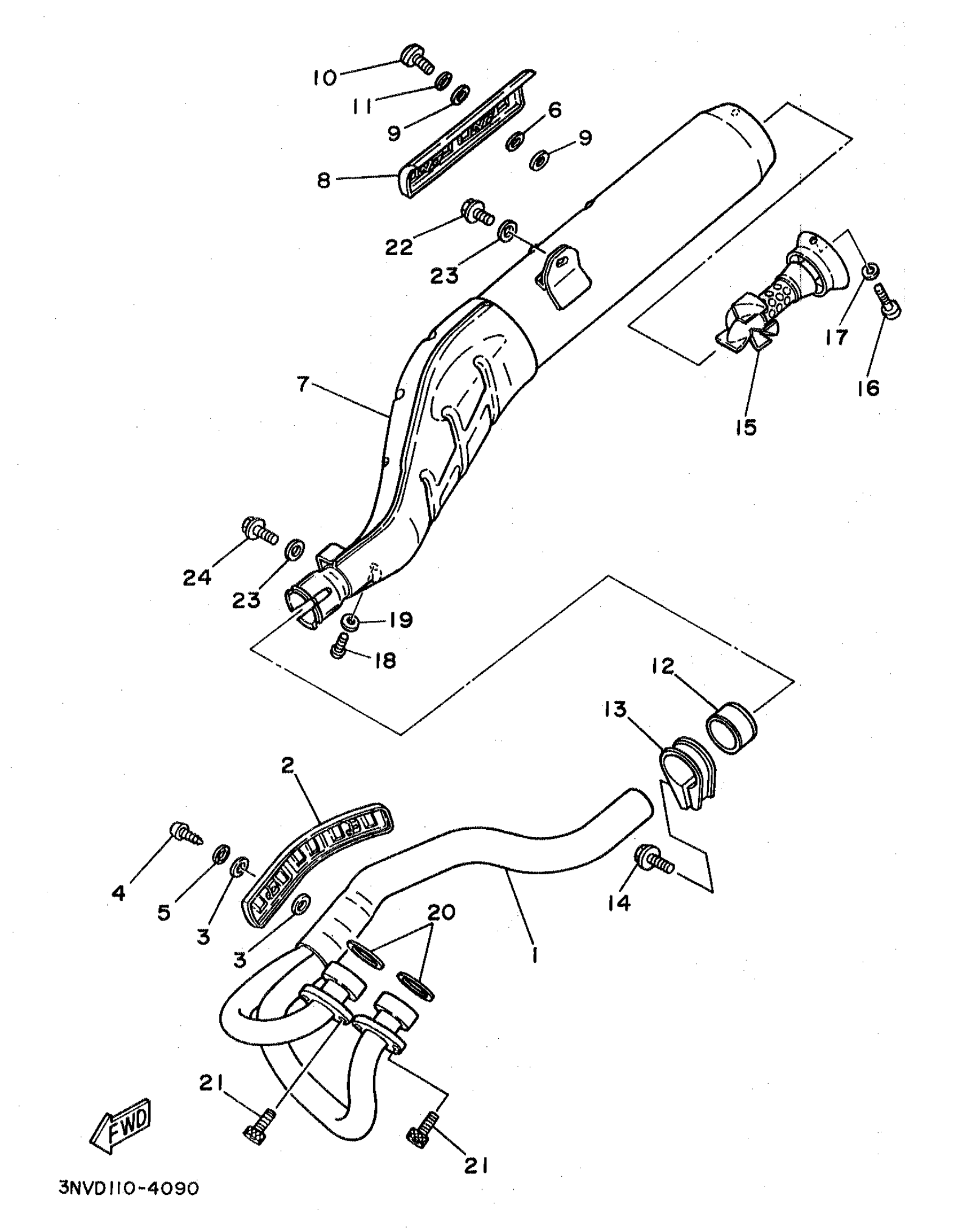

Yamaha XT350KC (XT350 CA) 1998 EXHAUST Diagram

PIPE, EXHAUST 1

PROTECTOR, EXHAUST PIPE

WASHER, PROTECTOR

SCREW, TAPPING (30X)

WASHER, WAVE(3RW)

WASHER(6TA)

MUFFLER 1

. PROTECTOR, MUFFLER 2

WASHER, PROTECTOR

SCREW, BINDING

WASHER, WAVE(3RW)

GASKET, MUFFLER

BAND, MUFFLER

BOLT, FLANGE(4MY)

PIPE, OUTLET

SCREW, PAN

WASHER(6TA)

BOLT, FLANGE

WASHER(6TA)

GASKET, EXHAUST PIPE

BOLT,SOCKET

BOLT, FLANGE

WASHER (853)

BOLT, FLANGE(8AB)
