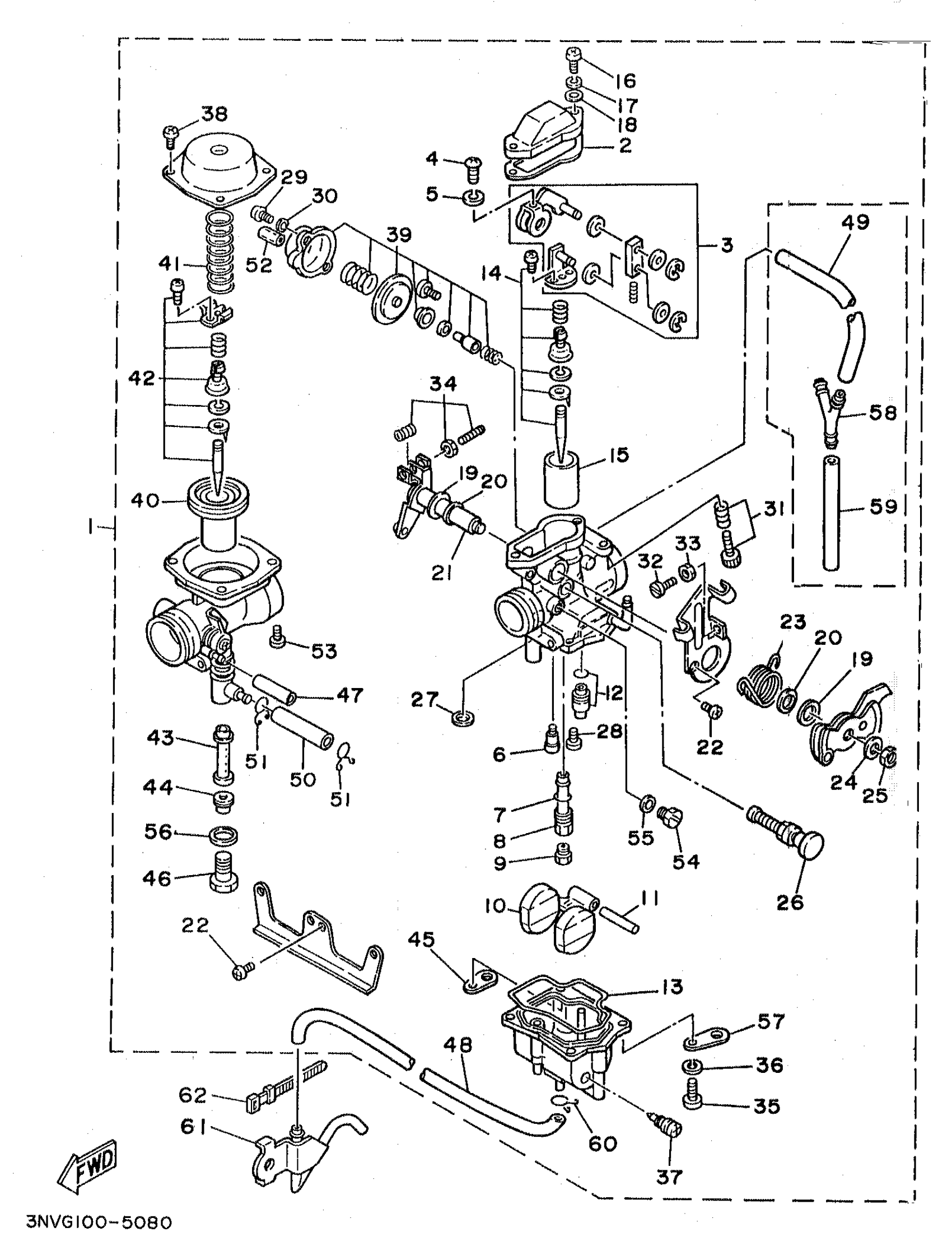

Yamaha XT350KC (XT350 CA) 1998 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

56R-14301-05-00

Unavailable

1

CARBURETOR ASSY 1

57T-14301-05-00

Unavailable

2

GASKET

30X-14198-00-00

$16.49

3

BRACKET 1

1LN-14291-00-00

Unavailable

4

SCREW, PANHEAD (796)

98580-04016-00

$8.49

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

JET, PILOT (#42)

30X-14342-21-00

$10.99

7

GASKET

360-24512-00-00

$9.99

8

. NOZZLE, MAIN

51Y-14341-00-00

Unavailable

9

JET, MAIN (# 125)

288-14343-63-00

$10.99

10

FLOAT

5Y1-14385-00-00

$89.99

11

. PIN, FLOAT

6E5-14386-01-00

Unavailable

12

NEEDLE VALVE SET

1JK-14107-01-00

$39.99

13

GASKET, FLOAT CHAMBER

30X-14384-00-00

$25.99

14

. NEEDLE SET

57T-1490J-10-00

Unavailable

14

. NEEDLE SET

57T-1490J-10-00

Unavailable

15

VALVE, THROTTLE 1

2JX-14312-35-00

Unavailable

15

. VALVE, THROTTLE 1

56R-14312-35-00

Unavailable

16

SCREW, PAN HEAD

98517-04016-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

. WASHER, PLAIN

5Y1-14357-00-00

Unavailable

20

O-RING

5Y1-14572-00-00

Unavailable

21

THROTTLE SHAFT ASSEMBLY

1LN-14930-00-00

Unavailable

22

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

23

. SPRING, THROTTLE VALVE

30X-14131-00-00

Unavailable

24

. WASHER, SPRING

5Y1-14356-00-00

Unavailable

25

. NUT

5Y1-14358-00-00

Unavailable

26

PLUNGER, STARTER

15A-14371-01-00

Unavailable

27

GASKET

5Y1-14536-00-00

Unavailable

28

SCREW, BIND(6L2)

98980-04006-00

Unavailable

29

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

30

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

31

. THROTTLE SCREW SET

3WP-14103-00-00

Unavailable

32

. SCREW

30X-14216-00-00

Unavailable

33

NUT

30X-14358-00-00

Unavailable

34

. STOP SCREW SET

30X-1490K-00-00

Unavailable

35

SCREW, PAN HEAD (686)

98580-04012-00

Unavailable

36

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

37

AIR SCREW SET

14T-14104-00-00

Unavailable

38

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

39

DIAPHRAGM SET 1

5Y1-1490A-00-00

Unavailable

40

. VALVE ASSEMBLY

30X-14340-01-00

Unavailable

41

. SPRING

30X-14286-00-00

Unavailable

42

. NEEDLE SET

57T-1490J-00-00

Unavailable

42

. NEEDLE SET

57T-1490J-00-00

Unavailable

43

. NOZZLE, MAIN 2

30X-14355-00-00

Unavailable

44

. JET, MAIN (106)

30X-14343-53-00

Unavailable

45

PLATE

5Y1-14146-00-00

Unavailable

46

. BOLT, HOLDING

7KF-14162-00-00

Unavailable

47

PIPE

5Y1-14349-00-00

Unavailable

48

PIPE (56R-14396-00-00)

2NW-14396-00-00

Unavailable

48

PIPE

5Y1-14396-00-00

Unavailable

49

PIPE

5Y1-14197-00-00

Unavailable

49

PIPE

56R-14196-00-00

Unavailable

50

PIPE

30X-14148-00-00

Unavailable

51

CLIP

5Y1-14159-00-00

Unavailable

52

. PIPE

30X-14149-00-00

Unavailable

53

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

54

SCREW

5H0-14991-00-00

Unavailable

55

GASKET

5H0-14126-00-00

Unavailable

56

. WASHER

7KF-14227-00-00

Unavailable

57

PLATE

42U-14146-00-00

Unavailable

57

. PLATE

30X-14146-00-00

Unavailable

58

WAY 3 (73A)

90413-05013-00

Unavailable

59

PIPE

56R-14196-00-00

Unavailable

60

. CLIP

5Y1-14137-00-00

Unavailable

61

PIPE

56R-14193-00-00

Unavailable

62

BAND, SWITCH CORD

437-83936-01-00

Unavailable
