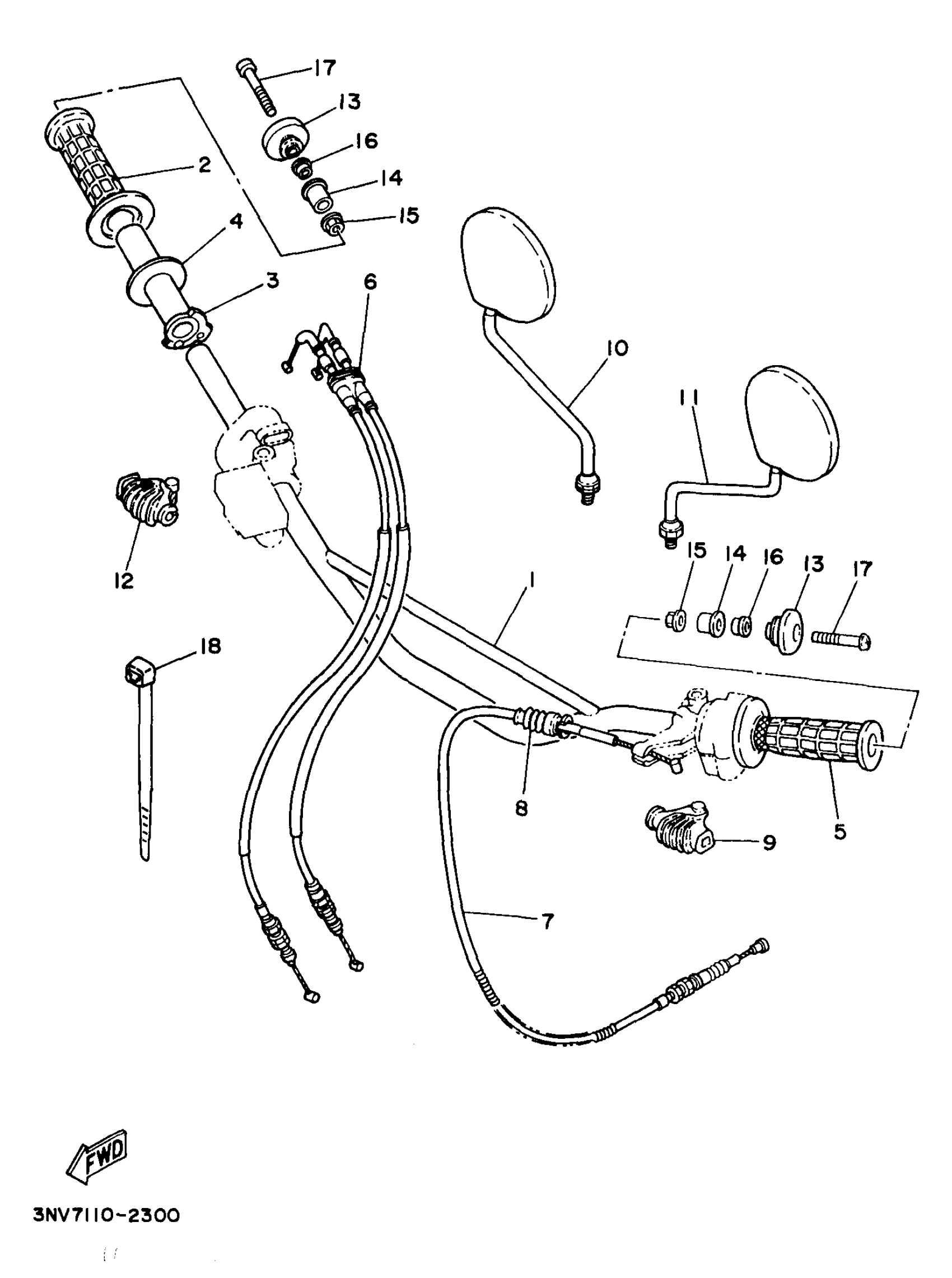

Yamaha XT350JC (XT350 CA) 1997 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

1EU-26111-20-00

Unavailable

2

GRIP (RIGHT)

55V-26242-00-00

Unavailable

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$28.99

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP (LH)

55V-26241-01-00

Unavailable

6

THROTTLE CABLE ASSY

30X-26302-01-00

Unavailable

7

CABLE, CLUTCH

30X-26335-01-00

Unavailable

8

BOOT, WIRE

1E6-26342-00-00

$30.99

9

COVER, LEVER

1E6-26372-00-00

$23.99

10

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99

11

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

12

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

13

END, GRIP

55V-26246-00-00

Unavailable

14

DAMPER, LOCATING 1 (55V-2622F-00-00)

21A-2622F-00-00

Unavailable

15

NUT(1ET)

90179-06498-00

$5.60

16

COLLAR (8G8)

90387-06681-00

Unavailable

17

SCREW, PAN

98507-06040-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable
