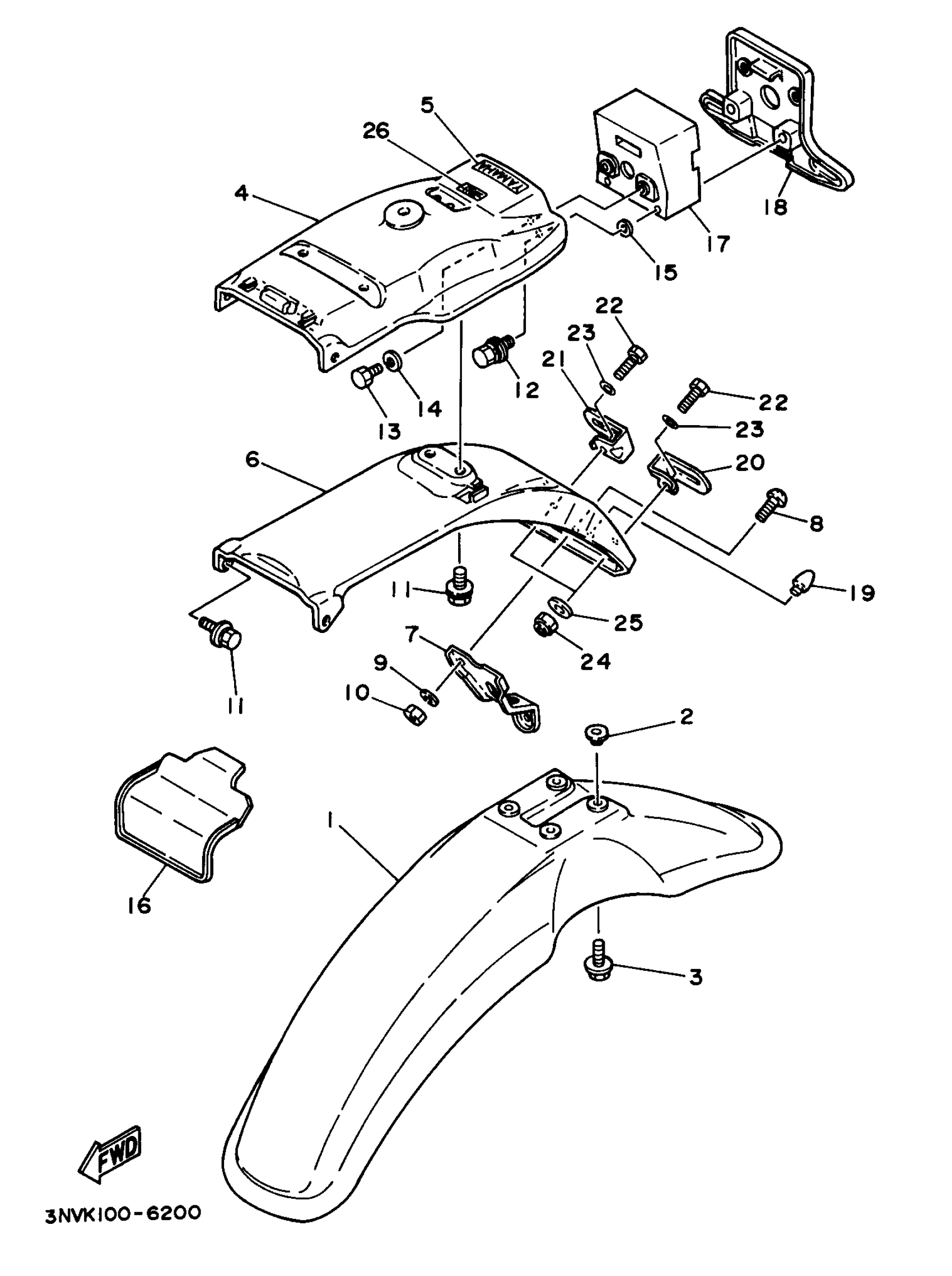

Yamaha XT350JC (XT350 CA) 1997 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

30X-21511-30-00

Unavailable

2

COLLAR (8G8)

90387-06681-00

$9.49

3

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

4

FENDER, REAR

42U-21611-10-00

Unavailable

5

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

6

BRACKET, LICENSE

42U-21685-00-00

Unavailable

7

BRACKET, REFLECTOR

42U-21641-00-00

Unavailable

8

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

9

WASHER, SPRING

92907-06100-00

$4.25

10

NUT(6TA)

95317-06600-00

$3.55

11

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

12

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

13

BOLT, HEXAGON

97017-06045-00

$3.76

14

WASHER(6TA)

92907-06600-00

$2.72

15

WASHER, PLATE (8K2)

90201-06778-00

$4.46

16

GUARD, MUD

30X-21629-00-00

Unavailable

17

COVER, REAR FENDER 1

21T-2163A-00-00

Unavailable

18

BRACKET, LICENSE

21T-21685-20-00

Unavailable

19

DAMPER 2

42U-21639-00-00

Unavailable

20

BRACKET, REAR STAY

42U-21688-00-00

Unavailable

21

BRACKET, REAR STAY 2

42U-21689-00-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

WASHER(6TA)

92907-06600-00

$2.72

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable

25

WASHER, PLATE

90201-06020-00

Unavailable

26

LABEL 1

3MX-24875-00-00

Unavailable
