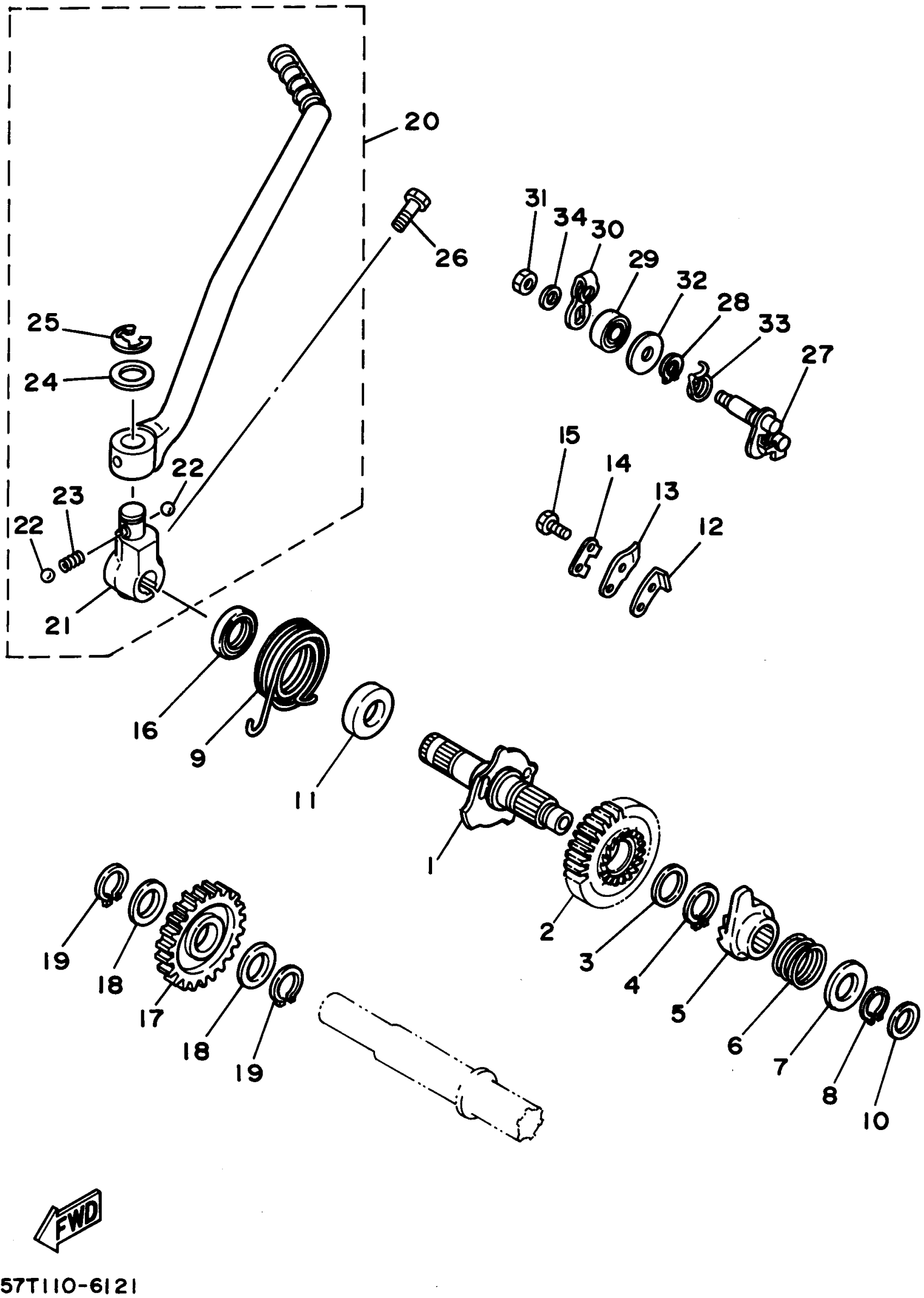

Yamaha XT350GC (XT350 CA) 1995 STARTER Diagram
#
Description
Price
5
WHEEL, RATCHET
3Y1-15671-00-00
Unavailable
6
SPRING COMPRESSION168156750000
90501-16107-00
Unavailable
7
WASHER, PLAIN (1JL)
90201-155K6-00
Unavailable
9
SPRING, TORSION
90508-324B5-00
Unavailable
11
SPACER
90560-17239-00
Unavailable
16
OIL SEAL (15A)
93102-17263-00
Unavailable
17
GEAR, KICK IDLE (27T)
30X-15651-01-00
Unavailable
18
WASHER, PLATE (30X)
90201-177G4-00
Unavailable
19
CIRCLIP(1EY)
99009-17400-00
Unavailable
20
KICK CRANK ASSY
30X-15620-01-00
Unavailable
21
. BOSS, KICK CRANK
30X-15621-01-00
Unavailable
22
BALL (12R)
93507-32031-00
Unavailable
23
SPRING COMPRESSION278156220000
90501-12081-00
Unavailable
24
WASHER (3XVC)
90201-153A1-00
Unavailable
25
CIRCLIP
99006-10600-00
Unavailable
26
BOLT, HEXAGON
97017-08030-00
Unavailable
27
DECOMP. LEVER ASSEMBLY
30X-1561A-00-00
Unavailable
28
CIRCLIP(10W)
99009-10400-00
Unavailable
29
SEAL,OIL(SD 10-21-5 HS,3Y1)
93102-10207-00
Unavailable
30
LEVER, CABLE
30X-1561G-00-00
Unavailable
31
NUT(4MY)
95307-06800-00
Unavailable
32
WASHER, PLATE (2W5)
90201-10614-00
Unavailable
33
SPRING, TORSION
90508-14630-00
Unavailable
34
WASHER(6TA)
92907-06600-00
Unavailable
