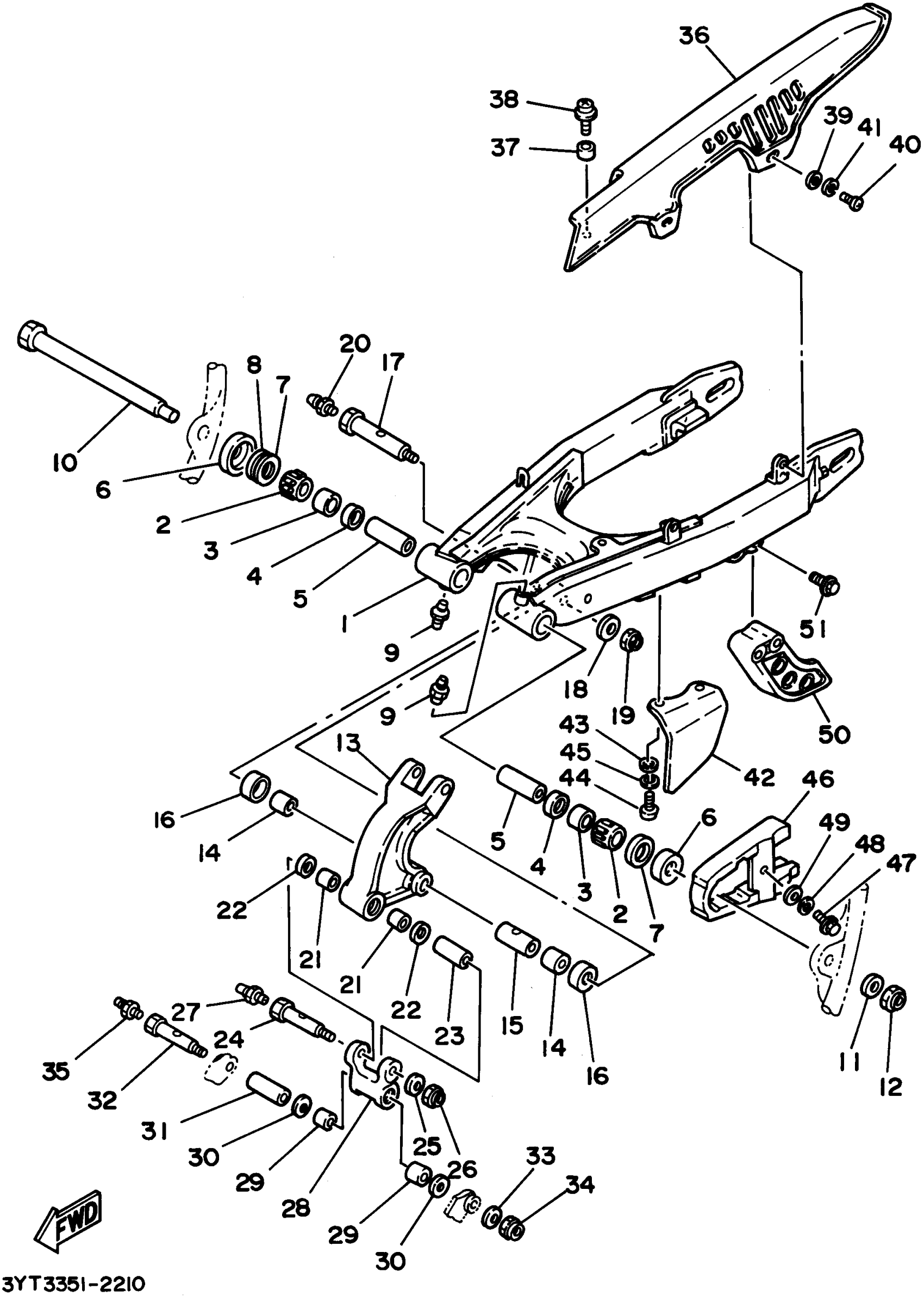

Yamaha XT350GC (XT350 CA) 1995 REAR ARM Diagram
#
1
REAR ARM COMP.
55V-22110-00-P0
Unavailable
5
BUSH 2
3Y1-22124-01-00
Unavailable
7
WASHER, PLATE (4H7)
90201-243A2-00
Unavailable
9
NIPPLE, GREASE
93700-06M03-00
Unavailable
10
SHAFT, PIVOT
30X-22141-00-00
Unavailable
13
ARM, RELAY
30X-2217A-00-00
Unavailable
15
COLLAR (30X)
90387-140J9-00
Unavailable
16
COVER, THRUST 1
30X-22128-00-00
Unavailable
17
BOLT
90109-121A1-00
Unavailable
18
WASHER, PLATE (8K2)
90201-120A5-00
Unavailable
19
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
20
NIPPLE, GREASE
93700-06M03-00
Unavailable
21
BUSH (26H)
90386-18115-00
Unavailable
22
OIL SEAL (2J5)
93109-18020-00
Unavailable
23
COLLAR (38M)
90387-126J8-00
Unavailable
24
BOLT (30X)
90109-10752-00
Unavailable
25
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
26
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
27
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
28
ROD, CONNECTING 1
30X-2217F-01-00
Unavailable
29
BUSH (26H)
90386-18115-00
Unavailable
30
OIL SEAL (2J5)
93109-18020-00
Unavailable
31
COLLAR(38W)
90387-121L6-00
Unavailable
32
BOLT (30X)
90109-10752-00
Unavailable
33
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
34
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
35
NIPPLE, GREASE
93700-06M03-00
Unavailable
36
CASE, CHAIN
38M-22311-00-00
Unavailable
37
COLLAR
90387-06704-00
Unavailable
38
SCREW, WITH WASHER (517).
90159-06013-00
Unavailable
39
WASHER (3R8)
90209-06187-00
Unavailable
40
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
41
WASHER, SPRING
92907-06100-00
Unavailable
42
CASE, CHAIN 2
30X-22312-01-00
Unavailable
43
WASHER (3R8)
90209-06187-00
Unavailable
44
SCREW, PAN
98517-06012-00
Unavailable
45
WASHER, SPRING
92907-06100-00
Unavailable
46
SEAL, GUARD
42U-22151-01-00
Unavailable
47
BOLT, HEXAGON
97017-06012-00
Unavailable
48
WASHER, SPRING
92907-06100-00
Unavailable
49
WASHER (3R8)
90209-06187-00
Unavailable
50
GUARD, CHAIN
30X-22153-00-00
Unavailable
51
BOLT, FLANGE
95817-06050-00
Unavailable
