1995 Yamaha XT350 CA (XT350GC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1995 Yamaha XT350 CA (XT350GC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

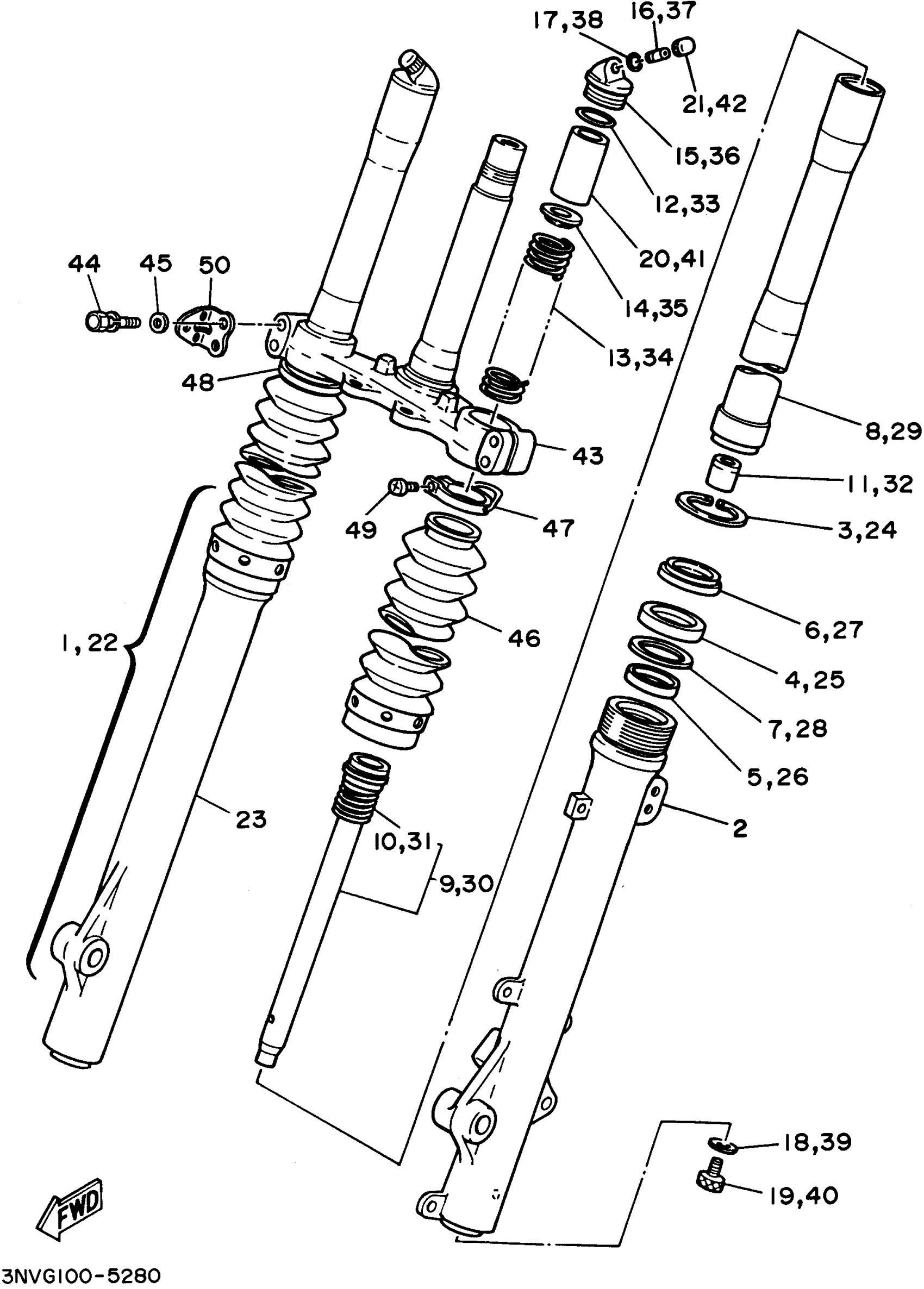

1995 Yamaha XT350 CA (XT350GC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

55V-23102-00-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

48Y-23126-00-00

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

6

SEAL, DUST

48Y-23144-00-00

1
Out of stock

7

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

8

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

9

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

1
Out of stock

10

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

11

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

12

O-RING

1W1-23114-L0-00

1
Out of stock

13

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

14

WASHER, SPRING UPPER

4FY-23149-00-00

—

$6.52

In stock

15

. BOLT, CAP

33M-23111-00-00

1
Out of stock

16

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

17

O-RING

3J2-23147-00-00

—
Out of stock

18

GASKET

509-23158-L0-00

—

$14.34

In stock

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

20

SPACER

4V5-23118-L1-00

1
Out of stock

21

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

22

FRONT FORK ASSEMBLY (RH)

55V-23103-00-00

1
Out of stock

23

. TUBE, OUTER (RIGHT)

48Y-23136-00-00

1
Out of stock

24

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

25

OIL SEAL

48Y-23145-00-00

1
Out of stock

26

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

27

SEAL, DUST

48Y-23144-00-00

1
Out of stock

28

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

29

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

30

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

1
Out of stock

31

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

32

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

33

O-RING

1W1-23114-L0-00

1
Out of stock

34

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

35

WASHER, SPRING UPPER

4FY-23149-00-00

—

$6.52

In stock

36

. BOLT, CAP

33M-23111-00-00

1
Out of stock

37

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

38

O-RING

3J2-23147-00-00

—
Out of stock

39

GASKET

509-23158-L0-00

—

$14.34

In stock

40

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

41

SPACER

4V5-23118-L1-00

1
Out of stock

42

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

43

UNDER BRACKET COMP.

55V-23340-00-00

1
Out of stock

44

BOLT, AXLE HOLDER

5X6-23128-L0-00

1
Out of stock

45

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

46

BOOT

3YT-23191-00-00

1
Out of stock

47

. BAND

48Y-23192-00-00

1
Out of stock

48

BAND, BOOT

341-92090-60-00

—
Out of stock

49

SCREW, BOOT BAND

1W4-23194-L0-00

—

$6.43

In stock

50

BRACKET, REFLECTOR 1

49R-85112-00-00

—

$19.26

In stock
