1995 Yamaha XT350 CA (XT350GC) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1995 Yamaha XT350 CA (XT350GC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

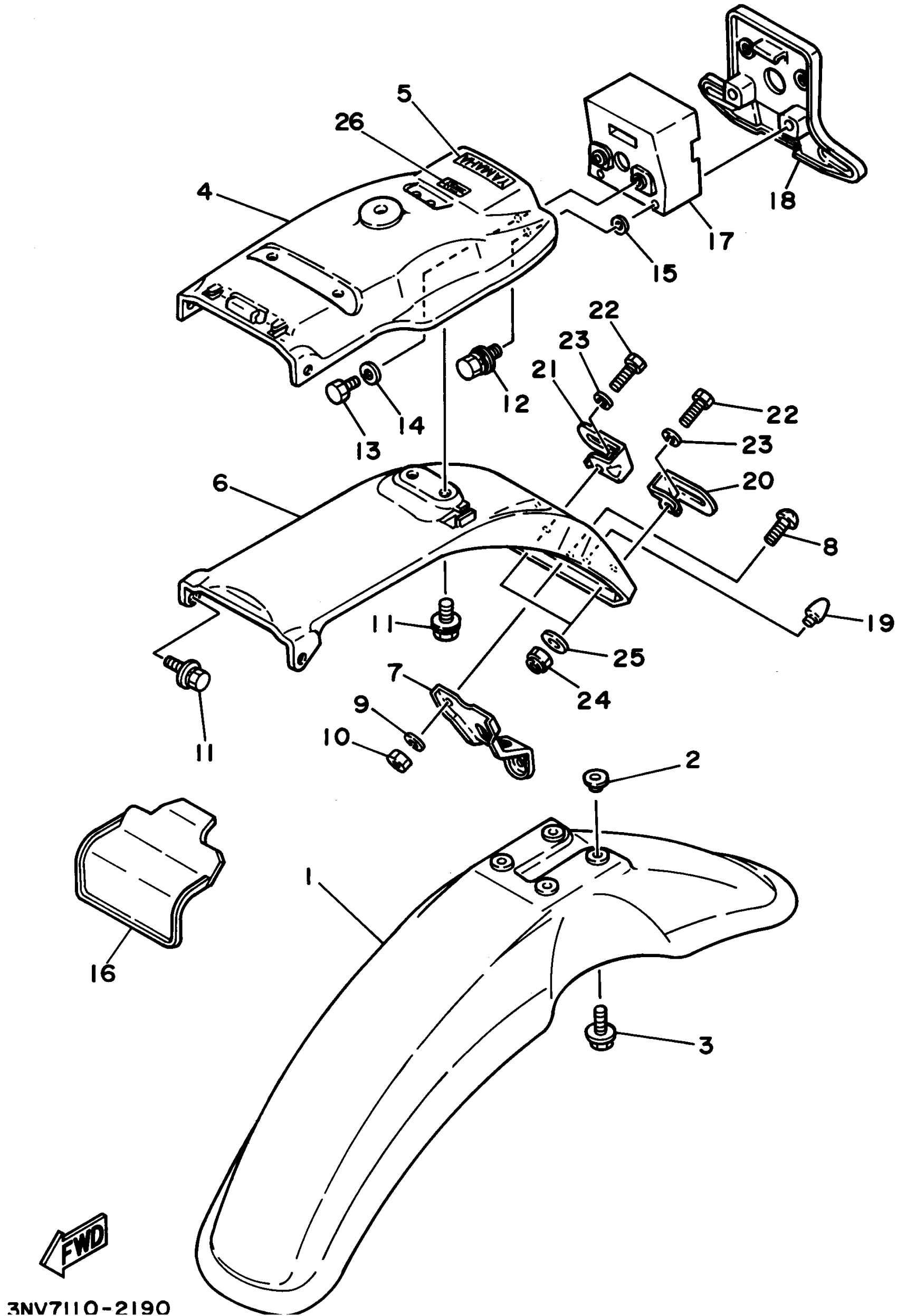

1995 Yamaha XT350 CA (XT350GC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

30X-21511-40-00

1
Out of stock

2

COLLAR (8G8)

90387-06681-00

1
Out of stock

3

BOLT, WITH WASHER (10V)

90119-06063-00

1
Out of stock

4

FENDER, REAR

42U-21611-20-00

1
Out of stock

5

EMBLEM, YAMAHA

3WF-2153E-61-00

1
Out of stock

6

BRACKET, LICENSE

42U-21685-00-00

1
Out of stock

7

BRACKET, REFLECTOR

42U-21641-00-00

1
Out of stock

8

SCREW, W/WASHER (4L0)

90159-06060-00

1
Out of stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

10

NUT(6TA)

95317-06600-00

1
Out of stock

11

BOLT, WITH WASHER (10V)

90119-06063-00

1
Out of stock

12

BOLT, WITH WASHER (10V)

90119-06063-00

1
Out of stock

13

BOLT, HEXAGON

97017-06045-00

1
Out of stock

14

WASHER, SPRING

92907-06100-00

1
Out of stock

15

WASHER, PLATE (8K2)

90201-06778-00

1
Out of stock

16

GUARD, MUD

30X-21629-00-00

1
Out of stock

17

COVER, REAR FENDER 1

21T-2163A-00-00

1
Out of stock

18

BRACKET, LICENSE

21T-21685-20-00

1
Out of stock

19

DAMPER 2

42U-21639-00-00

—
Out of stock

20

BRACKET, REAR STAY

42U-21688-00-00

1
Out of stock

21

BRACKET, REAR STAY 2

42U-21689-00-00

1
Out of stock

22

BOLT, HEXAGON

97017-06020-00

—
Out of stock

23

WASHER, SPRING

92907-06100-00

1
Out of stock

24

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock

25

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

26

LABEL 1

3MX-24875-00-00

1
Out of stock
