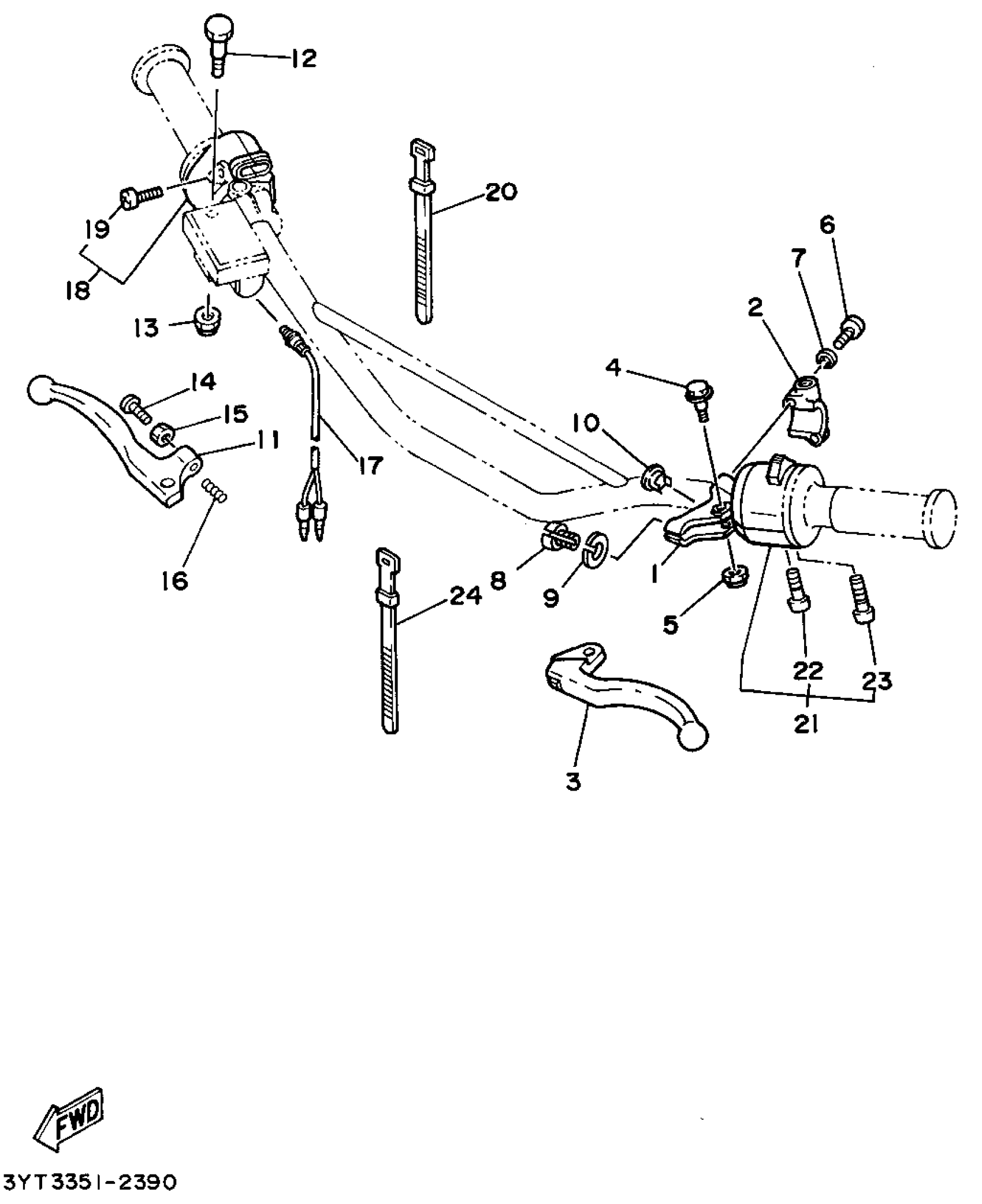

Yamaha XT350FC (XT350 CA) 1994 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1LN-82911-00-00

$40.99

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

3

LEVER 1

3FY-83912-02-00

$28.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SCREW, PAN HEAD

98517-05020-00

$4.25

7

WASHER(3SX)

92907-05100-00

$8.49

8

BOLT

90123-08002-00

$10.49

9

NUT

90179-08030-00

$5.49

10

CAP 1

503-83956-00-00

Unavailable

11

LEVER R

3FY-83922-01-00

$31.99

12

BOLT (4L0)

90109-06577-00

$5.60

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

SCREW (2L0)

90149-06131-00

$8.49

15

NUT HEXAGON 306839270000

90170-06010-00

$8.49

16

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

17

FRONT STOP SWITCH ASSY

3YF-83980-00-00

Unavailable

18

SWITCH, HANDLE 1

43F-83976-00-00

Unavailable

19

SCREW, PAN HEAD

98517-05020-00

$4.25

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

SWITCH, HANDLE 3

21T-83973-01-00

Unavailable

22

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

23

. SCREW, PAN HEAD

98580-05530-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable
