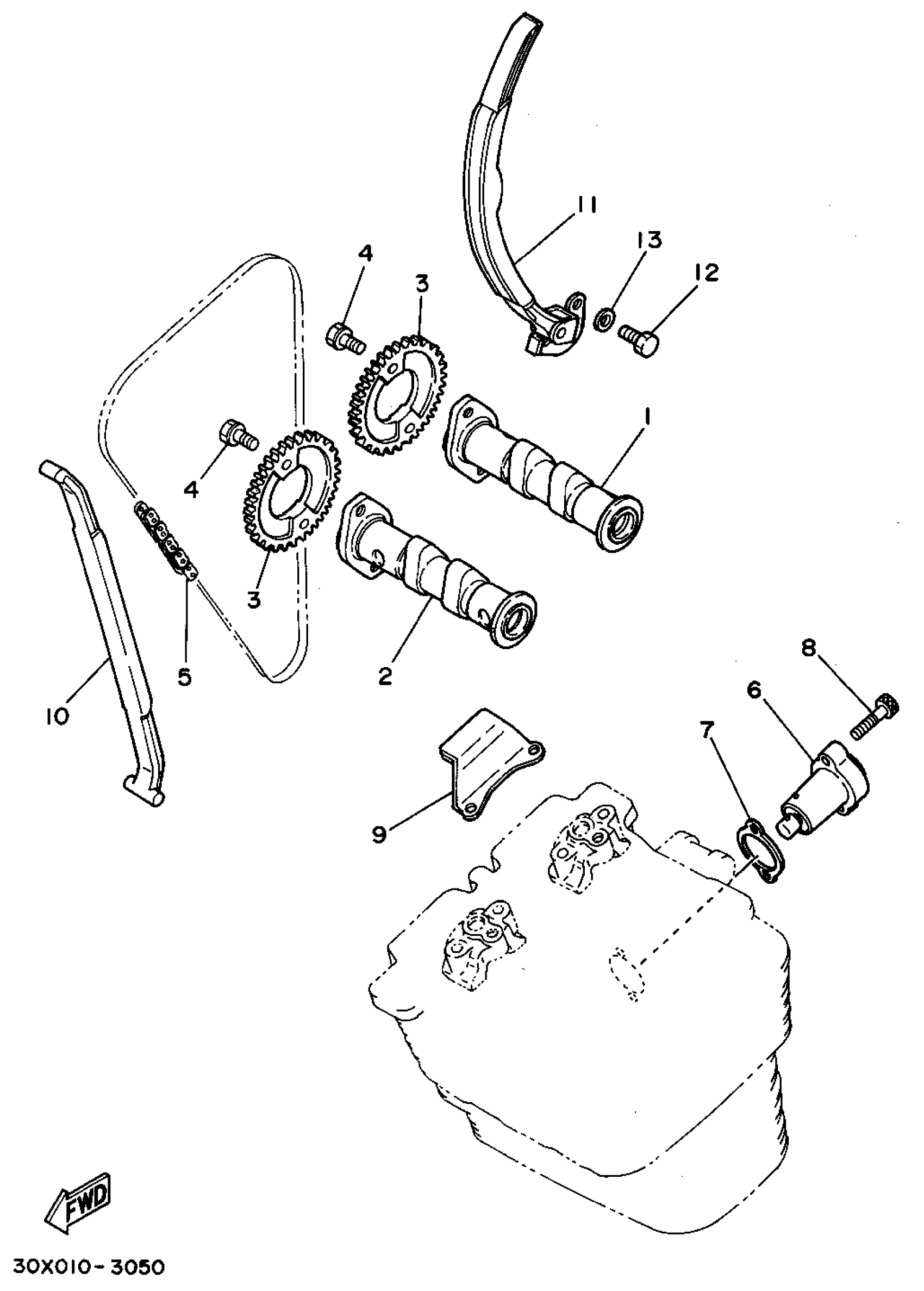

Yamaha XT350FC (XT350 CA) 1994 CAMSHAFT - CHAIN Diagram

CAMSHAFT 1

48Y-12171-00-00

Unavailable

CAMSHAFT 2

48Y-12181-00-00

Unavailable

SPROCKET, CAM CHAIN

30X-12176-00-00

Unavailable

BOLT, FLANGE

90105-07006-00

$8.49

CHAIN, DRIVE (79-010M-136L)

94590-91136-00

$131.99

TENSIONER ASSY, CAM CHAIN

30X-12210-00-00

$117.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT,SOCKET

91317-06025-00

$5.60

GUIDE, STOPPER 2

30X-12241-00-00

Unavailable

DAMPER, CHAIN 1

30X-12251-00-00

$50.99

DAMPER, CHAIN 2

30X-12252-01-00

$136.99

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80
