1993 Yamaha XT350 CA (XT350EC) Taillight Diagram

← All diagrams

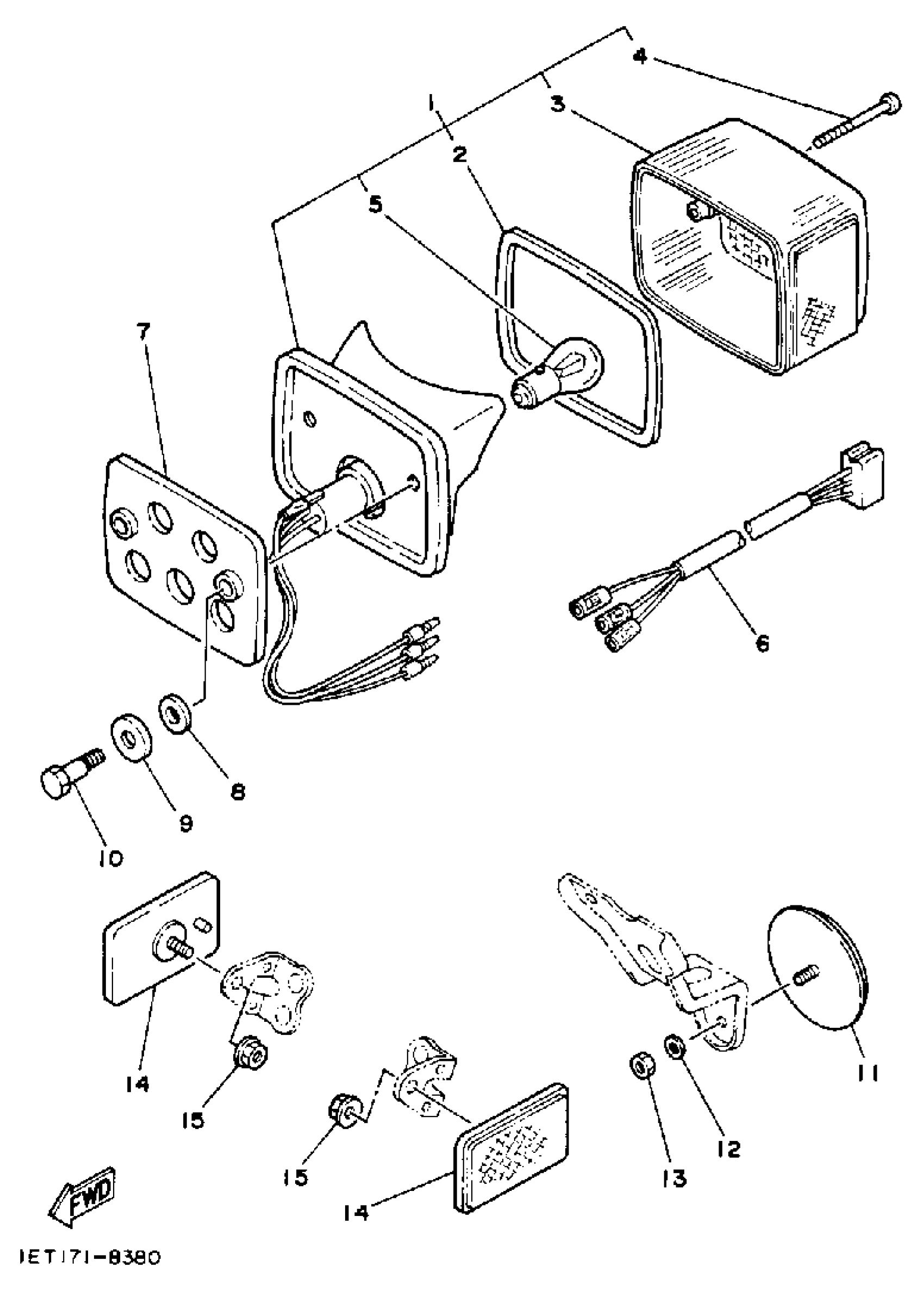

Find the part on the Taillight diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

2

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

4

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

5

1

$10.02

In stock

6

CORD, TAILLIGHT

42U-84517-00-00

1
Out of stock

7

DAMPER

4L0-84753-00-00

—

$14.00

In stock

8

WASHER, PLATE (4L0)

90201-083A0-00

1

$6.91

In stock

9

WASHER, SPECIAL (498)

90209-08125-00

1

$9.83

In stock

10

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

11

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

12

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

FRONT REFLECTOR ASSY

23V-85110-00-00

1

$21.52

In stock

15

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock
