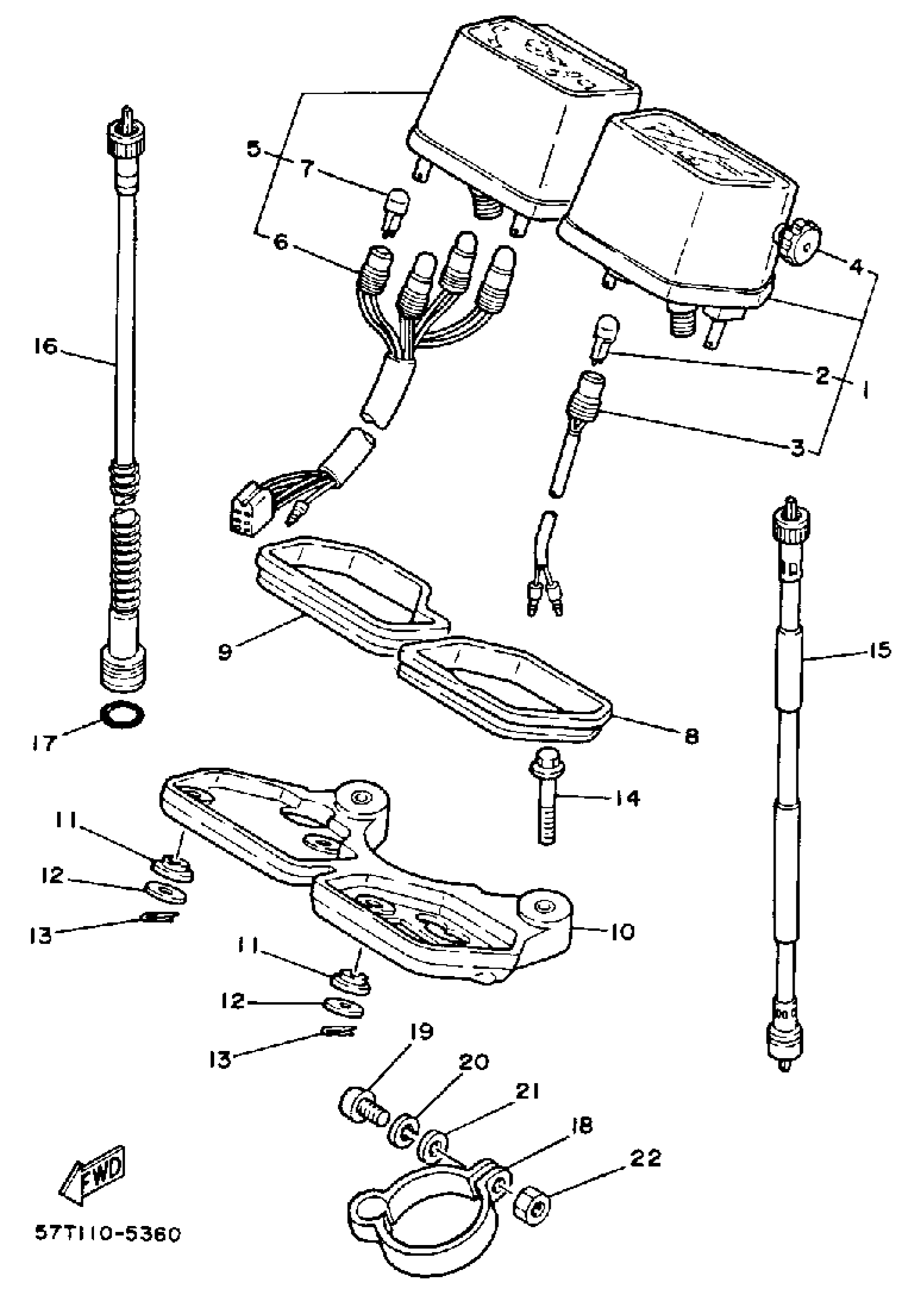

Find the part on the Meter diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

43F-83570-G1-00

1
Out of stock

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

3

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

4

KNOB, TRIP METER

5Y1-83578-00-00

1
Out of stock

5

TACHOMETER ASY

1ET-83540-00-00

1
Out of stock

6

. SOCKET CORD ASSEMBLY (30X-83520-00-00)

5Y1-83520-00-00

1
Out of stock

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

8

DAMPER

5Y1-83513-00-00

—

$28.86

In stock

9

DAMPER

5Y1-83541-00-00

1
Out of stock

10

BRACKET, METER

5Y1-83519-00-00

1
Out of stock

11

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

12

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

13

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

14

BOLT, FLANGE

95817-06040-00

1

$4.54

In stock

15

SPEEDOMETER CABLE ASSY

48Y-83550-03-00

1
Out of stock

16

TACHOMETER CABLE ASSY

30X-83560-01-00

—
Out of stock

17

O-RING (26H)

93210-14579-00

—

$5.69

In stock

18

BAND

3Y1-26397-00-00

1
Out of stock

19

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

22

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
