1993 Yamaha XT350 CA (XT350EC) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

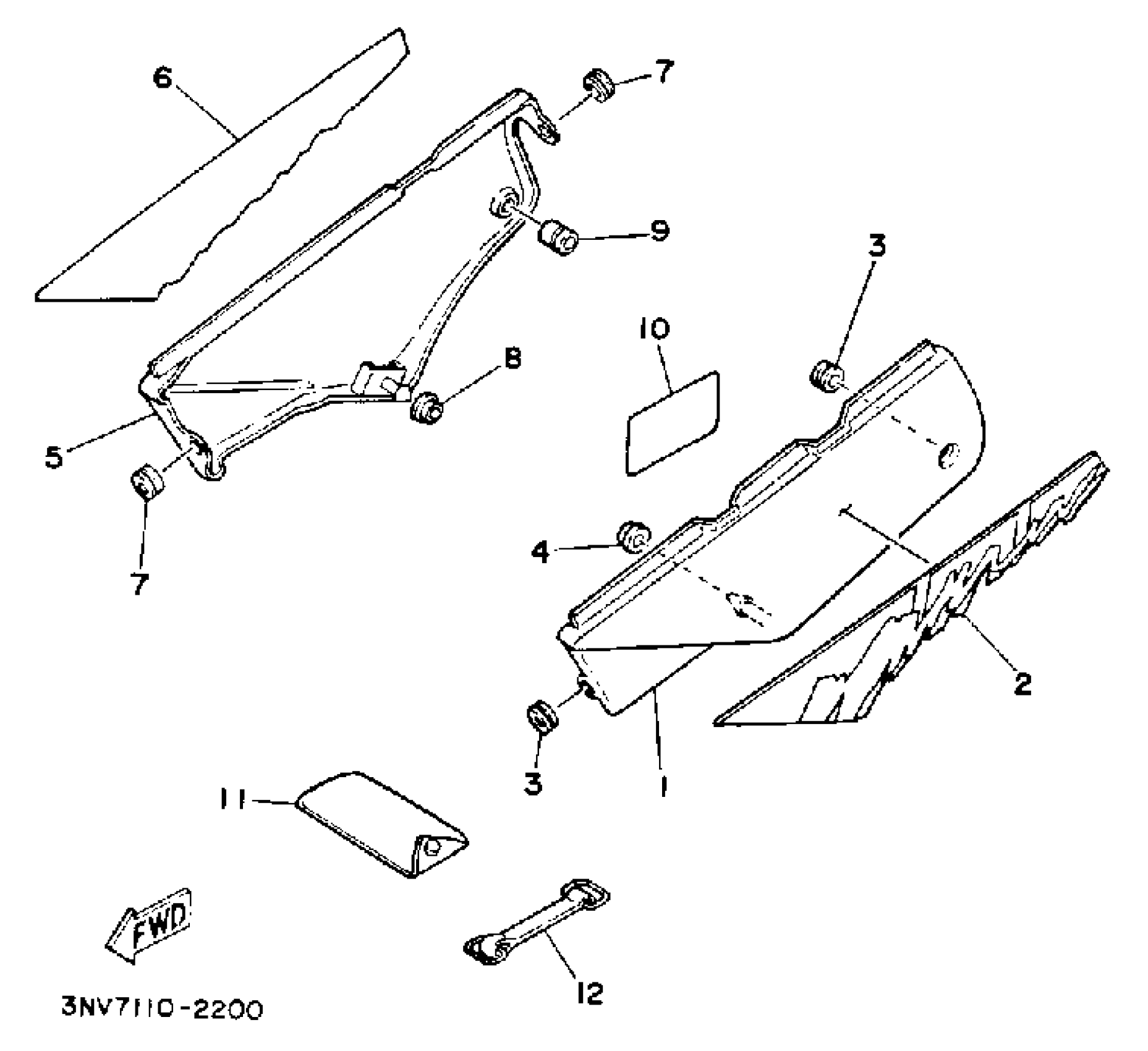

1993 Yamaha XT350 CA (XT350EC) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,SIDE 1

30X-21711-30-0X

1
Out of stock

2

GRAPHIC

3NV-2173E-00-00

1
Out of stock

3

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

4

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

5

COVER, SIDE 2

30X-21721-30-98

1
Out of stock

6

GRAPHIC

3NV-2173F-00-00

1
Out of stock

7

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

8

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

9

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

10

PLATE, EPA CAL 2

3NV-2179R-40-00

1
Out of stock

10

PLATE, EPA U49

3NV-2179V-40-00

1
Out of stock

11

TOOL KIT

1LN-W2810-01-00

1
Out of stock

12

BAND, BATTERY

116-82131-00-00

1
Out of stock
