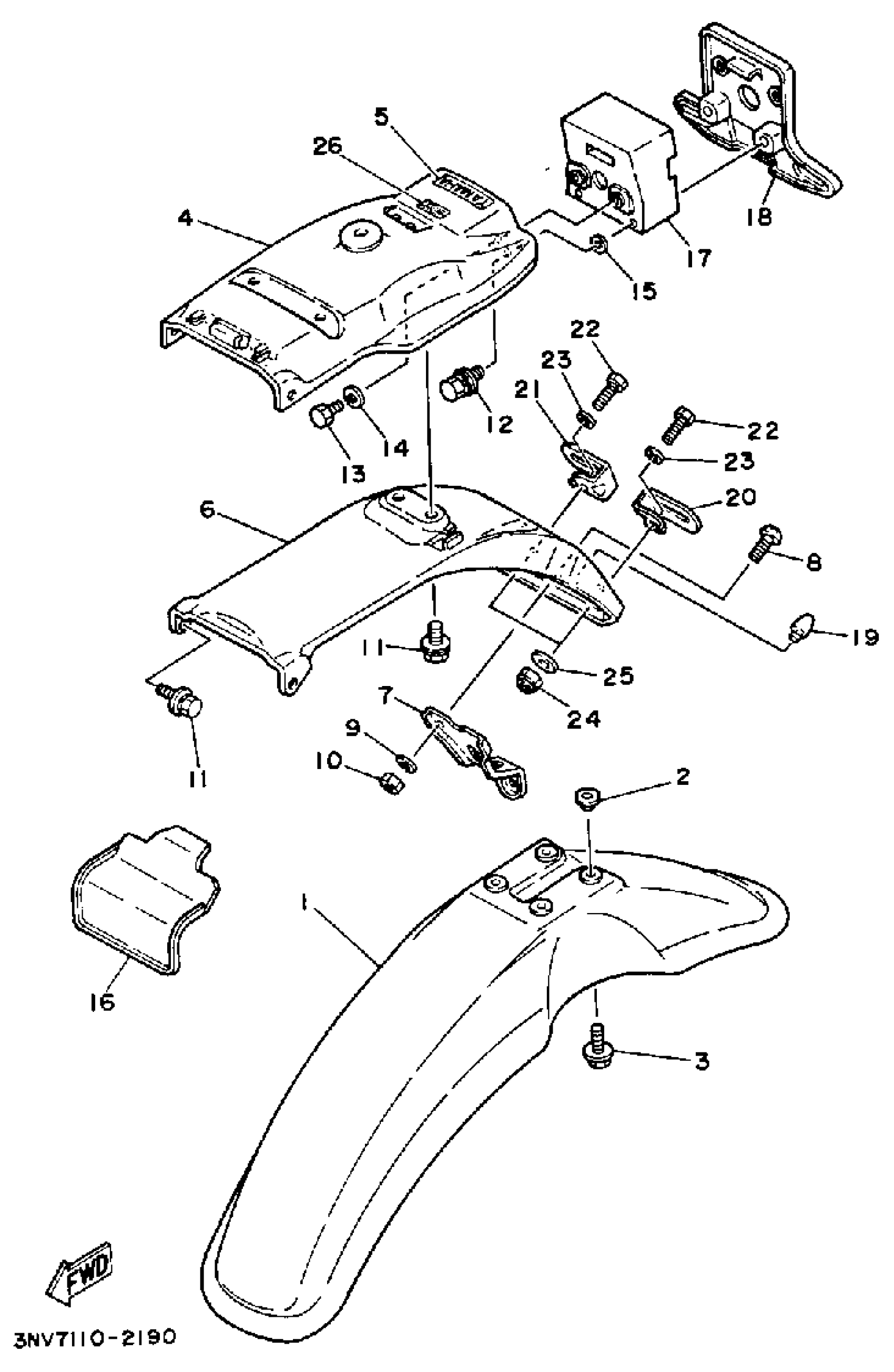

Find the part on the Fender diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

30X-21511-30-00

1
Out of stock

2

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

3

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

4

FENDER, REAR

42U-21611-10-00

1
Out of stock

4

FENDER, REAR

42U-21611-10-00

1
Out of stock

5

emblem yamaha

3WF-2153E-41-00

—

$7.80

In stock

6

BRACKET, LICENSE

42U-21685-00-00

1
Out of stock

7

BRACKET, REFLECTOR

42U-21641-00-00

1
Out of stock

8

SCREW, W/WASHER (4L0)

90159-06060-00

1

$6.17

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

12

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

13

BOLT

97001-06045-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLATE (8K2)

90201-06778-00

—

$3.69

In stock

16

GUARD, MUD

30X-21629-00-00

1
Out of stock

17

COVER, REAR FENDER 1

21T-2163A-00-00

1
Out of stock

18

BRACKET, LICENSE

21T-21685-20-00

1
Out of stock

19

DAMPER 2

42U-21639-00-00

—
Out of stock

20

BRACKET, REAR STAY

42U-21688-00-00

1
Out of stock

21

BRACKET, REAR STAY 2

42U-21689-00-00

1
Out of stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

WASHER, SPRING

92907-06100-00

—
Out of stock

24

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

25

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

26

LABEL 1

3MX-24875-00-00

1
Out of stock
