1993 Yamaha XT350 CA (XT350EC) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

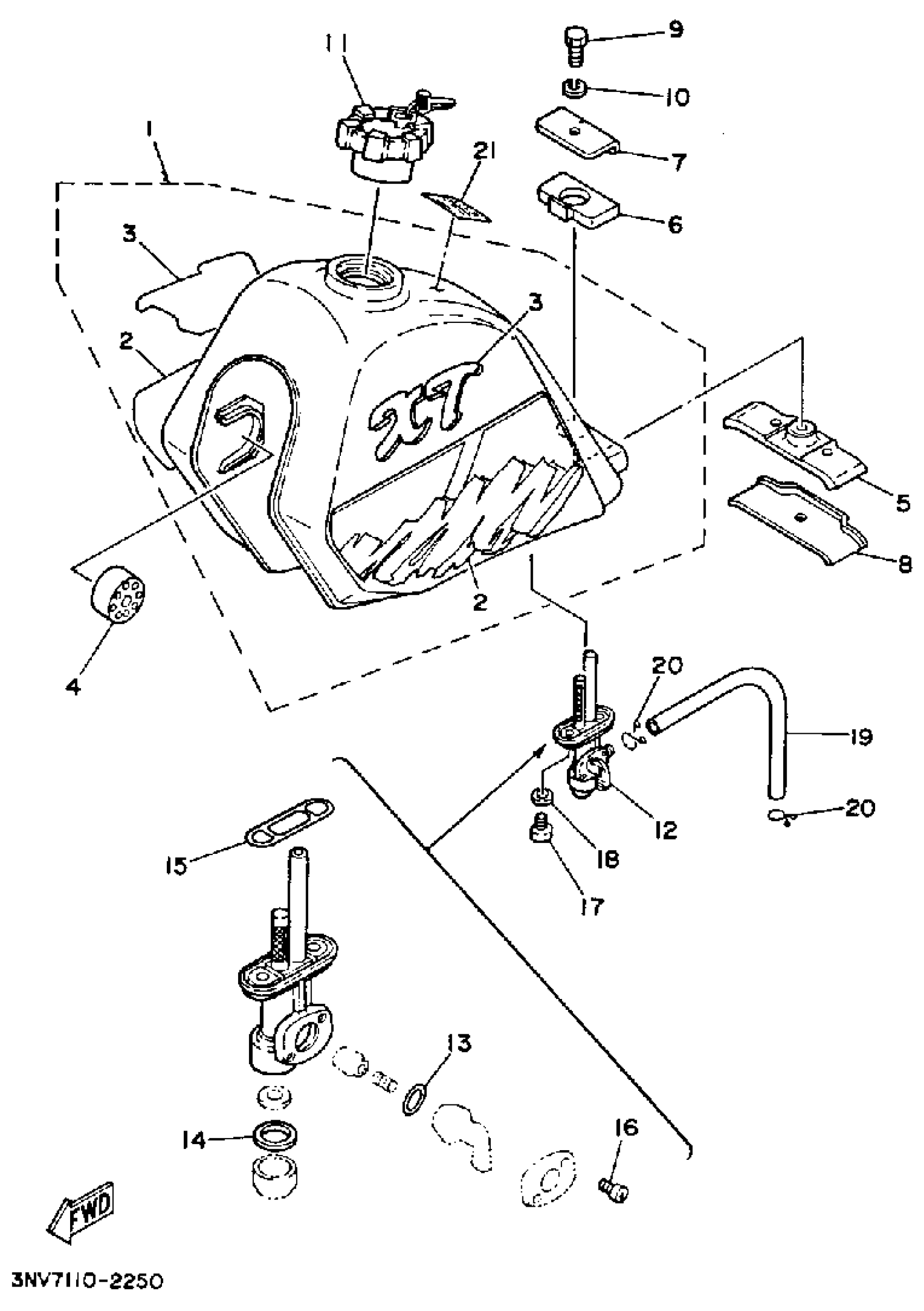

1993 Yamaha XT350 CA (XT350EC) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK COMP.

30X-24110-01-W6

1
Out of stock

2

. GRAPHIC SET

3NV-24240-00-00

1
Out of stock

3

. EMBLEM 1

3NV-24231-00-00

1
Out of stock

4

DAMPER, LOCATING 1

4L0-24181-00-00

1

$9.32

In stock

5

DAMPER, LOCATING 2

30X-24182-01-00

1

$18.40

In stock

6

DAMPER, LOCATING 3

30X-24183-01-00

1

$6.28

In stock

7

WASHER, SPECIAL

30X-24186-01-00

1

$6.72

In stock

8

WASHER, SPECIAL

30X-24187-00-00

1

$21.60

In stock

9

BOLT (661)

97013-06012-00

1

$4.71

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

CAP ASSY

48Y-24602-00-00

—
Out of stock

12

FUEL COCK ASSY 1

23F-24500-20-00

1

$35.96

In stock

13

O-RING

4X8-24534-00-00

1

$12.28

In stock

14

GASKET

4X8-24565-10-00

1
Out of stock

15

O-RING

4X8-24512-00-00

1
Out of stock

16

SCREW

4X8-24535-00-00

—
Out of stock

17

SCREW 256241430000

90149-06011-00

—

$1.58

In stock

18

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

19

HOSE (L200)

90445-10752-00

—

$3.88

In stock

20

CLIP

90467-090A2-00

—

$2.51

In stock

21

LABEL, CAUTION

3MX-2118K-00-00

1
Out of stock
