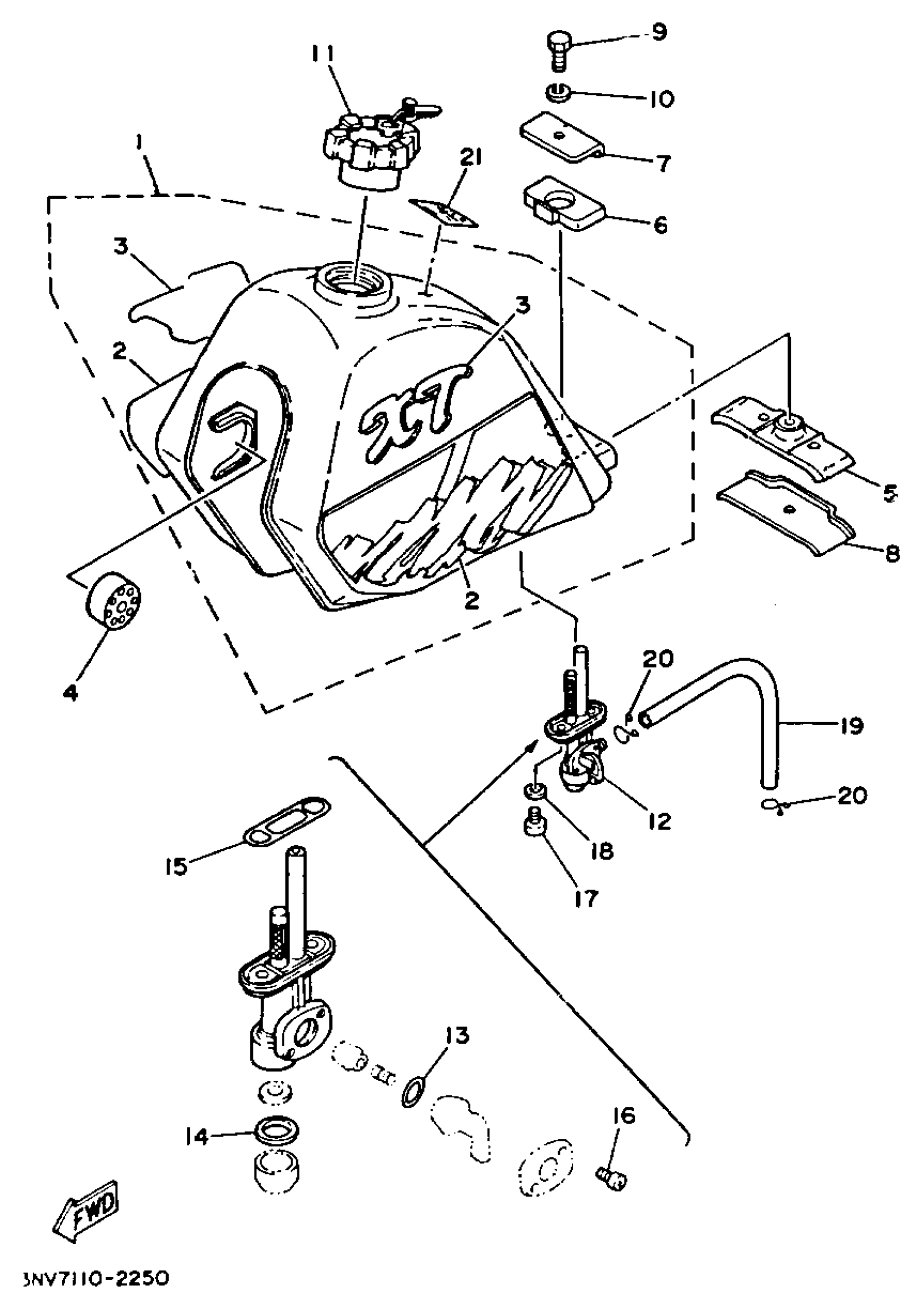

Yamaha XT350DC (XT350 CA) 1992 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

30X-24110-01-W6

Unavailable

2

. GRAPHIC SET

3NV-24240-00-00

Unavailable

3

. EMBLEM 1

3NV-24231-00-00

Unavailable

4

DAMPER, LOCATING 1

4L0-24181-00-00

$8.31

5

DAMPER, LOCATING 2

30X-24182-01-00

$18.12

6

DAMPER, LOCATING 3

30X-24183-01-00

$5.98

7

WASHER, SPECIAL

30X-24186-01-00

$6.42

8

WASHER, SPECIAL

30X-24187-00-00

$21.27

9

BOLT (661)

97013-06012-00

$6.49

10

WASHER, SPRING

92995-06100-00

$2.83

11

CAP ASSY

48Y-24602-00-00

Unavailable

12

FUEL COCK ASSY 1

23F-24500-20-00

$35.23

13

O-RING

4X8-24534-00-00

$10.96

14

GASKET

4X8-24565-10-00

$5.76

15

O-RING

4X8-24512-00-00

$6.73

16

SCREW

4X8-24535-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable

21

LABEL, CAUTION

3MX-2118K-00-00

Unavailable
