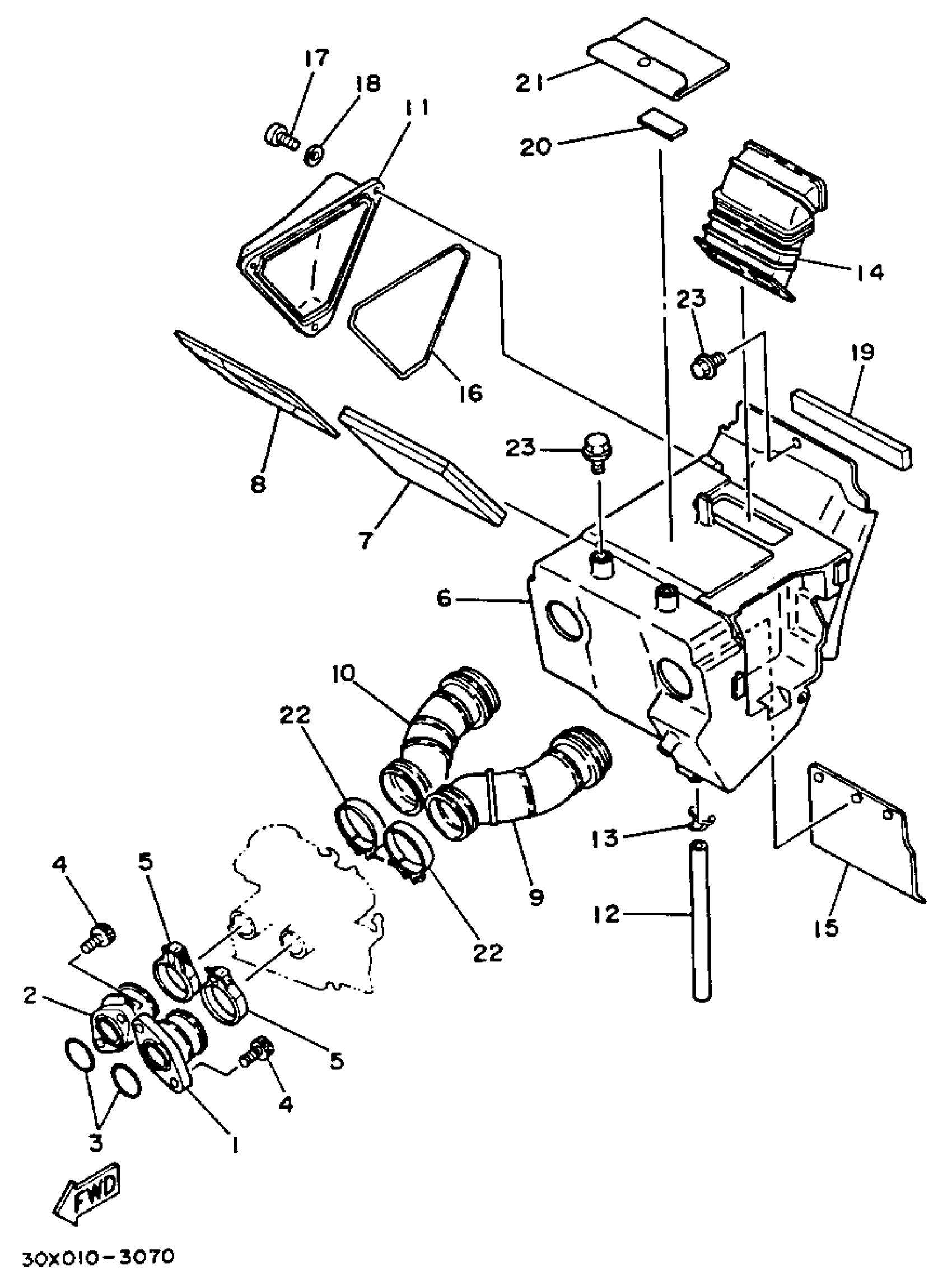

Yamaha XT350DC (XT350 CA) 1992 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

55V-13586-01-00

$110.45

2

JOINT, CARBURETOR

42U-13596-01-00

$113.48

3

O-RING (30X)

93210-30611-00

$10.31

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

BAND

4TR-13474-02-00

$9.08

6

AIR CLEANER CASE ASSEMBLY

30X-14401-00-00

Unavailable

7

ELEMENT, AIR CLEANER

30X-14451-01-00

$7.35

8

GUIDE

30X-14458-00-00

Unavailable

9

JOINT, AIR CLEANER 1

30X-14453-01-00

Unavailable

10

JOINT

30X-14454-01-00

Unavailable

11

CAP, CLEANER CASE 1

30X-14412-00-00

Unavailable

12

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$8.54

13

CLIP(6M6)

90467-13M13-00

$7.39

14

DUCT

30X-14437-00-00

Unavailable

15

FLAP

30X-21621-00-00

Unavailable

16

SEAL

51Y-14462-00-00

Unavailable

17

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

18

WASHER, PLAIN (646)

92990-05600-00

Unavailable

19

DAMPER 2

30X-14426-00-00

Unavailable

20

HOOK

4K5-2814E-10-00

Unavailable

21

POUCH

4U7-28186-00-00

Unavailable

22

CLAMP HOSE 278144550000

90460-49058-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable
