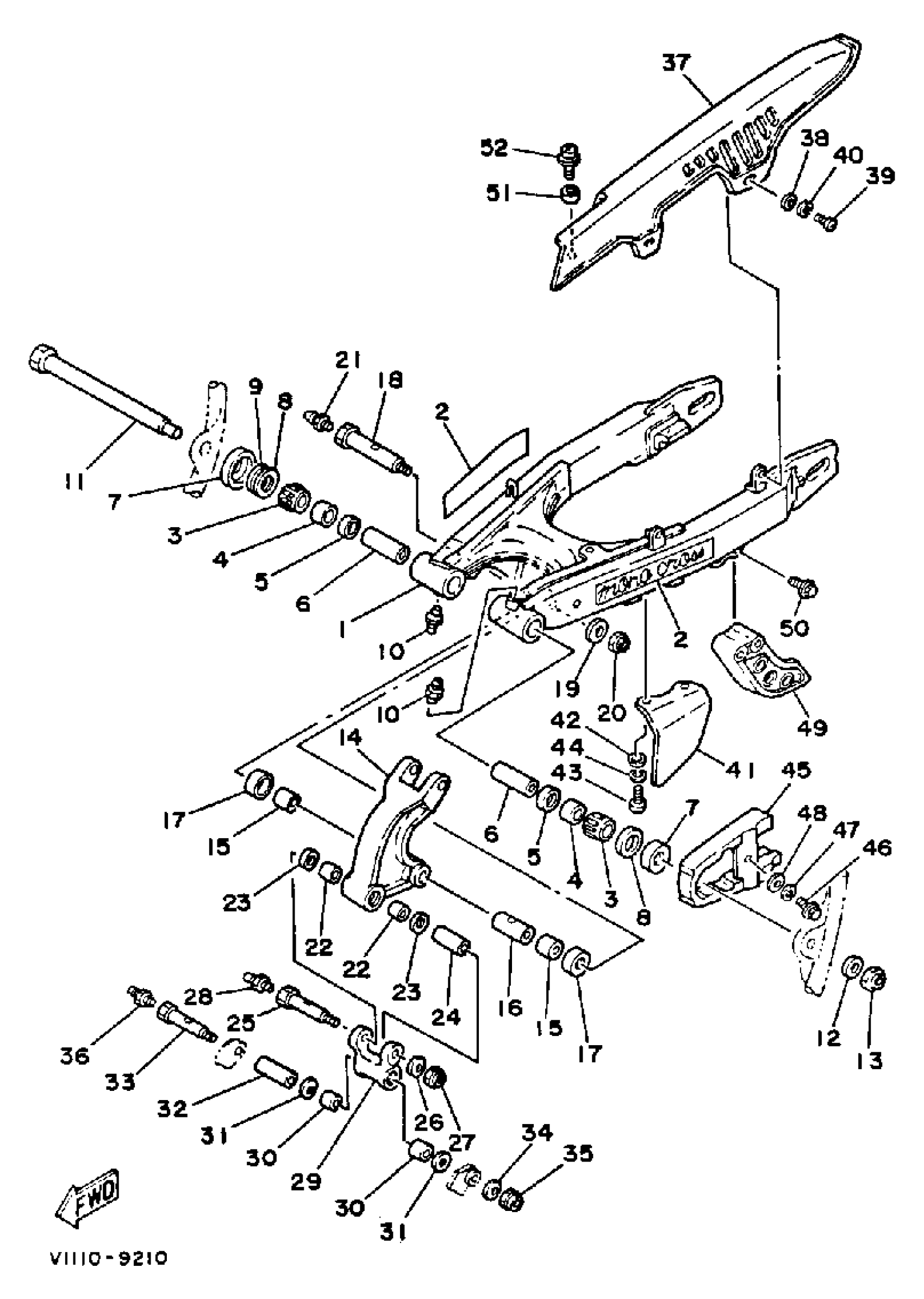

Yamaha XT350BC (XT350 CA) 1991 SWING ARM Diagram

#

Description
Price

1

REAR ARM

55V-22110-00-35

Unavailable

2

EMBLEM, REAR ARM

2HH-2218A-00-00

Unavailable

3

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

4

BUSH, SOLID (23X)

90380-22111-00

$19.99

5

OIL SEAL (23X)

93106-22019-00

$11.49

6

BUSH 2

3Y1-22124-01-00

Unavailable

7

COVER, THRUST

322-22128-01-00

$35.99

8

WASHER, PLATE (4H7)

90201-243A2-00

Unavailable

9

SHIM,REAR ARM

240-22127-00-00

$6.99

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

SHAFT, PIVOT

30X-22141-00-00

Unavailable

12

WASHER, PLATE (3X3)

90201-15797-00

$9.49

13

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

14

ARM, RELAY

30X-2217A-00-00

Unavailable

15

BUSH (30X)

90386-20120-00

$19.99

16

COLLAR (30X)

90387-140J9-00

Unavailable

17

COVER, THRUST 1

30X-22128-00-00

Unavailable

18

BOLT

90109-121A1-00

Unavailable

19

WASHER, PLATE (8K2)

90201-120A5-00

Unavailable

20

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

BUSH (26H)

90386-18115-00

Unavailable

23

OIL SEAL (2J5)

93109-18020-00

Unavailable

24

COLLAR (38M)

90387-126J8-00

Unavailable

25

BOLT (30X)

90109-10752-00

Unavailable

26

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

27

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

28

NIPPLE, GREASE (36X)

93700-06009-00

Unavailable

29

ROD, CONNECTING 1

30X-2217F-01-00

Unavailable

30

BUSH (26H)

90386-18115-00

Unavailable

31

OIL SEAL (2J5)

93109-18020-00

Unavailable

32

COLLAR(38W)

90387-121L6-00

Unavailable

33

BOLT (30X)

90109-10752-00

Unavailable

34

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

35

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

36

NIPPLE, GREASE

93700-06M03-00

Unavailable

37

CASE, CHAIN

38M-22311-00-00

Unavailable

38

WASHER (3R8)

90209-06187-00

Unavailable

39

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

40

WASHER, SPRING

92907-06100-00

Unavailable

41

CASE, CHAIN 2

30X-22312-01-00

Unavailable

42

WASHER (3R8)

90209-06187-00

Unavailable

43

SCREW, PAN

98517-06012-00

Unavailable

44

WASHER, SPRING

92907-06100-00

Unavailable

45

SEAL, GUARD

42U-22151-01-00

Unavailable

46

BOLT, HEXAGON

97017-06012-00

Unavailable

47

WASHER, SPRING

92907-06100-00

Unavailable

48

WASHER (3R8)

90209-06187-00

Unavailable

49

GUARD, CHAIN

30X-22153-00-00

Unavailable

50

BOLT, FLANGE

95817-06050-00

Unavailable

51

COLLAR

90387-06704-00

Unavailable

52

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable
