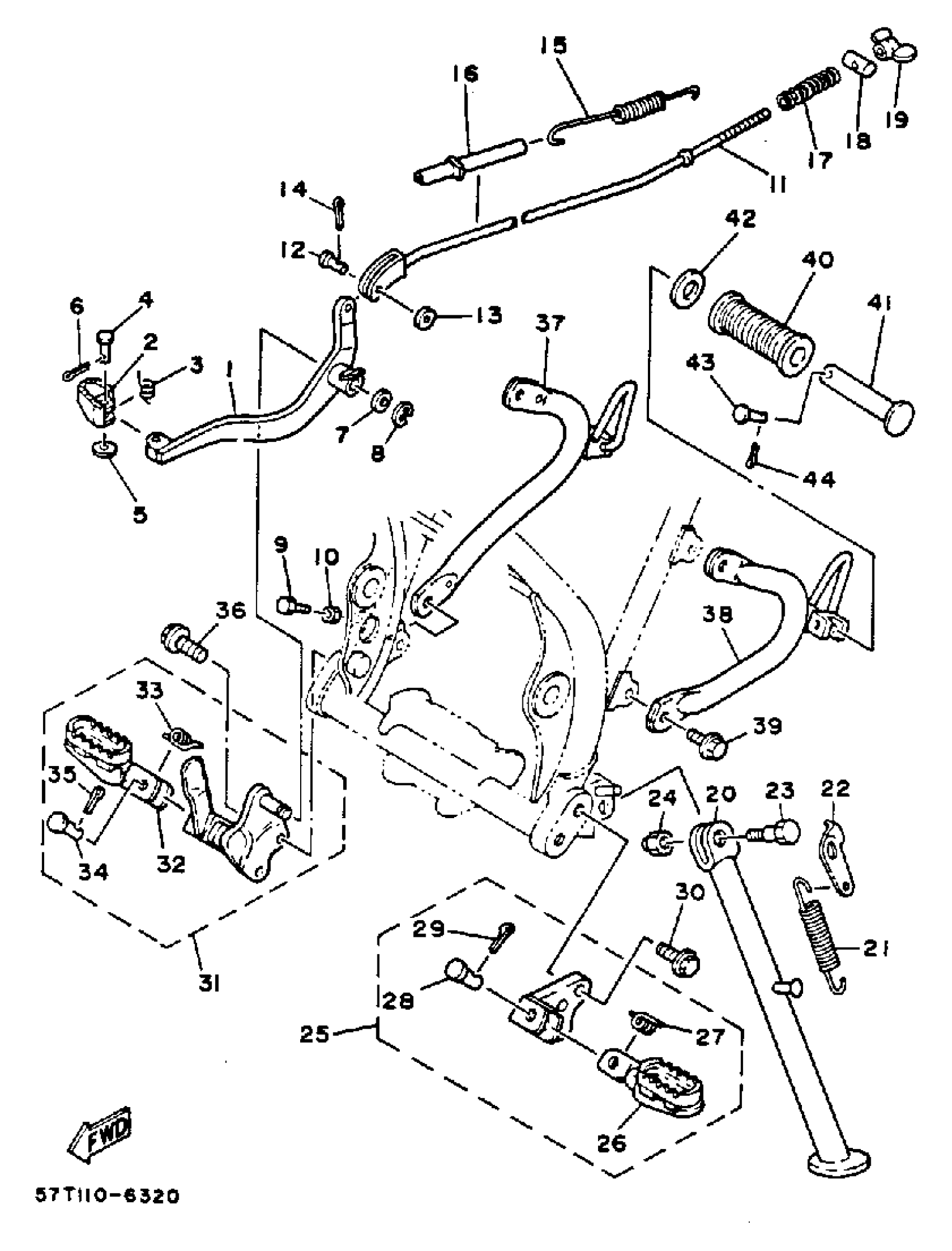

Yamaha XT350BC (XT350 CA) 1991 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

55V-27211-00-00

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

PIN, COTTER

91490-20025-00

$1.99

7

WASHER, PLATE (525)

90201-12541-00

$7.49

8

CIRCLIP (4V2)

93430-09038-00

$9.49

9

BOLT, HEXAGON

97017-06025-00

$4.24

10

NUT(650)

95380-06700-00

$8.49

11

ROD, BRAKE

30X-27231-00-00

Unavailable

12

PIN, CLEVIS (24X)

90240-06103-00

$7.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

PIN, COTTER

91490-20025-00

$1.99

15

SPRING, TENSION

90506-18289-00

$14.99

16

COVER, SPRING

1M1-27244-00-00

Unavailable

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable

19

NUT (25K)

90179-06411-00

Unavailable

20

STAND SIDE

55V-27311-02-00

Unavailable

21

SPRING, MAIN STAND

4KN-27116-00-00

Unavailable

22

LINK, SIDE STAND

42U-27315-01-00

Unavailable

23

BOLT

90109-10635-00

Unavailable

24

NUT, U

90185-10037-00

Unavailable

25

FRONT FOOTREST ASSEMBLY (LEFT)

30X-27410-00-90

Unavailable

26

FOOTREST 1

22W-27411-01-90

Unavailable

27

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

28

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable

30

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

31

FRONT FOOTREST ASSEMBLY (RIGHT)

55V-27420-00-90

Unavailable

32

FOOTREST 2

22W-27421-01-90

Unavailable

33

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

34

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

35

PIN, COTTER

91490-25020-00

Unavailable

36

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

37

BRACKET 2

55V-27442-10-00

Unavailable

38

BRACKET 1

26F-27432-10-00

Unavailable

39

BOLT (34L)

90109-08789-00

Unavailable

40

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

41

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

42

WASHER, PLATE (888)

90201-20279-00

Unavailable

43

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

44

PIN, COTTER

91490-16020-00

Unavailable
