Description

Price

1

HOLDER, LEVER 1

1LN-82911-00-00

$40.99

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

3

LEVER 1

3FY-83912-02-00

$28.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

WASHER(3SX)

92907-05100-00

$8.49

9

LEVER R

3FY-83922-01-00

$31.99

9

BOLT (4L0)

90109-06577-00

$5.60

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

15

FRONT STOP SWITCH ASSY

3YF-83980-00-00

$47.99

16

SWITCH, HANDLE 1

43F-83976-00-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

$4.25

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable

19

SWITCH, HANDLE 3

21T-83973-01-00

Unavailable

20

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

21

SCREW, PAN HEAD

98517-05030-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable

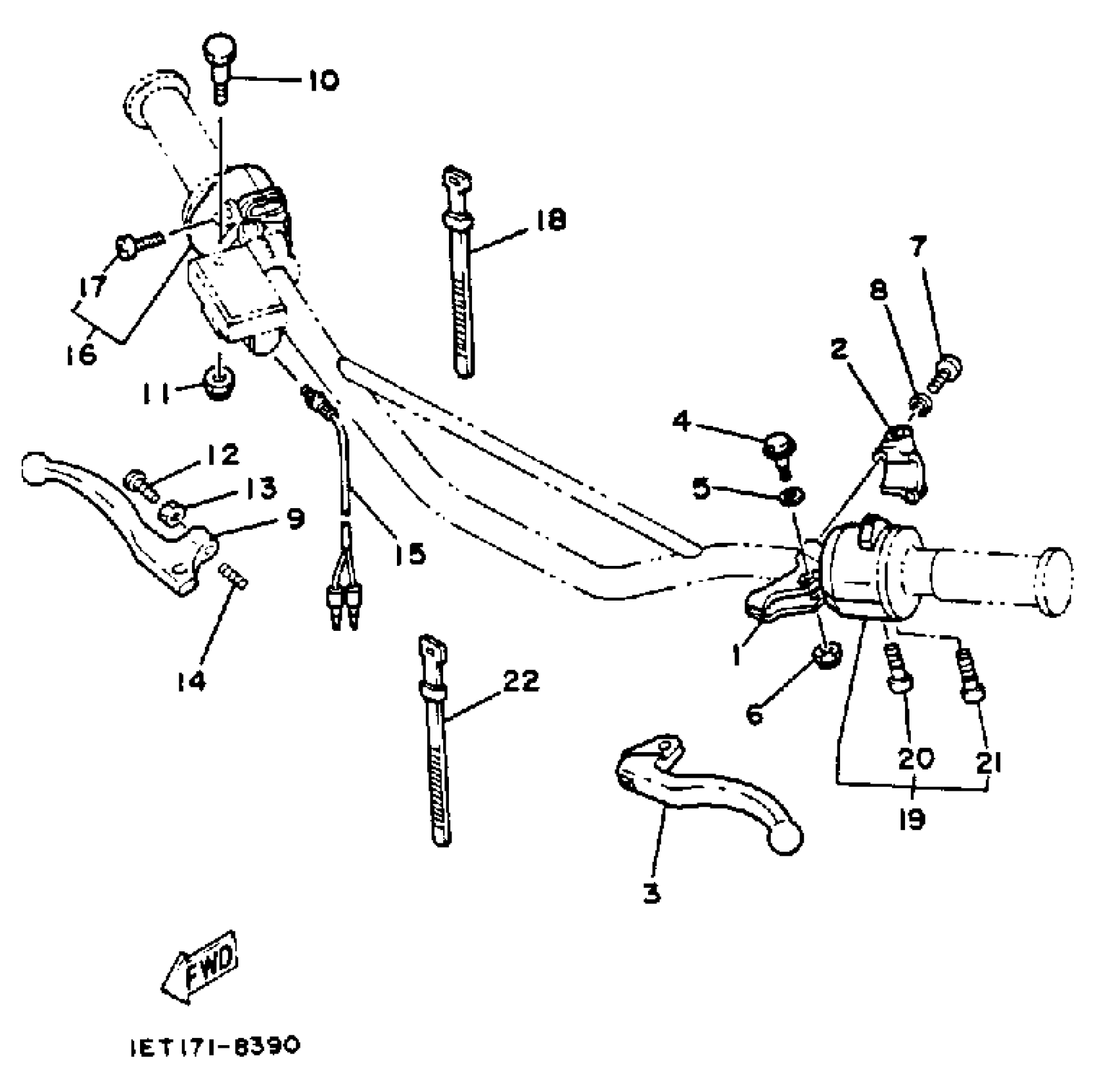

Yamaha XT350BC (XT350 CA) 1991 HANDLE SWITCH - LEVER Diagram

HOLDER, LEVER 1

HOLDER, LEVER LOWER 1

LEVER 1

BOLT (2YK1)

WASHER, PLATE 1562722600

NUT, SELF-LOCKING

SCREW, PAN HEAD

WASHER(3SX)

LEVER R

BOLT (4L0)

NUT, SELF-LOCKING

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

FRONT STOP SWITCH ASSY

SWITCH, HANDLE 1

SCREW, PAN HEAD

BAND, SWITCH CORD

SWITCH, HANDLE 3

SCREW, PAN HEAD(41N)

SCREW, PAN HEAD

BAND, SWITCH CORD
