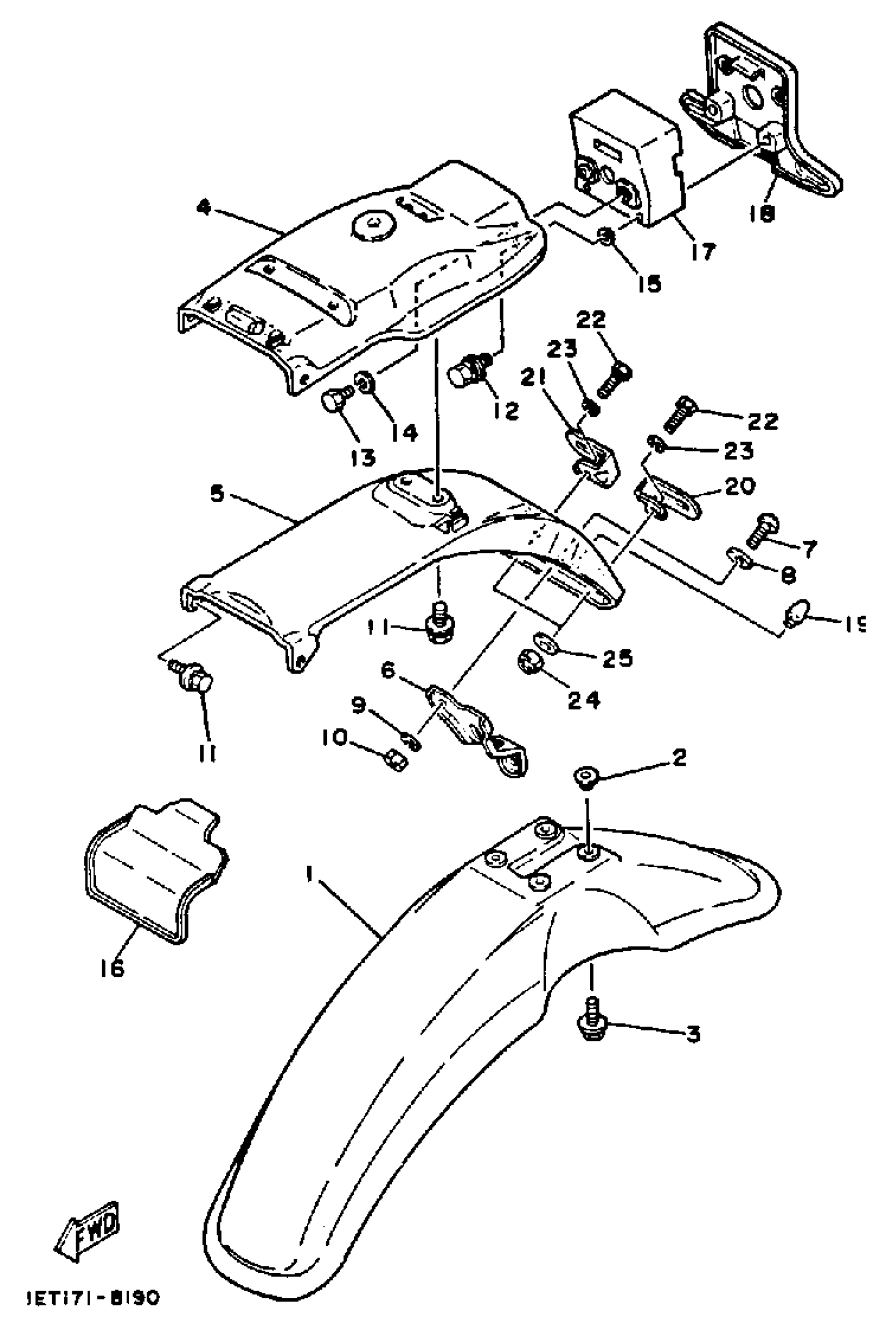

Yamaha XT350BC (XT350 CA) 1991 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (WHITE)

30X-21511-00-00

$60.99

2

COLLAR (8G8)

90387-06681-00

$9.49

3

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

4

FENDER, REAR

42U-21611-00-00

Unavailable

5

BRACKET, LICENSE

42U-21685-00-00

Unavailable

6

BRACKET, REFLECTOR

42U-21641-00-00

Unavailable

7

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

8

WASHER, PLATE 8221447500

90201-06057-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

12

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

13

BOLT

97001-06045-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE (8K2)

90201-06778-00

$4.46

16

GUARD, MUD

30X-21629-00-00

Unavailable

17

COVER, REAR FENDER 1

21T-2163A-00-00

Unavailable

18

BRACKET, LICENSE

21T-21685-20-00

Unavailable

19

DAMPER 2

42U-21639-00-00

Unavailable

20

BRACKET, REAR STAY

42U-21688-00-00

Unavailable

21

BRACKET, REAR STAY 2

42U-21689-00-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

WASHER, SPRING

92907-06100-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable

25

WASHER, PLATE 8221447500

90201-06057-00

$5.60
