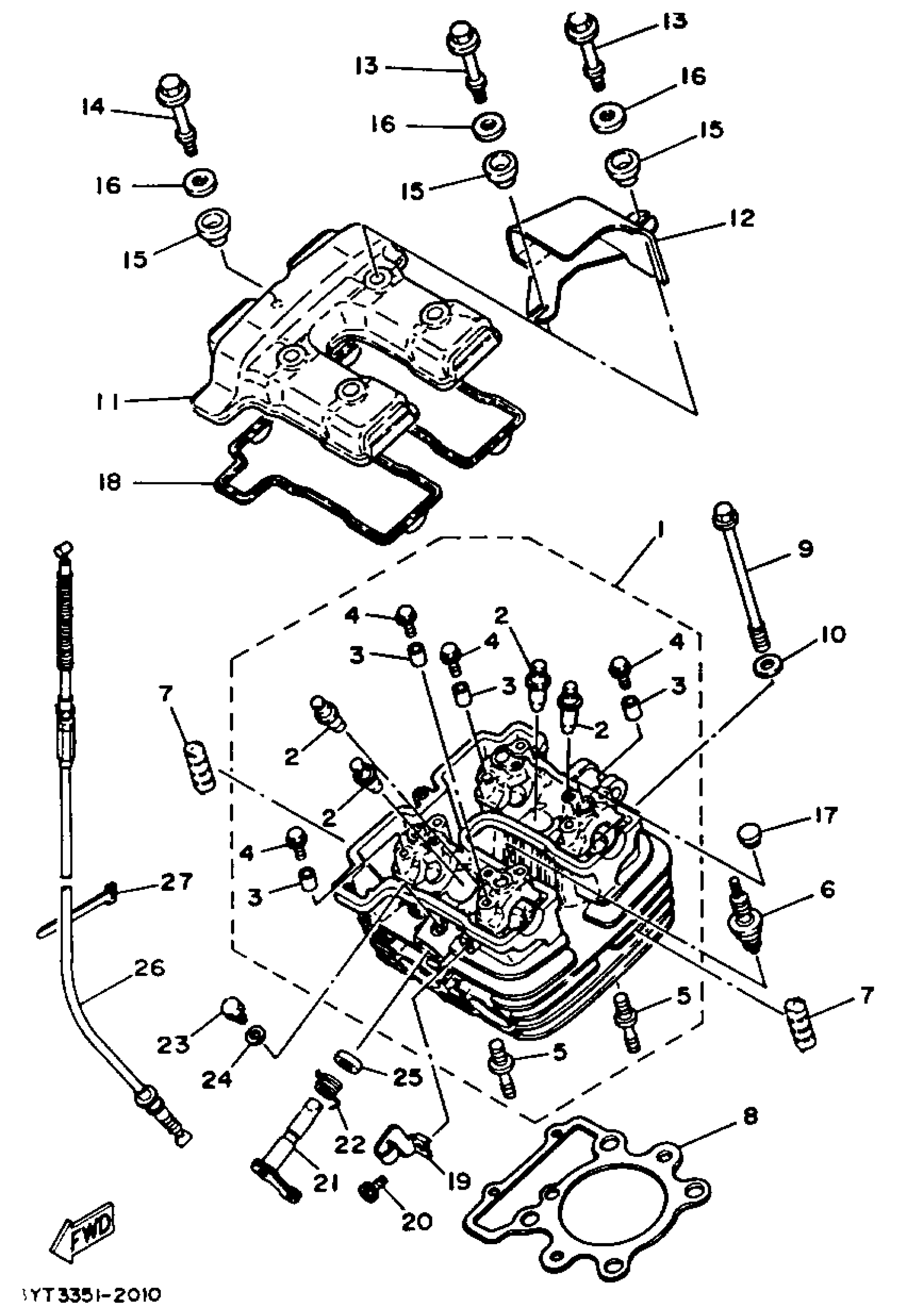

Yamaha XT350BC (XT350 CA) 1991 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

55V-11101-02-00

Unavailable

2

GUIDE KIT, INTAKE (55V)

99999-02242-00

$47.99

3

PIN, DOWEL(3XW)

91808-16023-00

$8.49

4

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

5

. BOLT, STUD

90116-10378-00

Unavailable

6

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable

7

ABSORBER 1

30X-11161-00-00

Unavailable

8

GASKET, CYLINDER HEAD 1

55V-11181-00-00

$61.99

9

BOLT, FLANGE

90105-10608-00

Unavailable

10

WASHER, PLATE (26H)

90201-102G9-00

$9.49

11

COVER, CYLINDER HEAD 1

30X-11191-01-00

Unavailable

12

COVER, CYLINDER HEAD 2

30X-11192-01-00

Unavailable

13

BOLT(3TJ)

90109-064F0-00

Unavailable

14

BOLT

90109-06584-00

Unavailable

15

RUBBER, MOUNT 1

2GH-1111G-00-00

$8.99

16

WASHER(46X)

90209-11262-00

Unavailable

17

PLUG (11H)

90338-11125-00

Unavailable

18

GASKET, HEAD COVER 1

30X-11193-01-00

Unavailable

19

BRACKET, DECOMPRESSION

30X-12283-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

Unavailable

21

CAM, DECOMPRESSION

30X-12288-00-00

Unavailable

22

SPRING, TORSION

90508-18606-00

Unavailable

23

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

24

GASKET 256113960000

90430-06014-00

Unavailable

25

SEAL, OIL (30X)

93102-12321-00

Unavailable

26

CABLE, DECOMPRESSION

30X-12292-00-00

Unavailable

27

BAND, SWITCH CORD

437-83936-01-00

Unavailable
