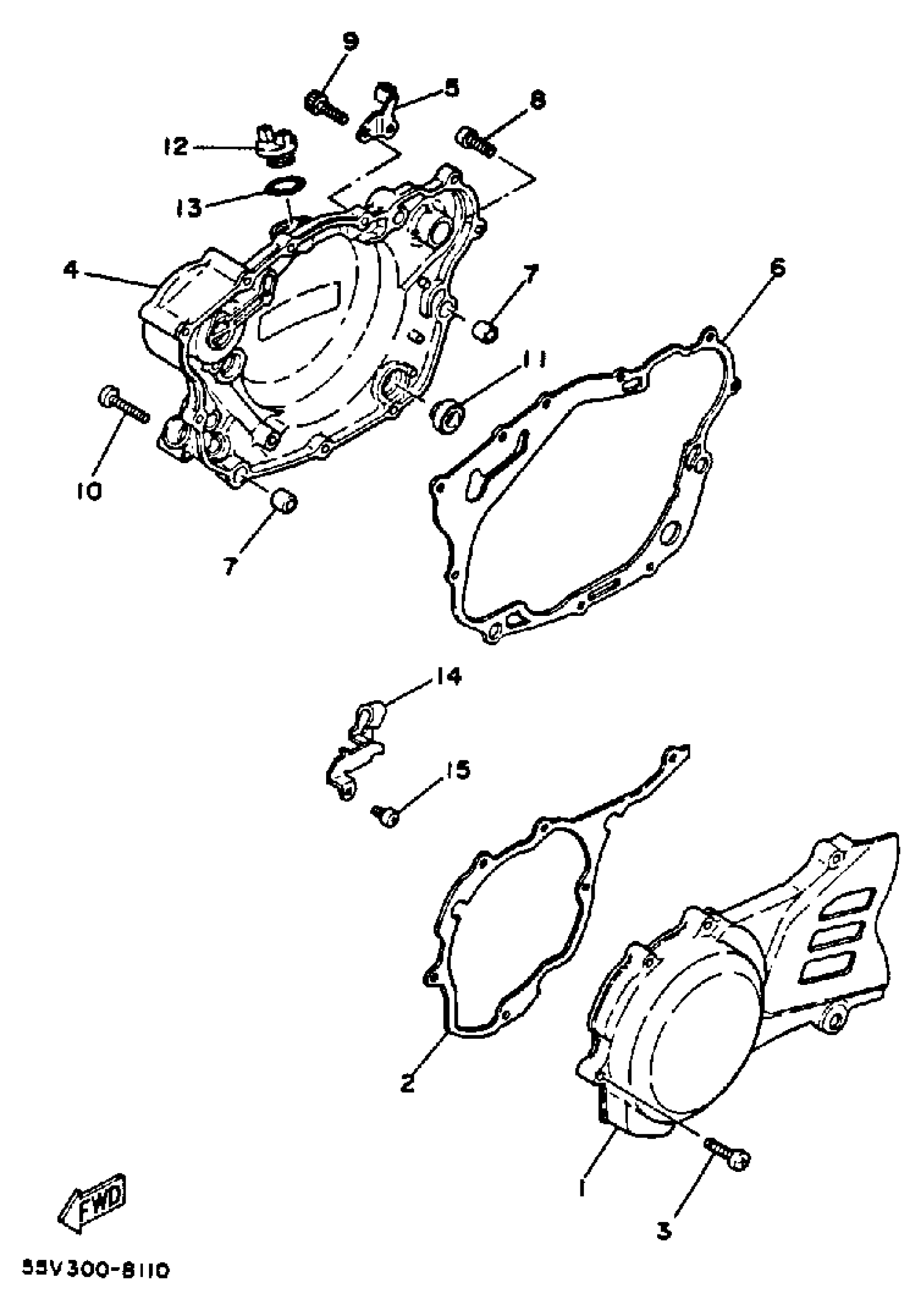

Yamaha XT350BC (XT350 CA) 1991 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE LH

30X-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4EL-15451-00-00

$25.99

3

SCREW, PAN

98517-06030-00

Unavailable

4

COVER, CRANKCASE 2

55V-15421-01-00

Unavailable

5

HOLDER

30X-15378-00-00

Unavailable

6

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

$24.99

7

PIN, DOWEL

99530-12016-00

$4.89

8

BOLT,SOCKET

91317-06025-00

$5.60

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

BOLT,SOCKET

91317-06040-00

$3.76

11

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

12

PLUG, OIL

3Y1-15363-10-00

$18.49

13

O-RING (646)

93210-19123-00

Unavailable

14

CLAMP

90462-08062-00

Unavailable

15

SCREW, PAN

98517-06012-00

$3.78
