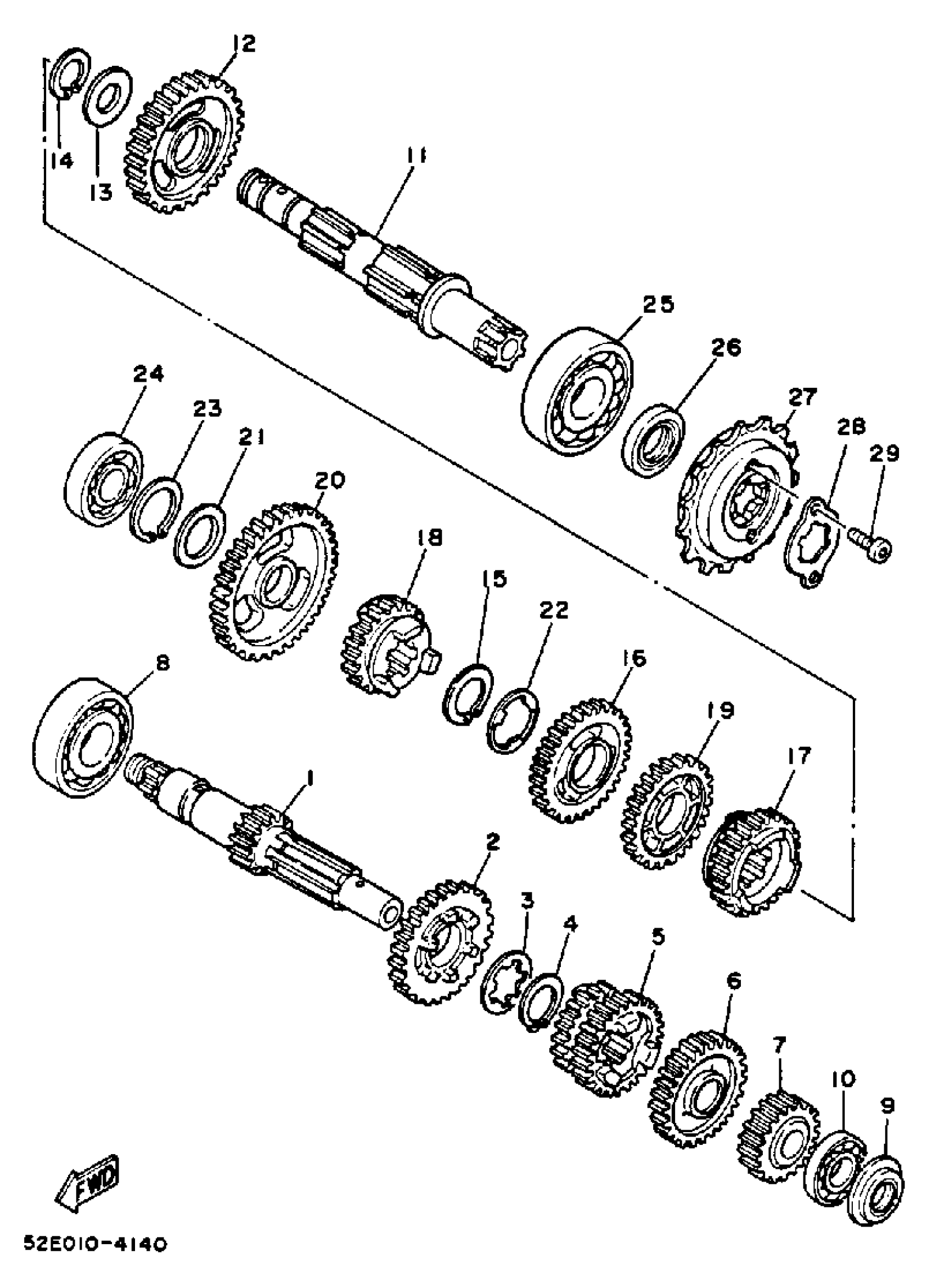

Yamaha XT350AC (XT350 CA) 1990 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

51Y-17411-00-00

Unavailable

2

GEAR, 6TH PINION

4GY-17161-01-00

Unavailable

3

WASHER (5H0)

90209-18208-00

$8.49

4

CIRCLIP (537)

93410-22039-00

$8.49

5

GEAR, 3RD PINION (25T)

55V-17131-00-00

Unavailable

6

GEAR, 5TH PINION

55V-17151-02-00

Unavailable

7

GEAR, 2ND PINION

51Y-17121-00-00

Unavailable

8

BEARING (30X)

93306-20447-00

$41.99

9

OIL SEAL (3Y1)

93101-17093-00

Unavailable

10

BEARING(2JN)

93306-00315-00

$33.99

11

DRIVE AXLE ASSY

55V-17402-00-00

Unavailable

12

GEAR, 2ND WHEEL (29T)

51Y-17221-00-00

Unavailable

13

WASHER (30X)

90209-23241-00

Unavailable

14

CIRCLIP (30X)

93410-26067-00

$8.49

15

CIRCLIP (537)

93410-22039-00

$8.49

16

GEAR, 3RD WHEEL (30T)

55V-17231-00-00

Unavailable

17

GEAR, 5TH WHEEL (24T)

55V-17251-00-00

Unavailable

18

GEAR, 6TH WHEEL (22T)

55V-17261-01-00

Unavailable

19

GEAR, 4TH WHEEL

4GY-17241-00-00

Unavailable

20

GEAR, 1ST WHEEL (37T)

51Y-17211-00-00

Unavailable

21

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

22

WASHER (5H0)

90209-18208-00

$8.49

23

CIRCLIP (525)

93410-17037-00

Unavailable

24

BEARING (30X)

93306-20332-00

Unavailable

25

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

26

OIL SEAL (3Y1)

93102-25226-00

Unavailable

27

SPROCKET, DRIVE 19T (55V1746190)

55V-17460-00-00

Unavailable

28

HOLDER, SPROCKET

3Y1-17456-00-00

Unavailable

29

BOLT(3JP)

97017-06010-00

Unavailable
