1990 Yamaha XT350 CA (XT350AC) Handle Switch Lever Diagram

← All diagrams

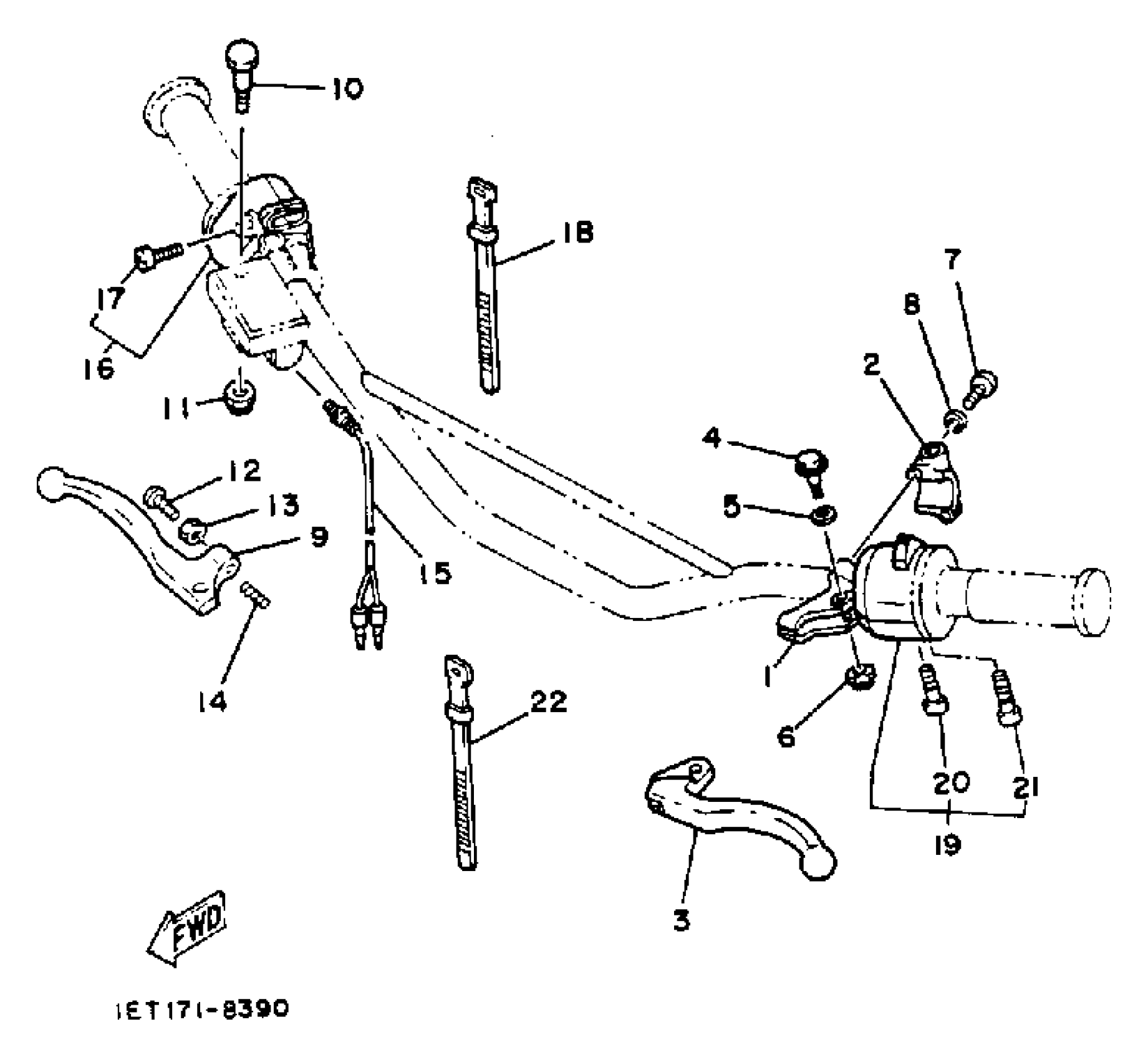

Find the part on the Handle Switch Lever diagram for your 1990 Yamaha XT350 CA (XT350AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT350 CA (XT350AC) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

1LN-82911-00-00

1

$34.43

In stock

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

1

$16.62

In stock

3

LEVER 1

3FY-83912-02-00

1
Out of stock

4

BOLT (2YK1)

90109-06799-00

1

$4.52

In stock

5

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

6

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

7

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

8

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

9

LEVER R

3FY-83922-01-00

1
Out of stock

10

BOLT (4L0)

90109-06577-00

1

$5.38

In stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

SCREW (2L0)

90149-06131-00

1

$6.17

In stock

13

NUT HEXAGON 306839270000

90170-06010-00

1

$6.17

In stock

14

1

$6.17

In stock

15

FRONT STOP SWITCH ASSY

3YF-83980-00-00

1

$40.54

In stock

16

SWITCH, HANDLE 1

43F-83976-00-00

1
Out of stock

17

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

18

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

19

SWITCH, HANDLE 3

21T-83973-01-00

1
Out of stock

20

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

21

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

22

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
