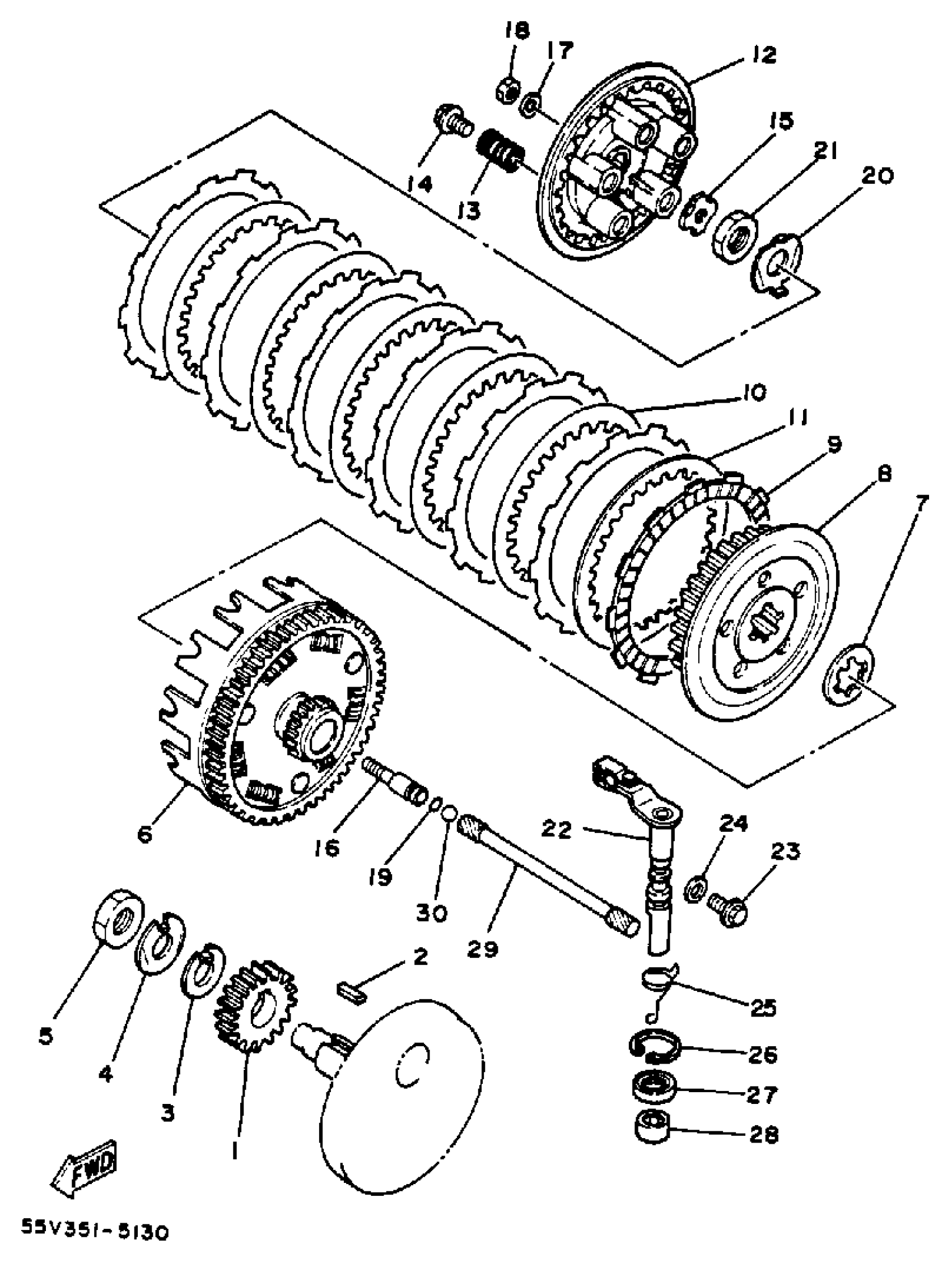

Yamaha XT350AC (XT350 CA) 1990 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (23T)

30X-16111-00-00

Unavailable

2

KEY, STRAIGHT (30X)

90282-07057-00

Unavailable

3

WASHER, LOCK (3Y1)

90215-16156-00

$7.49

4

WASHER, LOCK (30X)

90215-16222-00

$9.49

5

NUT(24V)

90170-16343-00

$14.99

6

PRIMARY DRIVEN GEAR COMP.

55V-16150-00-00

Unavailable

7

PLATE, THRUST 1

30X-16154-00-00

$25.99

8

BOSS, CLUTCH

55V-16371-00-00

Unavailable

9

PLATE, FRICTION

5Y1-16331-01-00

$29.99

10

PLATE, CLUTCH 2

168-16325-10-00

$14.49

11

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

12

PLATE, PRESSURE 1

5Y1-16351-00-00

$53.99

13

SPRING (583 CLUTCH)

90501-23391-00

$7.49

14

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

15

PLATE, PUSH

1W1-16358-01-00

$23.99

16

ROD, PUSH 1

55V-16356-00-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

O-RING (26H)

93210-06632-00

Unavailable

20

WASHER, LOCK (30X)

90215-16320-00

Unavailable

21

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

22

PUSH LEVER ASSEMBLY

55V-16380-00-00

Unavailable

23

SCREW 425163430000

90149-08067-00

Unavailable

24

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

25

SPRING, TORSION (3Y1)

90508-14433-00

Unavailable

26

CIRCLIP (3Y1)

93420-28055-00

Unavailable

27

OIL SEAL (3Y1)

93102-14209-00

Unavailable

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

29

ROD, PUSH 2

30X-16357-00-00

Unavailable

30

BALL (498)

93511-32027-00

Unavailable
