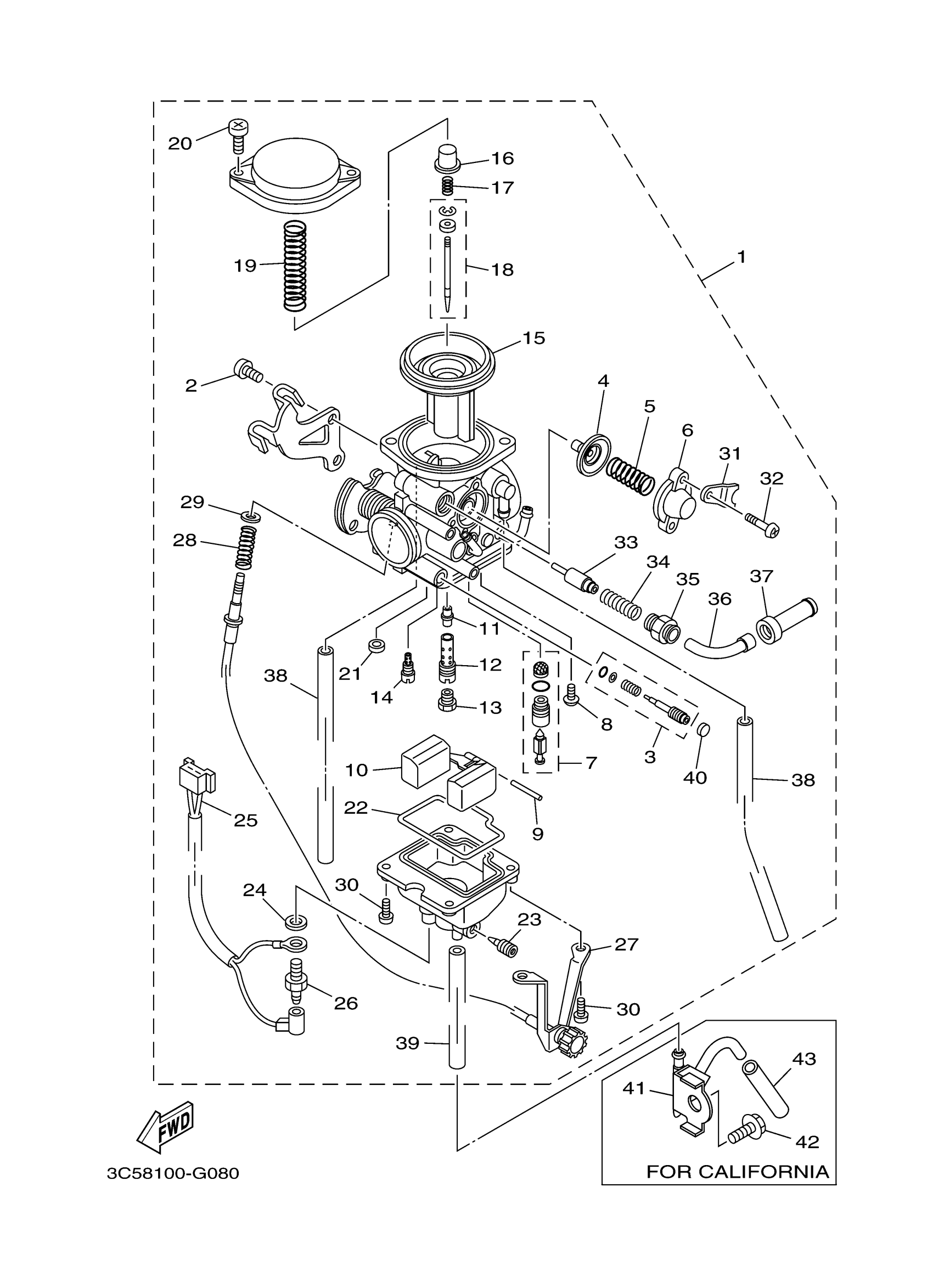

Yamaha XT250ZC (XT250 CA) 3C5J 2010 CARBURETOR Diagram
#
2
SCREW, PAN HEAD
5XT-14325-00-00
Unavailable
6
COVER 1
5LB-14293-00-00
Unavailable
8
SCREW, PAN HEAD
5XT-14325-10-00
Unavailable
10
FLOAT
5LB-14385-00-00
Unavailable
11
NOZZLE, MAIN
5XT-14341-00-00
Unavailable
13
JET, MAIN (# 135)
288-14343-68-00
Unavailable
16
SEAT, SPRING
5LB-14936-00-00
Unavailable
17
SPRING
5LB-14275-00-00
Unavailable
18
NEEDLE
3C5-14336-00-00
Unavailable
19
SPRING
5XT-14286-00-00
Unavailable
20
SCREW
5LB-14216-00-00
Unavailable
21
PLUG
50M-14355-01-00
Unavailable
22
GASKET, FLOAT CHAMBER
5LB-14384-00-00
Unavailable
23
SCREW, AIR ADJUSTING
5XT-14323-00-00
Unavailable
24
WASHER, PLATE
90201-08016-00
Unavailable
25
WIRE, SUB LEAD
5XT-82509-00-00
Unavailable
26
HEATER ASSY
5FU-83790-00-00
Unavailable
27
SCREW, THROTTLE
5XT-14321-00-00
Unavailable
28
SPRING, THROTTLE STOP
2JX-14333-00-00
Unavailable
29
WASHER, PLAIN
5LB-14357-00-00
Unavailable
30
SCREW
5LB-14592-00-00
Unavailable
31
BRACKET 2
5XT-14292-00-00
Unavailable
32
SCREW, LEVER FITTING
214-24535-00-00
Unavailable
33
PLUNGER, STARTER
5XT-14371-10-00
Unavailable
34
SPRING, PLUNGER
5XT-14335-00-00
Unavailable
35
CAP, PLUNGER
5XT-14374-00-00
Unavailable
36
PIPE 1
5XT-14348-00-00
Unavailable
37
CAP
1JK-14363-00-00
Unavailable
38
PIPE
3C5-14148-00-00
Unavailable
39
. PIPE, OVER FLOW 1
3C5-14196-00-00
Unavailable
40
PLUG
3C5-14355-00-00
Unavailable
