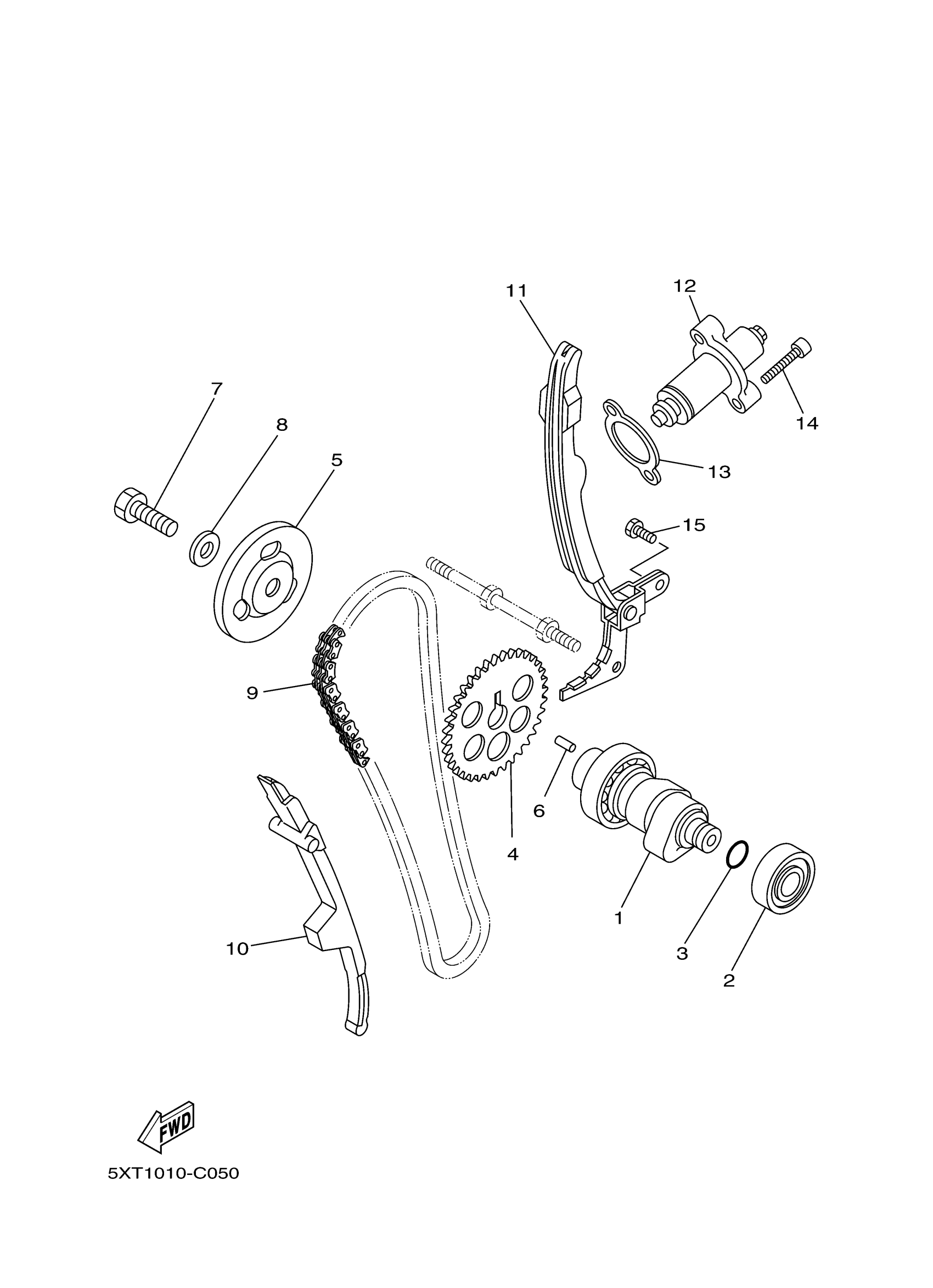

Yamaha XT250ZC (XT250 CA) 3C5J 2010 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5XT-12170-00-00

Unavailable

2

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$20.23

3

O-RING (4G0)

93210-11453-00

$5.47

4

SPROCKET, CAM CHAIN

5XT-12176-00-00

$42.94

5

PLATE, BREATHER 2

4KB-11145-00-00

$9.51

6

PIN,DOWEL (603)

93604-10011-00

$4.89

7

BOLT

90101-10016-00

$3.53

8

WASHER, PLATE (3L6)

90201-10774-00

$5.81

9

CHAIN

94582-19104-00

$13.70

10

GUIDE, STOPPER 1

5BP-12231-01-00

$51.86

11

GUIDE, STOPPER 2

5XT-12241-02-00

$33.98

12

TENSIONER ASSY, CAM CHAIN

5XT-12210-00-00

$67.42

13

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

14

BOLT,SOCKET HEAD

91314-06025-00

$6.22

15

BOLT

97012-06014-00

$5.81
