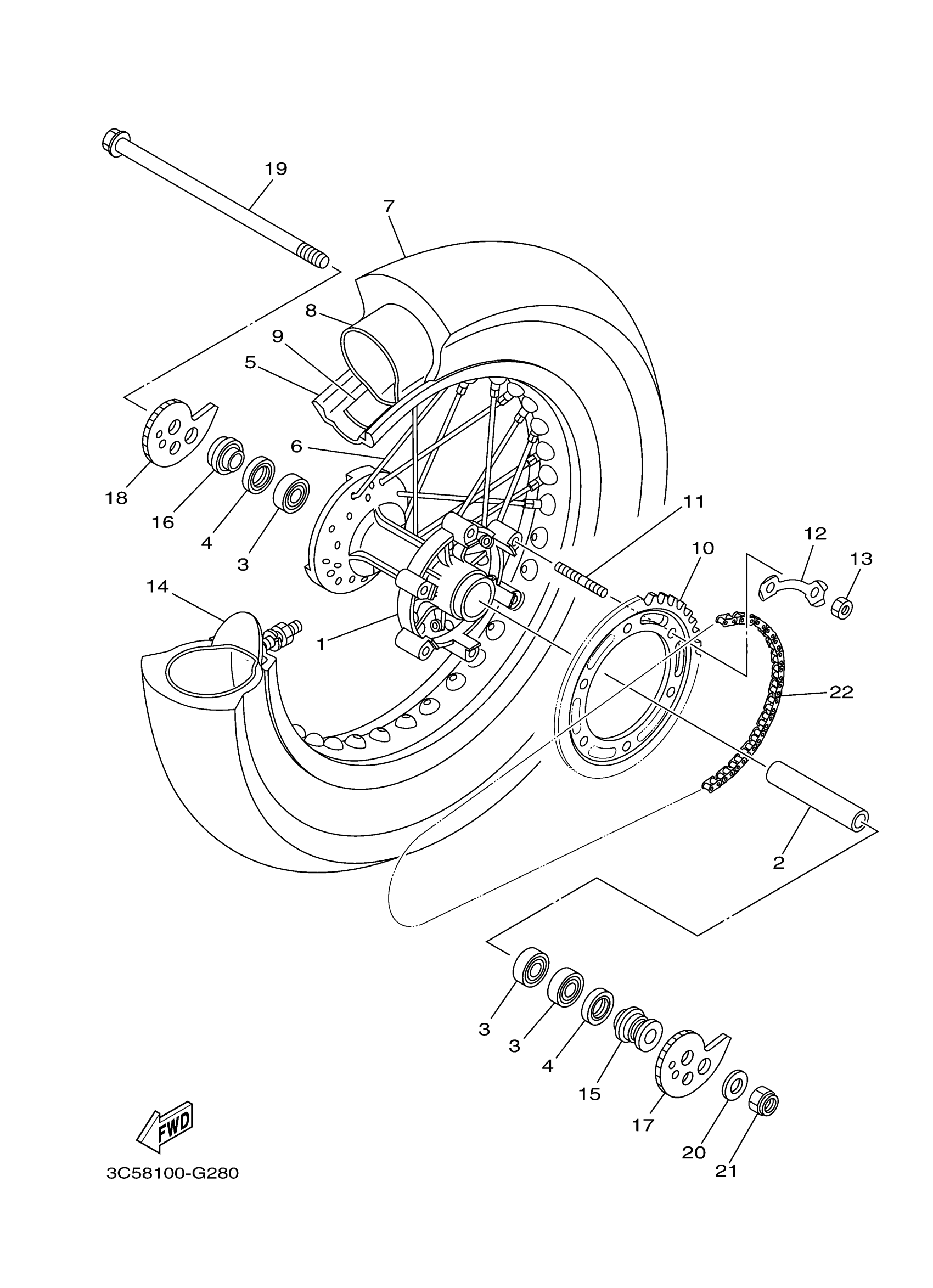

Yamaha XT250YC (XT250 CA) 3C5E 2009 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4JG-25311-02-35

Unavailable

2

SPACER

90560-15313-00

$46.99

3

BEARING(3DL)

93306-20226-00

$38.99

4

OIL SEAL(4DA)

93106-22032-00

$11.49

5

RIM (2.15-18)(3ET)

94421-18468-00

Unavailable

6

SPOKE SET, REAR

4JG-25304-00-00

$94.99

7

TIRE(120/80-18 M/C 26P)

94112-18028-00

Unavailable

8

TUBE (2RH)

94232-18113-00

$29.99

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

SPROCKET, DRIVEN (48T)

3C5-25448-10-00

$51.99

11

BOLT, STUD (483)

90116-08218-00

$8.49

12

WASHER

4JG-25412-00-00

$10.99

13

NUT (3Y2)

90170-08258-00

$3.50

14

SPACER, BEAD

3Y1-25394-00-00

Unavailable

15

COLLAR, WHEEL

5XT-25383-00-00

$20.99

16

COLLAR, WHEEL

4JG-25383-00-00

Unavailable

17

PULLER, CHAIN 1

5XT-25388-00-00

Unavailable

18

PULLER, CHAIN 2

5XT-25389-00-00

Unavailable

19

AXLE, WHEEL

2K6-25381-10-00

Unavailable

20

WASHER, PLATE

90201-15014-00

Unavailable

21

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

22

CHAIN

94581-36128-00

Unavailable
