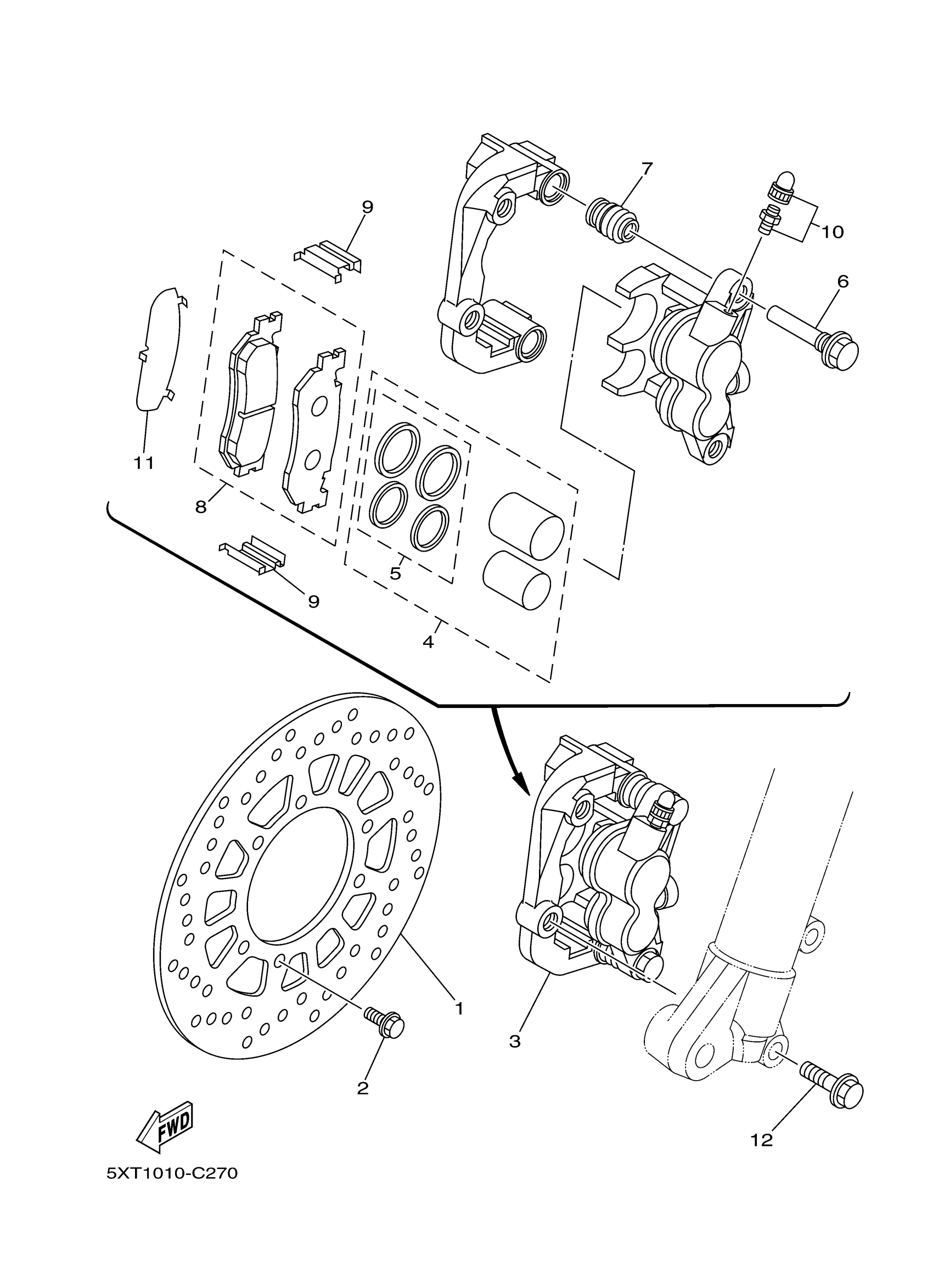

Yamaha XT250YC (XT250 CA) 3C5E 2009 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

3C5-2582T-00-00

$218.99

2

BOLT, FLANGE

90105-06109-00

$9.49

3

CALIPER ASSY (LEFT)

3C5-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4JG-25802-00-00

$68.99

5

CALIPER SEAL KIT

4JG-25803-00-00

$19.49

6

PIN, SLIDE

5JW-25914-10-00

$22.99

7

BOOT 2

4TT-25937-00-00

$16.49

8

BRAKE PAD KIT

3C5-25805-00-00

$48.99

9

SUPPORT, PAD

4TT-25919-00-00

$11.99

10

BLEED SCREW KIT

15B-W0048-00-00

$19.99

11

SHIM, CALIPER

5XT-25828-00-00

Unavailable

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
