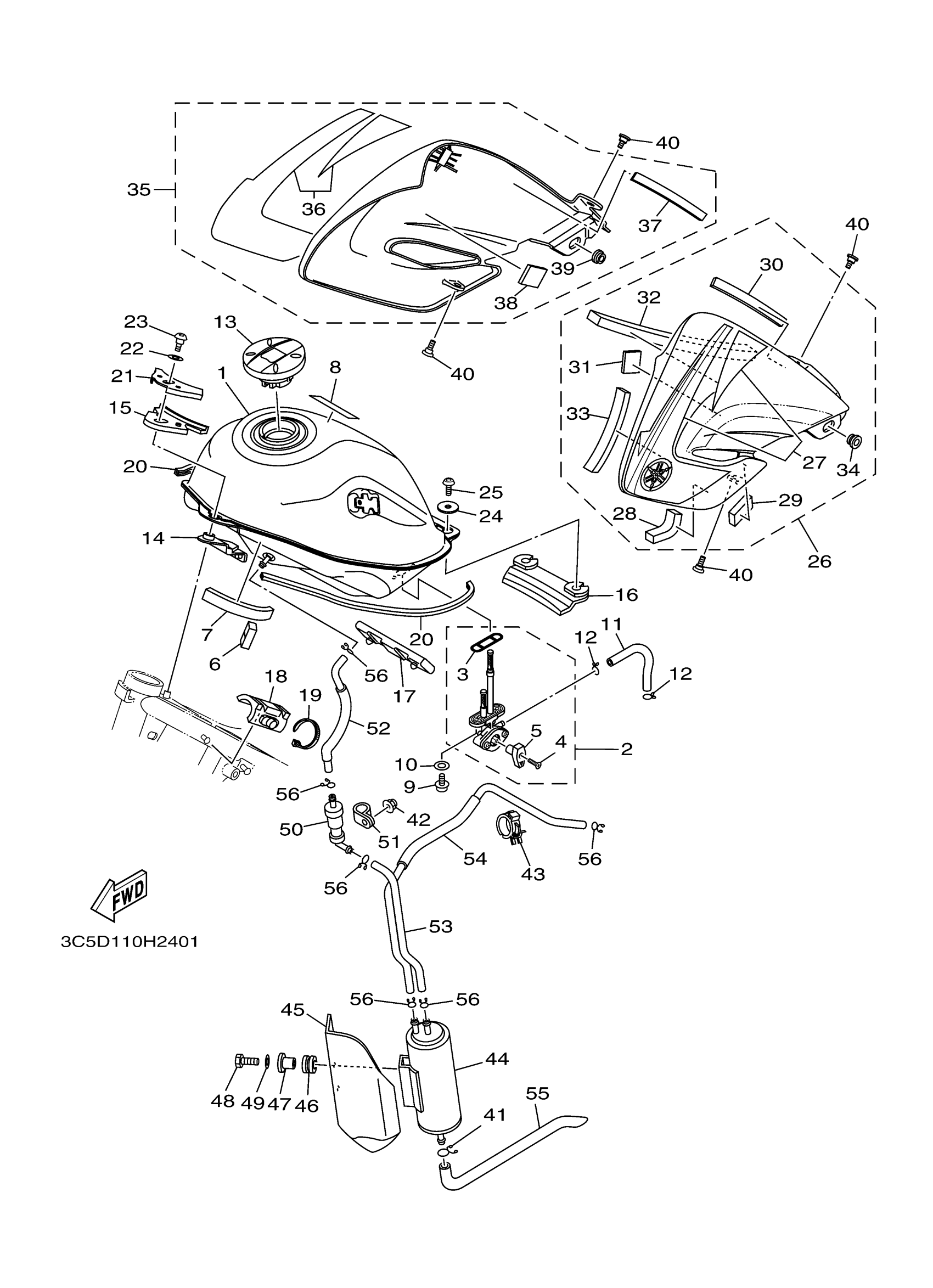

Yamaha XT250XC (XT250 CA) 3C59 2008 FUEL TANK Diagram
#
1
FUEL TANK COMP.
3C5-24110-10-P0
Unavailable
1
FUEL TANK COMP.
3C5-24110-30-P1
Unavailable
2
FUEL COCK ASSY 1
3C5-24500-00-00
Unavailable
5
LEVER, COCK
3C5-24524-00-00
Unavailable
6
DAMPER, PLATE 5
3C5-2414P-00-00
Unavailable
7
INSULATOR, FUEL TANK 1
3C5-2416F-00-00
Unavailable
11
HOSE
90445-10829-00
Unavailable
13
CAP ASSY
5VK-24602-20-00
Unavailable
14
DAMPER, LOCATING 1
3C5-24181-00-00
Unavailable
14
DAMPER, LOCATING 1
3C5-24181-10-00
Unavailable
14
DAMPER, LOCATING 1
3C5-24181-10-00
Unavailable
15
DAMPER, LOCATING 3
3C5-24183-00-00
Unavailable
16
DAMPER, LOCATING 2
3C5-24182-00-00
Unavailable
16
DAMPER, LOCATING 2
3C5-24182-10-00
Unavailable
16
DAMPER, LOCATING 2
3C5-24182-10-00
Unavailable
17
DAMPER, LOCATING 5
3C5-24185-00-00
Unavailable
17
DAMPER, LOCATING 5
3C5-24185-10-00
Unavailable
17
DAMPER, LOCATING 5
3C5-24185-10-00
Unavailable
18
DAMPER, LOCATING 4
3C5-24184-00-00
Unavailable
18
DAMPER, LOCATING 4
3C5-24184-10-00
Unavailable
18
DAMPER, LOCATING 4
3C5-24184-10-00
Unavailable
19
BAND
1UA-82591-00-00
Unavailable
20
MOLD, FUEL TANK
3C5-24188-00-00
Unavailable
21
WASHER, SPECIAL
3C5-24186-00-00
Unavailable
22
WASHER, PLATE
90202-10003-00
Unavailable
23
BOLT
90109-06084-00
Unavailable
24
WASHER PLATE 248217570000
90201-06074-00
Unavailable
25
SCREW(3XV)
90149-06298-00
Unavailable
26
SCOOP COMP, AIR 1
3C5-Y217W-90-00
Unavailable
27
GRAPHIC, SCOOP AIR SET 1
3C5-2137C-70-00
Unavailable
28
SEAL, AIR SHROUD 1
3C5-24125-00-00
Unavailable
29
SEAL, AIR SHROUD 2
3C5-24126-00-00
Unavailable
30
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
31
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
32
DAMPER, PLATE 3
3C5-2414K-00-00
Unavailable
33
DAMPER, PLATE 4
3C5-2414N-00-00
Unavailable
34
GROMMET(4BH)
90480-01559-00
Unavailable
35
SCOOP COMP, AIR 2
3C5-Y217X-90-00
Unavailable
36
. GRAPHIC, SCOOP AIR SET 2
3C5-2137D-70-00
Unavailable
37
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
38
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
39
GROMMET(4BH)
90480-01559-00
Unavailable
40
BOLT
90111-05011-00
Unavailable
41
CLIP(1JH)
90467-11106-00
Unavailable
42
NUT, S/L FLANGE
95607-05200-00
Unavailable
43
CLAMP(4KM)
90464-25217-00
Unavailable
44
CANISTER ASSY
3C5-24170-00-00
Unavailable
45
COVER, CANISTER
3C5-2419E-00-00
Unavailable
46
GROMMET(56R)
90480-15342-00
Unavailable
47
COLLAR(52E)
90387-063G3-00
Unavailable
48
BOLT, HEXAGON
97017-06025-00
Unavailable
49
WASHER(6TA)
92907-06600-00
Unavailable
50
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
51
CLAMP
90464-15014-00
Unavailable
52
PIPE 10
3C5-24321-00-00
Unavailable
53
PIPE 11
3C5-24322-00-00
Unavailable
54
PIPE 12
3C5-24323-00-00
Unavailable
55
PIPE 13
3C5-24324-00-00
Unavailable
