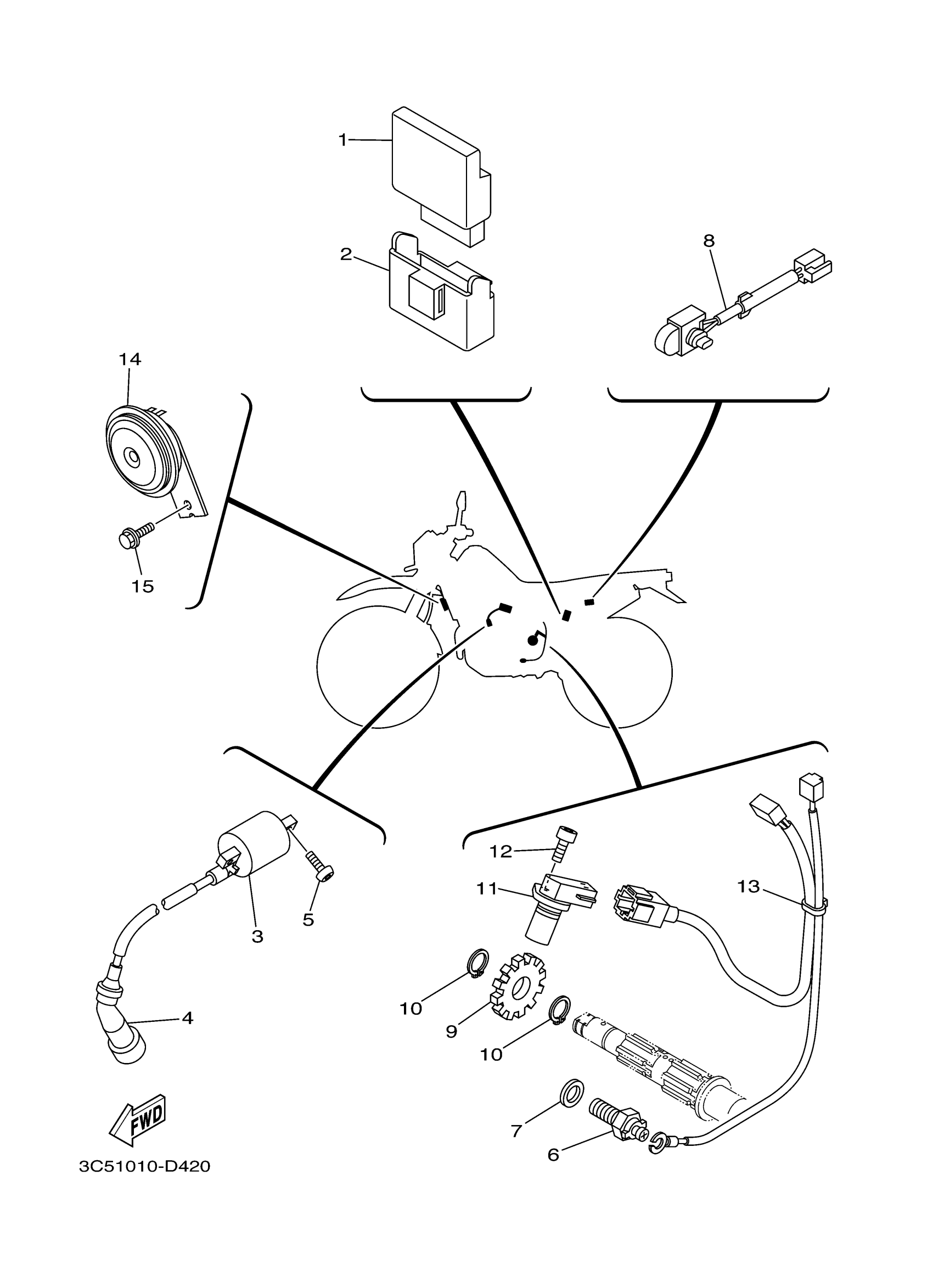

Yamaha XT250XC (XT250 CA) 3C59 2008 ELECTRICAL 2 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3C5-85540-10-00

$360.99

2

BAND

5XT-85546-00-00

Unavailable

3

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

4

PLUG CAP ASSY

3NS-82370-00-00

$37.99

5

BOLT

90111-06017-00

$5.49

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (1KH,1.0T)

90430-10148-00

$5.60

8

THERMO SWITCH ASSY

5XT-82560-00-00

Unavailable

9

ROTOR

3C5-8354W-00-00

Unavailable

10

CIRCLIP(1EY)

99009-17400-00

$4.73

11

SENSOR, SPEED

1S4-83755-01-00

Unavailable

12

BOLT (33M)

91312-06014-00

$5.60

13

WIRE, SUB LEAD

3C5-82309-00-00

Unavailable

14

HORN

3C5-83371-00-00

Unavailable

15

BOLT, FLANGE

95817-06010-00

$4.73
