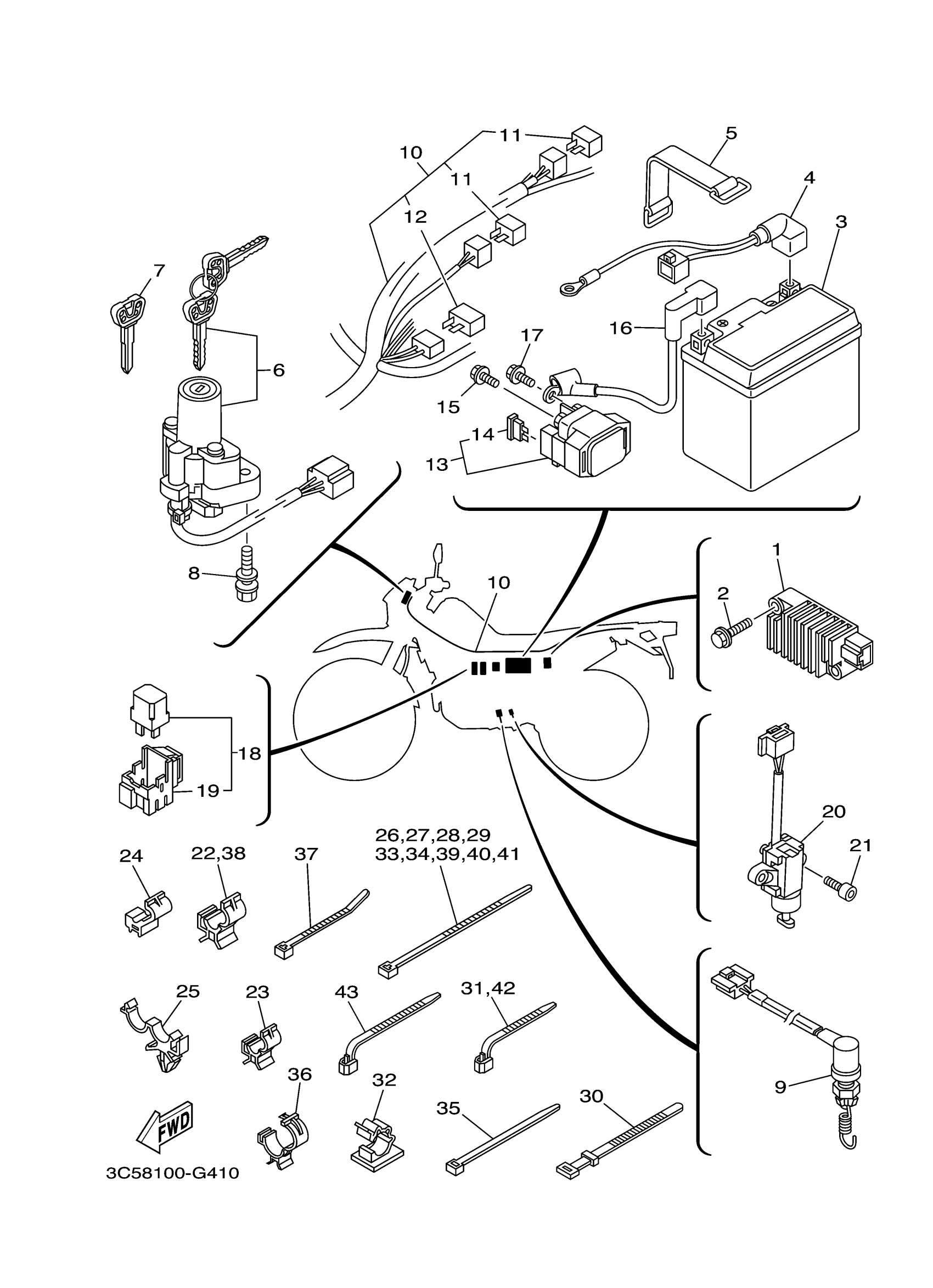

Yamaha XT250XC (XT250 CA) 3C59 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

Unavailable

2

BOLT, SMALL FLANGE

95027-06025-00

$4.16

3

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

Unavailable

4

WIRE, MINUS LEAD

5XT-82116-00-00

Unavailable

5

BAND, BATTERY

5JJ-82131-00-00

$13.49

6

MAIN SWITCH STEERING LOCK

3C5-82501-01-00

Unavailable

7

BLANK KEY

4BH-82511-09-00

$30.99

8

BOLT

90109-08196-00

$8.49

9

STOP SWITCH ASSY

5XT-82530-00-00

Unavailable

10

WIRE HARNESS ASSY

3C5-82590-20-00

Unavailable

11

DIODE ASSY

3WP-81980-00-00

$22.99

12

DIODE ASSY

4WA-81980-00-00

$29.99

13

STARTER RELAY ASSY (RC19-048)

5XT-81940-02-00

Unavailable

14

FUSE (20A)

2GV-82151-00-00

$5.49

15

BOLT, SMALL FLANGE

95027-06008-00

$7.99

16

WIRE, PLUS LEAD

5XT-82115-00-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06008-00

$7.99

18

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

19

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

20

SWITCH, SIDE STAND

5XT-82566-01-00

Unavailable

21

BOLT,SOCKET

91317-05014-00

Unavailable

22

CLAMP(4GY)

90464-10190-00

Unavailable

23

CLAMP(4GY)

90464-08189-00

Unavailable

23

CLAMP

90464-17007-00

Unavailable

24

CLAMP(4GY)

90464-05188-00

Unavailable

25

CLAMP

90464-16006-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

BAND

1UA-82591-00-00

Unavailable

28

BAND

1UA-82591-00-00

Unavailable

29

BAND

1UA-82591-00-00

Unavailable

30

BAND, SWITCH CORD

437-83936-11-00

Unavailable

31

CLAMP

90464-13077-00

Unavailable

32

CLAMP(4FM)

90464-13185-00

Unavailable

33

BAND

1UA-82591-00-00

Unavailable

34

BAND

1UA-82591-00-00

Unavailable

35

CLAMP

5Y9-12491-00-00

Unavailable

36

CLAMP(4GY)

90464-20191-00

Unavailable

37

CLAMP

90465-10098-00

Unavailable

38

CLAMP(4GY)

90464-10190-00

Unavailable

39

BAND

1UA-82591-00-00

Unavailable

40

BAND

1UA-82591-00-00

Unavailable

41

BAND

1UA-82591-00-00

Unavailable

42

CLAMP

90464-13077-00

Unavailable

43

CLAMP(4FM)

90464-15195-00

Unavailable
