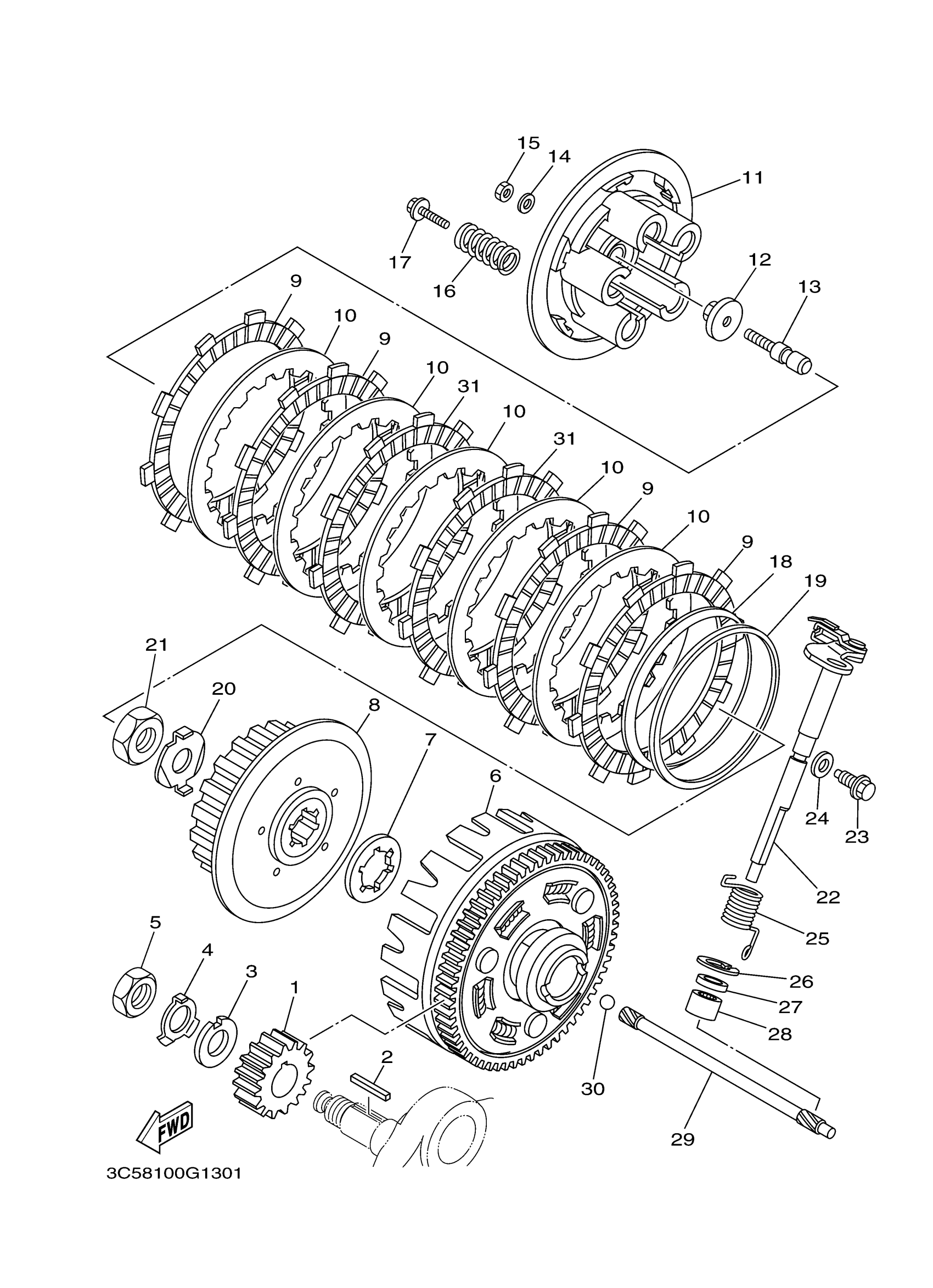

Yamaha XT250XC (XT250 CA) 3C59 2008 CLUTCH Diagram

GEAR, PRIMARY DRIVE

5XT-16111-00-00

Unavailable

KEY, STRAIGHT(3UR)

90282-05077-00

Unavailable

WASHER, CLAW(4GY)

90214-16063-00

Unavailable

WASHER, LOCK

90215-16293-00

$10.49

NUT

90170-16425-00

$9.49

PRIMARY DRIVEN GEAR COMP.

5XT-16150-00-00

Unavailable

PLATE, THRUST 1

30X-16154-00-00

$25.99

BOSS, CLUTCH

4GY-16371-01-00

Unavailable

PLATE, FRICTION

1KT-16321-00-00

$17.49

PLATE, CLUTCH 1

3XJ-16324-10-00

$13.49

PLATE, PRESSURE 1

4GY-16351-00-00

$64.99

PLATE, PUSH

1W1-16358-01-00

$23.99

ROD, PUSH 1

5XT-16356-00-00

$16.49

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

NUT, HEXAGON

95380-06600-00

Unavailable

SPRING, COMPRESSION (4H7)

90501-23598-00

Unavailable

SCREW, WITH WASHER (583)

90159-06010-00

Unavailable

SPRING, CLUTCH BOSS

3XV-16383-00-00

Unavailable

PLATE, SEAT

5NL-16384-00-00

Unavailable

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

PUSH LEVER ASSY

5XT-16380-00-00

Unavailable

BOLT

90109-08105-00

Unavailable

GASKET

90430-08119-00

Unavailable

SPRING, TORSION

90508-203B3-00

Unavailable

CIRCLIP(1EV)

99009-20500-00

Unavailable

OIL SEAL (4G0)

93102-12224-00

Unavailable

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

ROD, PUSH 2

4GY-16357-00-00

Unavailable

BALL (498)

93511-32027-00

Unavailable

PLATE, FRICTION

5DH-16321-00-00

Unavailable
