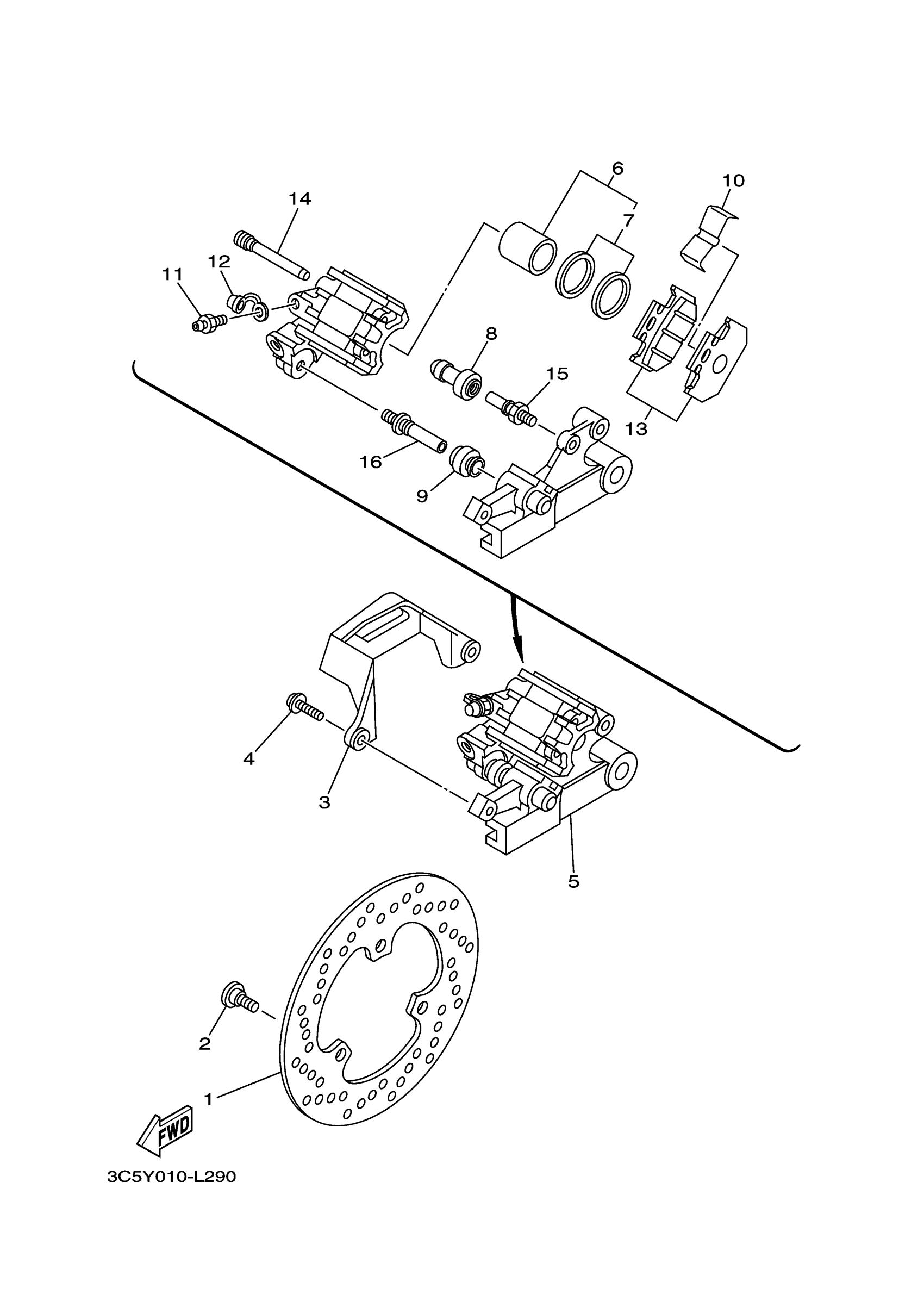

Yamaha XT250SC (XT250 CA) B1UR 2025 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

5XT-2582W-00-00

$97.08

2

BOLT

90109-08087-00

$2.47

3

PROTECTOR

4GY-27491-00-00

$49.55

4

BOLT, BUTTON

92014-06016-00

$5.75

5

CALIPER ASSY, REAR 2

3C5-2580W-10-00

Unavailable

6

PISTON ASSY, CALIPER

5XT-25802-50-00

$38.89

7

CALIPER SEAL KIT

3JD-25803-50-00

$13.40

8

BOOT 2

1UY-25937-51-00

$11.48

9

BOOT, CALIPER

3JD-25917-00-00

$7.03

10

SUPPORT, PAD

3SP-25919-51-00

Unavailable

11

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

12

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

13

BRAKE PAD KIT 2

3C5-25806-00-00

$39.24

14

PIN, PAD

3FV-25924-00-00

$18.82

15

BOLT

3SP-25914-51-00

$3.67

16

BOLT

3SP-25926-51-00

Unavailable
